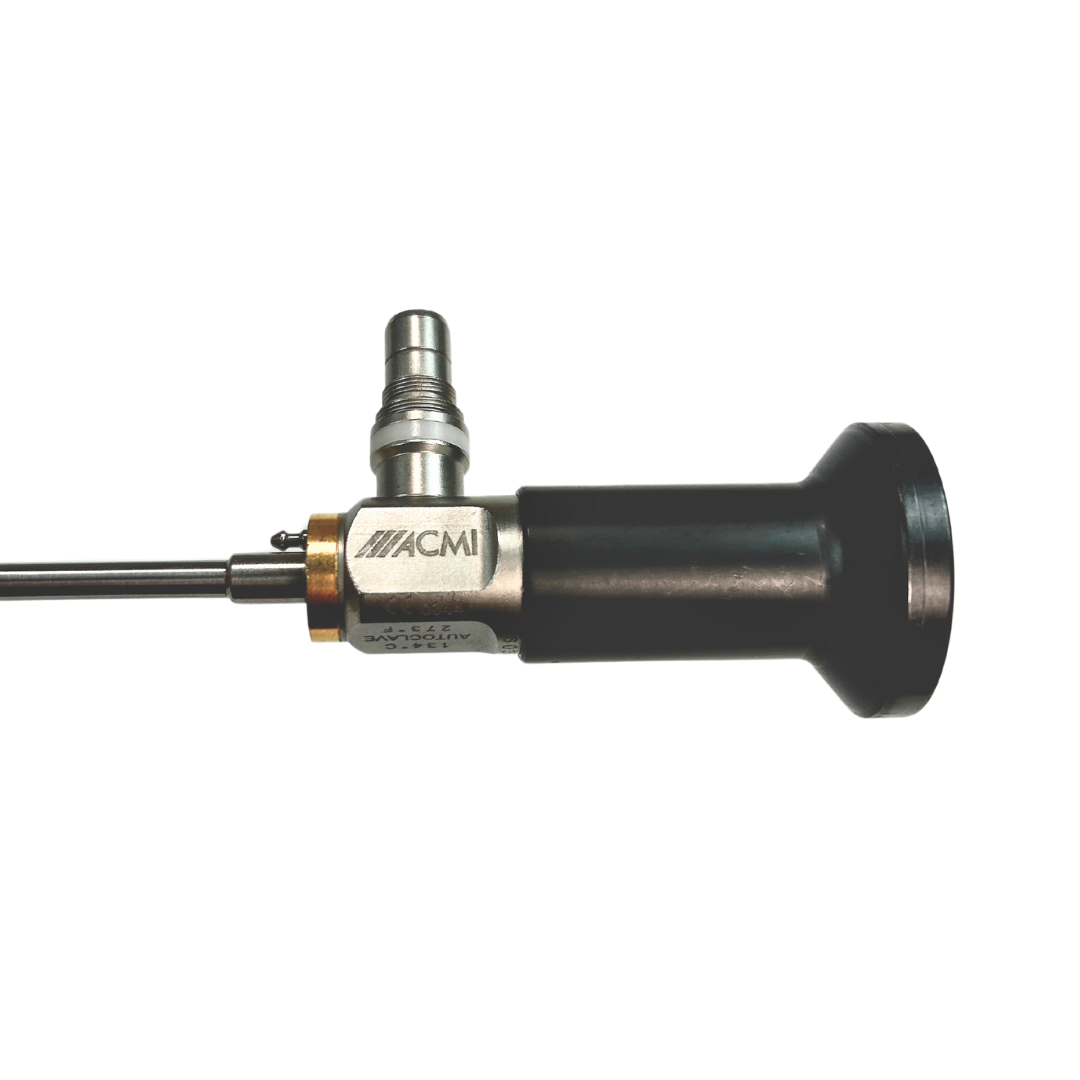

Complete M3-30A engraving and manufacturer markings
Complete M3-30A engraving and manufacturer markings
ACMI M3-30A
$689

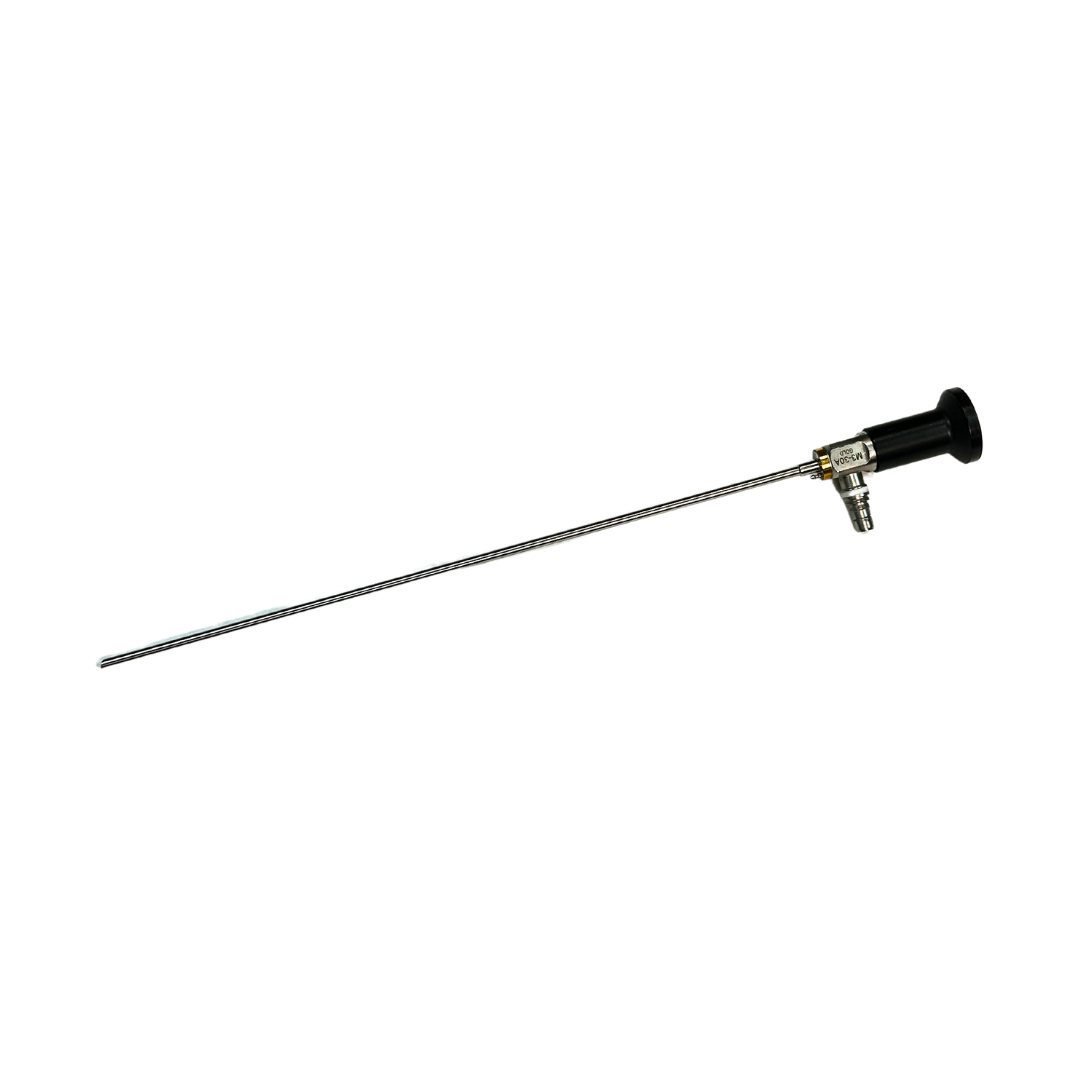

ACMI M3-30A — The is a reusable rigid cystoscope telescope commonly identified
as a 4 mm, 30-degree forward-oblique, approximately 30 cm autoclavable optical instrument.
Confirm the engraved model, optical condition, light-post connection, compatible sheath,
camera coupler and exact reprocessing instructions before ordering.
Explore Related
Related products, categories and research.
Urology/Renal/Nephrology
ACMI M3-30A for professional procurement
The ACMI M3-30A is designed to provide a 30-degree angled view through a rigid
endoscopic optical system. The forward-oblique viewing angle allows the operator to inspect areas
that are not directly aligned with the shaft while rotating the telescope within a compatible
sheath. Published product information identifies the telescope as a 4 mm instrument with an approximate
working length of 30 cm.
ACMIManufacturer / brand
In stockCurrent availability
B2BProfessional procurement
Product overview
Evaluate the exact ACMI M3-30A configuration
The ACMI M3-30A is designed to provide a 30-degree angled view through a rigid
endoscopic optical system. The forward-oblique viewing angle allows the operator to inspect areas
that are not directly aligned with the shaft while rotating the telescope within a compatible
sheath. Published product information identifies the telescope as a 4 mm instrument with an approximate
working length of 30 cm. Because the catalogue designation is linked to the M3 Gold family, the
complete engraving and manufacturer markings should be photographed before purchase.
A rigid cystoscope telescope contains a lens train, distal objective window, shaft, eyepiece or
camera-coupling interface and a fibre-optic illumination pathway. Damage to any one of these
elements can reduce image brightness, edge sharpness, colour rendition or orientation accuracy.
A telescope can therefore appear clean externally and still produce a cloudy, dark or distorted
image. Procurement should include a live optical test using a suitable camera or viewing system
and a compatible medical light source.
During image testing, inspect the centre and edges of the field for sharpness, internal haze,
black spots, moisture, debris, chipped lenses, colour shift and geometric distortion. Rotate the
scope to confirm that the 30-degree view behaves as expected and that the orientation is stable.
The distal tip should be examined for cracks, sharp edges, jagged metal, loose components or damage
around the objective window. FDA adverse-event records for the model family demonstrate why
careful receipt inspection of the distal tip is important even when no patient injury has
occurred.
Three steps before purchase
1
Confirm the exact unit
Match model/serial labels, condition and included configuration to the written quotation.
2
Review compatibility
Check accessories, software, power, facility and host-system requirements where applicable.
3
Approve delivery scope
Confirm packing, freight, insurance, documentation, warranty and commissioning responsibilities.
Product imagery
Review the product and supplied configuration
Reference images support model identification. The final quotation should match the exact unit, accessories and condition being supplied.
Key features
Product capabilities and procurement-relevant details
Product-specific facts are summarized for procurement review; configuration-sensitive items should be confirmed against the exact supplied unit.
Confirmed 30-degree direction of view
Confirmed 30-degree direction of view
Measured or documented 4 mm outer diameter and approximate 30 cm lengt
Measured or documented 4 mm outer diameter and approximate 30 cm length
Straight shaft without dents, bending, corrosion or deep scratches
Straight shaft without dents, bending, corrosion or deep scratches
Distal tip without sharp edges, cracks or loose components
Distal tip without sharp edges, cracks or loose components
Clear objective window and eyepiece without scratches or chips
Clear objective window and eyepiece without scratches or chips
Applications
Where this product can fit
Suitability depends on the exact configuration, professional use case, manufacturer instructions and destination-market requirements.
Professional procurement
Evaluate ACMI M3-30A for workflows that match the documented model, configuration and manufacturer instructions.
Replacement or expansion
Useful when matching an existing fleet, installed platform or facility requirement after compatibility has been confirmed.
International projects
Suitable for qualified procurement projects where destination regulations, installation and support requirements are reviewed in advance.
Technical evaluation
Compare specifications, accessories, condition and documentation before approving a high-value equipment purchase.
Technical specifications
Product data for purchasing review
Exact specifications can vary by revision, region and installed options. The serial-number-specific configuration and manufacturer documentation take precedence.
- Product
- ACMI M3-30A
- Brand
- ACMI
- SKU
- MED-M3-30A
- Category
- Medical Equipment, Medical Equipment > Urology/Renal/Nephrology
- Availability
- In stock
- Configuration
- Confirm exact supplied configuration on written quotation
Package and accessories
Confirm the complete supplied configuration
The final commercial offer defines what is included. For high-value or configuration-sensitive equipment, request an itemized packing list before payment.
Quotation should confirm
- Complete M3-30A engraving and manufacturer markings
- Confirmed 30-degree direction of view
- Measured or documented 4 mm outer diameter and approximate 30 cm length
- Straight shaft without dents, bending, corrosion or deep scratches
- Distal tip without sharp edges, cracks or loose components
- Clear objective window and eyepiece without scratches or chips
Condition and compatibility
- Current photographs should match the supplied unit.
- Model, serial and part-number labels should be readable.
- Required accessories and host-system compatibility should be confirmed.
- Service, maintenance or functional-test information should be reviewed where applicable.
- Power, plug, facility and installation requirements should match the destination.
Exact package contents and condition are controlled by the written quotation and order documentation.
Technical resources
Review authoritative documentation before purchase
Use manufacturer, regulatory and technical references to validate product-family information. The exact supplied unit still requires serial-specific verification.
Open device record
Technical documentation for product and compatibility review.
Open FDA record
Technical documentation for product and compatibility review.
Installation, shipping and handover
Support from quotation to delivery
Site readiness
Review power, space, environment, network, consumable or facility requirements where applicable.
Inspection coordination
Confirm exact-unit photographs, identification labels, condition and functional evidence before dispatch.
Global logistics
Coordinate export packing, insured freight and shipment documentation for approved destinations.
Handover support
Plan installation, commissioning, training or local technical support where required and available.
Buyer questions
Frequently asked questions
Answers distinguish product-family information from the serial-specific configuration that must be confirmed in the quotation.
What should be confirmed before ordering ACMI M3-30A?
Confirm the exact model and serial label, condition, included accessories, installed options or software where applicable, power requirements, documentation and the destination-country requirements shown in the written quotation.
Does every ACMI M3-30A have the same configuration?
No. Configuration can vary by production revision, installed options, accessories and prior service history. The serial-number-specific quotation and packing list should take precedence over generic product-family information.
Can ACMI M3-30A be shipped internationally?
International B2B shipment can be arranged subject to destination-country import rules, carrier restrictions and any product-specific transport requirements. Freight and insurance terms should be confirmed before payment.
Are accessories automatically included with ACMI M3-30A?
Only accessories itemized in the written quotation and packing list should be treated as included. Product photos can show optional or reference accessories that are not part of the supplied configuration.
What warranty applies to ACMI M3-30A?
Warranty coverage depends on the exact unit, condition and commercial offer. The applicable warranty period and coverage should be stated in the written quotation before purchase.
ACMIManufacturer / brand
Manufacturer information
ACMI product documentation
Review available manufacturer documentation, model labels, compatibility information and regional requirements before ordering. Manufacturer names and trademarks are used for product identification.
AI Robot Supplier advantages
One procurement partner from quotation to delivery
Exact-model details, configuration and documentation are reviewed before commercial confirmation.
Freight options, export packing and shipment documentation for approved destinations.
Support for configuration checks, installation planning and procurement documentation.
Written quotation, packing scope, delivery terms and warranty conditions before order approval.
Formal quotation
Request a destination-specific ACMI M3-30A quote
Include delivery country, quantity, required configuration and target purchase date.
