Autel EVO II Dual 640T Rugged Bundle V3

Description

Autel EVO II Dual 640T Rugged Bundle V3: Dual-Camera Thermal Platform for Enterprise Inspection and Public Safety Programs

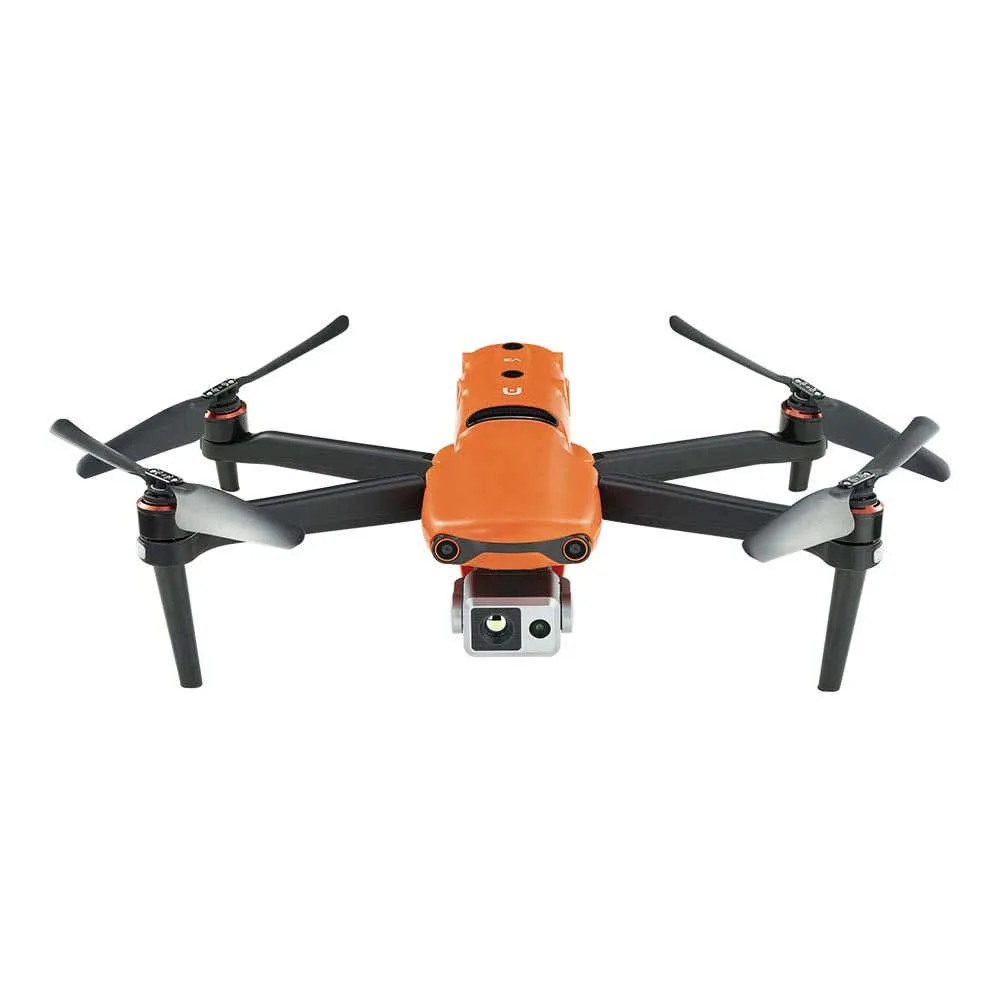

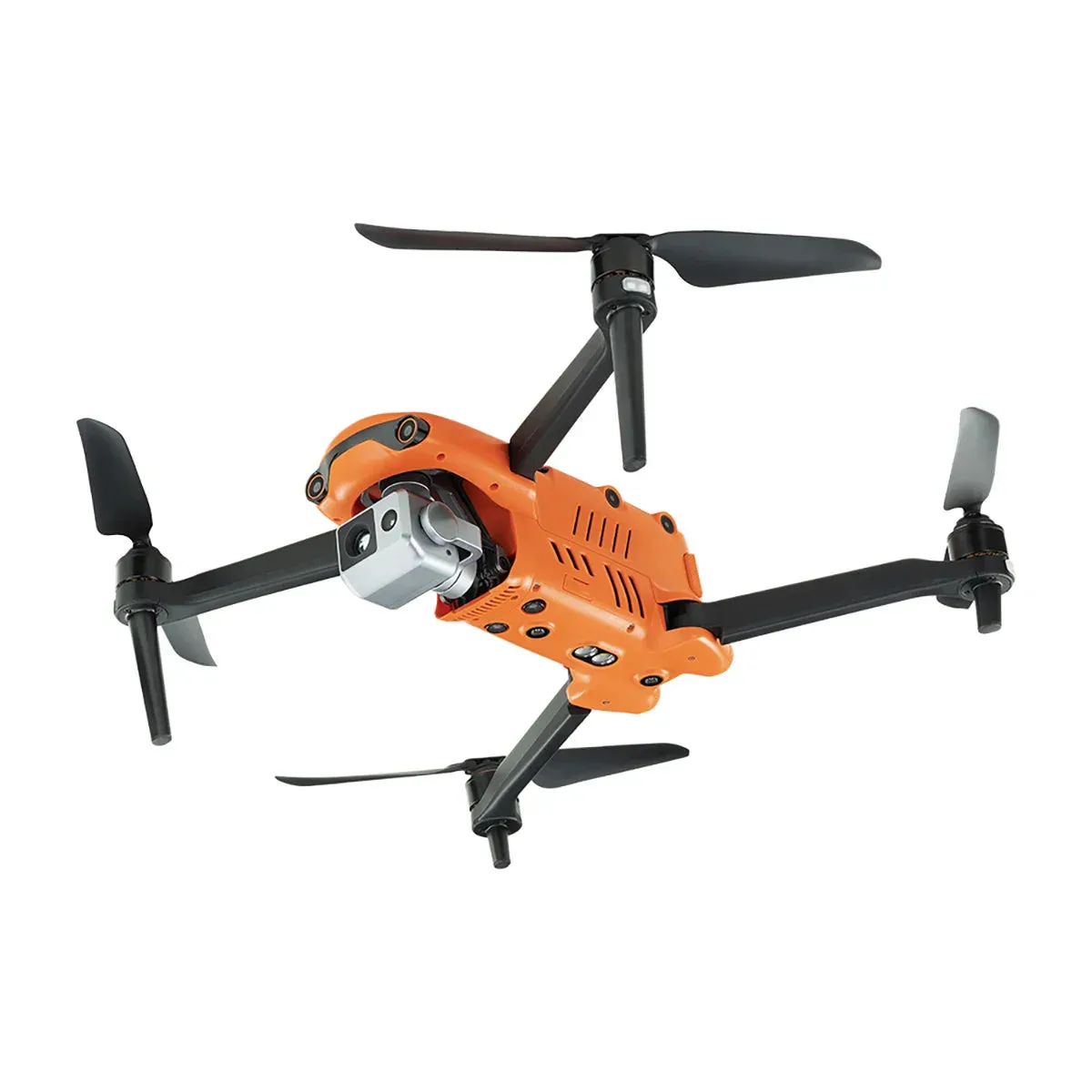

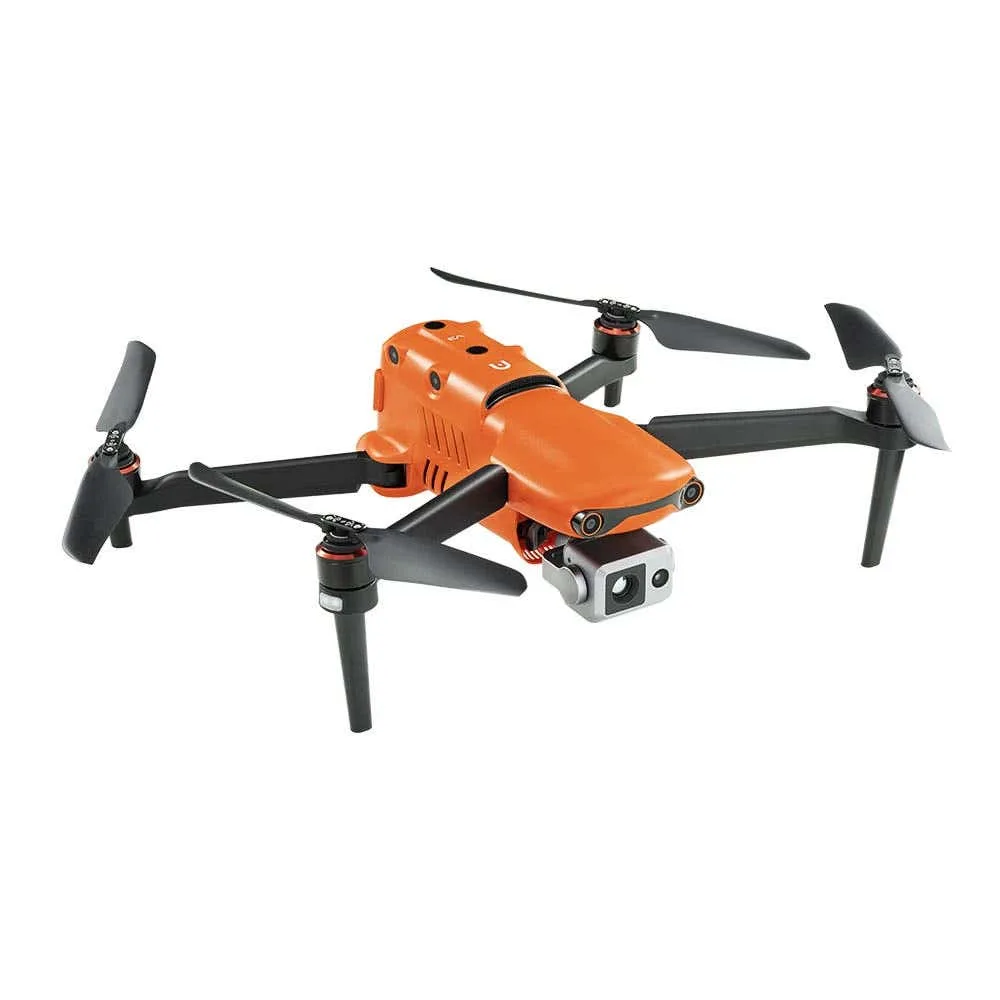

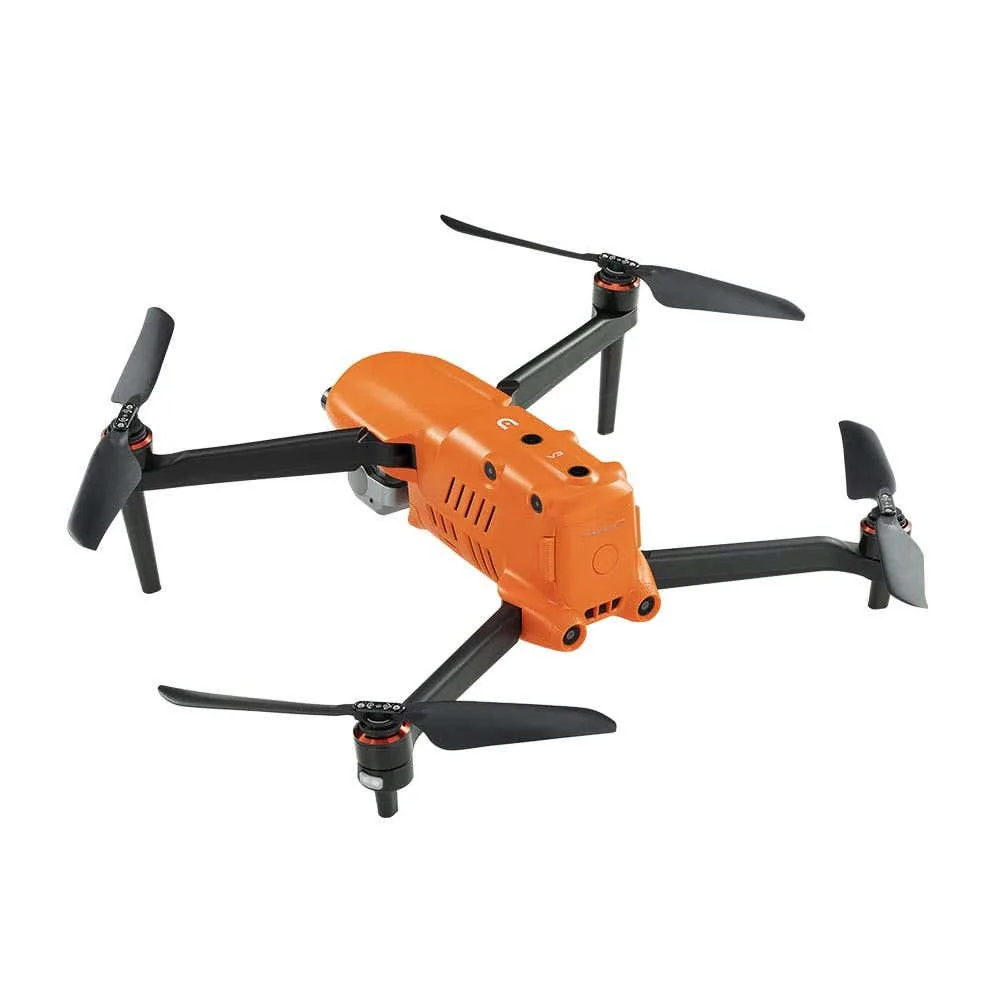

The Autel EVO II Dual 640T V3 is a compact foldable quadcopter built for enterprise programs that require simultaneous thermal and high-resolution visual imaging without the operational overhead of payload swaps between mission types. Its dual-camera payload pairs a 50MP RYYB primary visual camera with a 640×512 uncooled thermal sensor, delivering radiometric temperature measurement from -20°C to 550°C alongside 4K visual capture in a single deployment.
Key Features and Benefits
• 640×512 thermal camera: 25fps radiometric imaging with DRI ranges up to 2889m for trucks.
• 50MP RYYB primary camera: 0.8″ sensor delivers up to 40% more light sensitivity than RGB sensors.
• 360° obstacle avoidance: 19 sensor groups build 3D maps and plan paths in real time.
• Dynamic Track 2.1: tracks up to 64 objects simultaneously with accurate trajectory prediction.
• SkyLink 2.0 transmission: 15 km range with tri-band automatic frequency hopping for anti-interference.
• 10 thermal color palettes: including Ironbow, Rainbow, White Hot, and Heat Detection modes.
• 38-minute max flight time: two batteries included for sustained program-level field rotation.
• No fly zones enforced: no geofencing restrictions prevent takeoff during operational deployments.
• No forced updates required: aircraft operates without mandatory app or firmware update requirements.
• 45-second deployment: case to airborne in under one minute for rapid program-level response.
The Rugged Bundle V3 equips program operators with two flight batteries, a battery multicharger, a car charger, and the Autel Smart Controller V3, covering the full range of field charging scenarios out of the box. SkyLink 2.0 tri-band transmission with automatic frequency hopping reaches 15 km under FCC conditions, while Dynamic Track 2.1 maintains simultaneous lock on up to 64 tracked objects for programs running sustained target monitoring across complex or wide-area environments.
A Dual-Camera Payload That Removes the Swap From the Workflow
Enterprise inspection and public safety programs lose operational efficiency every time an aircraft has to land for a payload change between a visual survey and a thermal assessment. The EVO II Dual 640T V3 eliminates that step by flying both sensors simultaneously. The 50MP RYYB primary camera captures 4K HDR video and 8192×6144 stills using Moonlight Algorithm 2.0 for low-light noise reduction, while the 640×512 thermal sensor resolves temperature differences across a range from -20°C to 550°C with ±3°C or ±3% measurement accuracy. Picture-in-Picture mode keeps both feeds visible on the Smart Controller V3’s 7.9-inch display simultaneously, reducing the cognitive load on operators managing complex scenes while keeping the aircraft on task.
Compatibility and System Integration
• Autel Smart Controller V3: 7.9-inch, 2000-nit display with SkyLink 2.0 and IP43 rating (included).
• 2 x EVO II Smart Flight Battery: 7100mAh, 82Wh, 90-minute charge time (included).
• EVO II Battery Multicharger: simultaneous multi-battery charging for extended program rotations (included).
• EVO II Battery Car Charger: vehicle-based charging for distributed field operations (included).
• 32GB SD card: onboard storage for photo and video data capture (included).
• IRPC TOOL: free PC-based thermal analysis software for temperature measurement and reporting (included with purchase).
• Autel Explorer App: mission planning, flight control, and firmware management application (free download).
• Autel Care plans: optional extended warranty and service coverage for program fleets (sold separately).
• EVO II accessory ecosystem: additional batteries, propellers, and carry solutions (sold separately).
• Third-party Android apps: Smart Controller V3 supports installation of compatible Android applications (sold separately).
Applications and Use Cases
• Search and rescue programs: thermal DRI ranges detect persons at 542m and vehicles at up to 2889m.
• Firefighting and rescue operations: thermal imaging locates hotspots and monitors fire spread through smoke.
• Law enforcement fleets: Dynamic Track 2.1 maintains simultaneous lock on up to 64 targets for overwatch.
• Infrastructure inspection programs: thermal sensor identifies electrical faults and heat loss across distributed assets.
• Security and wide-area patrol: SkyLink 2.0 15 km range supports overwatch across large or remote program areas.
• Solar inspection programs: thermal imaging identifies underperforming cells and hot spots across large-scale arrays.
• Industrial and chemical plant inspection: dual payload assesses equipment conditions without entering hazardous areas.
The EVO II Dual 640T Rugged Bundle V3 is built for enterprise programs that need thermal detection, high-resolution visual capture, and omnidirectional obstacle avoidance in a compact, rapidly deployable platform. With two batteries, a multicharger, a car charger, and no geofencing restrictions, this bundle is configured for programs that operate across multiple sites and can’t afford downtime waiting on charging or software compliance.
Dronefly brings years of UAS industry experience to every customer relationship, with deep expertise in enterprise thermal platforms, payload integration, and program-level fleet support. When you source the Autel EVO II Dual 640T Rugged Bundle V3 through Dronefly, you gain a solutions partner invested in the long-term performance of your inspection or public safety program. Configure your system and order today at Dronefly.

Aircraft
• Takeoff weight: 1150 g
• Max takeoff weight: 2000 g
• Size (L×W×H): 230×130×108mm (folded), 457×558×108mm (unfolded)
• Wheelbase: 397 mm
• Maximum service ceiling altitude: 7000 m
• Max ascent speed: 8 m/s (Ludicrous)
• Max descent speed: 4 m/s (Ludicrous)
• Max horizontal flight speed: 20 m/s (Ludicrous)
• Max flight distance (no wind): 22 km
• Max angular velocity: 120°/s
• Max tilt angle: 33° (Ludicrous)
• Max flight time (no wind): 38 min
• Max hovering time (no wind): 33 min
• Operating temperature range: -10℃ ~ 40℃
• Maximum resistance to wind: Level 8
• Operating frequency: 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)
• Transmission power:
• 900M: FCC/ISED: ≤31dBm
• 2.4G: FCC/ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm
• 5.8G (non-Japan) ; 5.7G (Japan): FCC/ISED/SRRC/MIC: ≤33dBm, CE/RCM: ≤14dBm
• Hovering accuracy:
• Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally)
• Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
• GNSS: GPS/Beidou/Glonass/Gallieo
• Internal storage: 8GB
• SD storage: max. support 256GB (UHS-3 or Class 10)
Gimbal
• Gimbal: 3-axis stabilization
• Mechanical range: Tilt: -135° to +45°; Pan: -100° to +100°
• Controllable rotation range: Tilt: -90° to +30°; Pan: -90° to +90°
• Max control speed (Tilt): 300°/s
• Angular Vibration Range: ±0.005°
Remote controller and image transmission
• Operating frequency: 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)
• Transmission power:
• FCC: ≤33dBm
• CE: ≤[email protected], ≤[email protected]
• SRRC: ≤[email protected], ≤[email protected]/5.7G
• Max Transmission Distance (unobstructed, free of interference): FCC: 15km, CE: 8km
• Display screen: 2048×1536 60fps
• Battery: 5800mAh
• Operating time: ~3 hours (Max. Brightness), ~4.5 hours (50% Brightness)
• Charging time: 120 minutes
• Internal Storage: ROM 128GB
Sensing system
• Sensing system type: Omnidirectional sensing system
• Forward: Accurate measurement range: 0.5-18 m, Effective sensing speed: <12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°
• Backward: Accurate measurement range: 0.5-16 m, Effective sensing speed: <12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°
• Upward: Accurate measurement range: 0.5-10 m, Effective sensing speed: <5m/s, Viewing angle: Horizontal: 65°, Vertical: 50°
• Downward: Accurate measurement range: 0.5-10 m, Effective sensing speed: <5m/s, Viewing angle: horizontal: 100°, vertical: 80°
• Left and right: Accurate measurement range: 0.5-10 m, Effective sensing speed: 15)
• Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
• Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Thermal camera
• Sensor: Uncooled VOx Microbolometer
• Lens: FOV H33°V26°, Focal length 13mm
• Zoom: 1-16x
• Sensor resolution: 640×512
• Pixel size: 12μm
• Wavelength range: 8 – 14μm
• Temperature range: High gain mode: -20° to +150°, Low gain mode: 0° to +550°
• Temperature measurement accuracy: ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
• Accurate temperature measurement distance: 2-20 meters
• Video resolution: 640×512@30fps
• Video format: MOV / MP4 (Support H.264/H.265)
• Camera resolution: Infrared mode: 640×512, Picture-in-picture mode: 1920×1080, 1280×720
• Photo mode: Single shot, Burst shooting: 3/5 frames, 3 is the default, Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
• Photo format: JPG (with irg file)
Visible light camera
• Sensor: 1/2 inch CMOS; 48M effective pixels
• Lens: FOV: 79°, 35 mm format equivalent focal length: 25.6 mm, Aperture: f/1.8, Focus range: 0.5 m to infinity (with auto focus)
• ISO range: Video: 100-64000, Photos: 100-6400
• Shutter speed: Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates
• Zoom: 1-16x (up to 4x lossless zoom)
• Photo mode: Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
• Maximum photo size: 8192×6144（4:3）, 4096×3072（4:3）, 3840×2160（16:9）
• Image Format: JPG (default) / DNG / JPG+DNG
• Video format: MOV / MP4
• Video resolution: 3840×2160P60/P50/P48/P30/P25/P24, 2720×1528P60/P50/P48/P30/P25/P24, 1920×1080P60/P50/P48/P30/P25/P24
• Max bitrate: 120Mbps
• Supported file system: FAT32/exFAT
Battery
• Capacity: 7100 mAh
• Voltage: 11.55 V
• Battery type: LiPo 3S
• Energy: 82 Wh
• Weight: 365 g
• Charging temperature range: 5℃ to 45℃
• Storage temperature and humidity: -10~30℃, 65±20%RH
• Recommended storage temperature: 22-28℃
• Max charging power: 93W
• Charging time: 90 minutes
Charger
• Input: 100-240 V, 50/60 Hz, 1.5A
• Output: 13.2 V ⎓ 5 A, 5V⎓3A, 9V⎓2A, 12V⎓1.5A
• Voltage: 13.2±0.1V
• Rated power: 66W
Multi-Charger
• Voltage: 13.2 V
• Charging temperature range: 5℃ to 45℃
