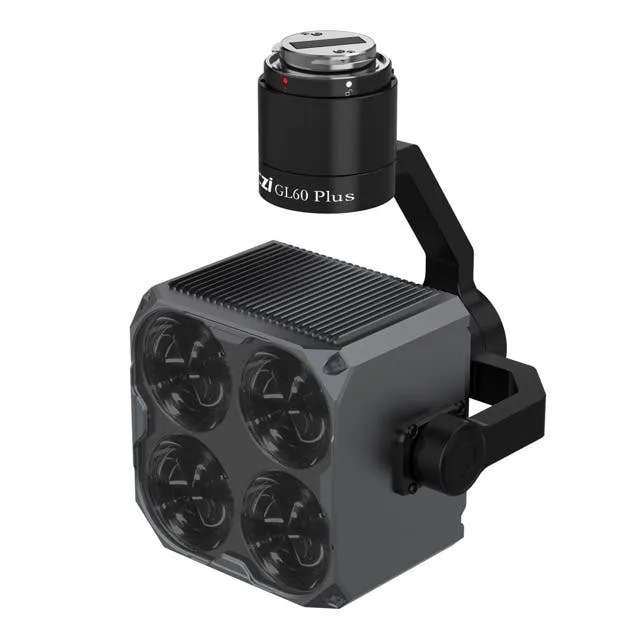

CZI GL60 Plus SDK Gimbal Spotlight for DJI M300/M350/M400 RTK

Description

CZI GL60 Plus Gimbal Spotlight for DJI M300/M350/M400 RTK: High-output optical illumination for enterprise missions
The CZI GL60 Plus delivers a high-intensity, gimbal-stabilized spotlight designed for precision illumination in enterprise operations. Built for the DJI M300, M350, and M400 RTK platforms, it outputs up to 120 W of LED power and delivers 24 lux of ground illumination at 100 meters.
The GL60 Plus features linear brightness adjustment, no-reflector optical design, and a fully sealed 750 g housing for reliable performance in night-time search, inspection, and emergency tasks.
High-precision illumination features
• High-power LED module: Delivers strong output for night-time operational visibility.
• Linear dimming control: Adjusts brightness precisely for varied illumination needs.
• No-reflector optics: Eliminates secondary spots for uniform beam consistency.
• Strong-light strobe mode: Provides signaling visibility for emergency field operations.
• Four-lens optical set: Enhances accuracy and clarity through focused illumination.
• 15-degree luminous angle: Produces concentrated light for long-range targeting accuracy.
• Fully sealed construction: Protects components for reliable mission performance.
• Lightweight 750 g design: Reduces aircraft load and maximizes hover time.
Precision optical engineering for controlled mission lighting
Equipped with four sets of imaging optical lenses, the GL60 Plus produces a 15-degree uniform beam without secondary sub-spots. Its reflector-free design reduces brightness loss and maintains clean, focused illumination ideal for low-light inspection and search tasks.
Linear LED dimming allows operators to tailor output while preserving clarity, while a strong-light strobe mode supports emergency signaling and orientation indication during critical deployments.
Lightweight gimbal design optimized for flight endurance
At only 0.7 kg, the GL60 Plus minimizes impact on aircraft stability and hover duration. Its fully sealed construction enhances durability in demanding environments, while SkyPort V2.0 ensures secure installation and stable power delivery.
Available in both PSDK 17 V + OSDK 24 V and PSDK 17 V configurations, it supports up to 128 W total power for high-output visibility during enterprise operations.
Integration with DJI enterprise workflows
• Compatible with DJI M300, M350, and M400 RTK platforms.
• Connects via DJI SkyPort V2.0 for secure mounting and power supply.
• Supports PSDK 17 V + OSDK 24 V or PSDK 17 V power modes.
• Compact 126×131×167 mm size supports flexible operational setups.
• Functions as a dedicated lighting payload for enterprise night missions.
Professional lighting applications
• Search-and-rescue operations: Illuminate wide terrain for locating missing individuals.
• Night inspection tasks: Provide focused light for detailed structural assessments.
• Law enforcement missions: Deliver controlled visibility during tactical operations.
• Emergency response support: Improve scene awareness in low-light environments.
• Infrastructure surveys: Illuminate components for nighttime inspection workflows.
• Environmental monitoring: Light target areas during nocturnal field assessments.
• Utility maintenance: Assist inspection teams with concentrated beam visibility.
• Training exercises: Simulate real-world nighttime mission scenarios effectively.
Built for professional operations
The GL60 Plus combines optical precision, high-intensity output, and lightweight engineering to enhance nighttime mission capability for DJI enterprise aircraft. With a sealed housing, linear dimming, and uniform beam projection, it supports critical operations requiring reliable, high-clarity illumination. Purpose-built for the M300, M350, and M400 RTK series, it offers consistent performance in demanding professional environments.
Available now from DSLRPros. Purchase today to equip your team with advanced nighttime operational lightin

• Model: GL60 Plus
• Electrical interface: DJI SkyPort V2.0
• Weight: 750 g
• Dimensions: 126 × 131 × 167 mm
• FOV: 15°
• Supply voltage: PSDK 17V + OSDK 24V / PSDK 17V
• Total power: 128 W / 68 W
• LED power: 120 W / 60 W
• Color temperature: 5000–6000 K
• Luminous flux: 13,400 lm ±3% / 8,000 lm ±3%
