DJI Zenmuse P1

Description

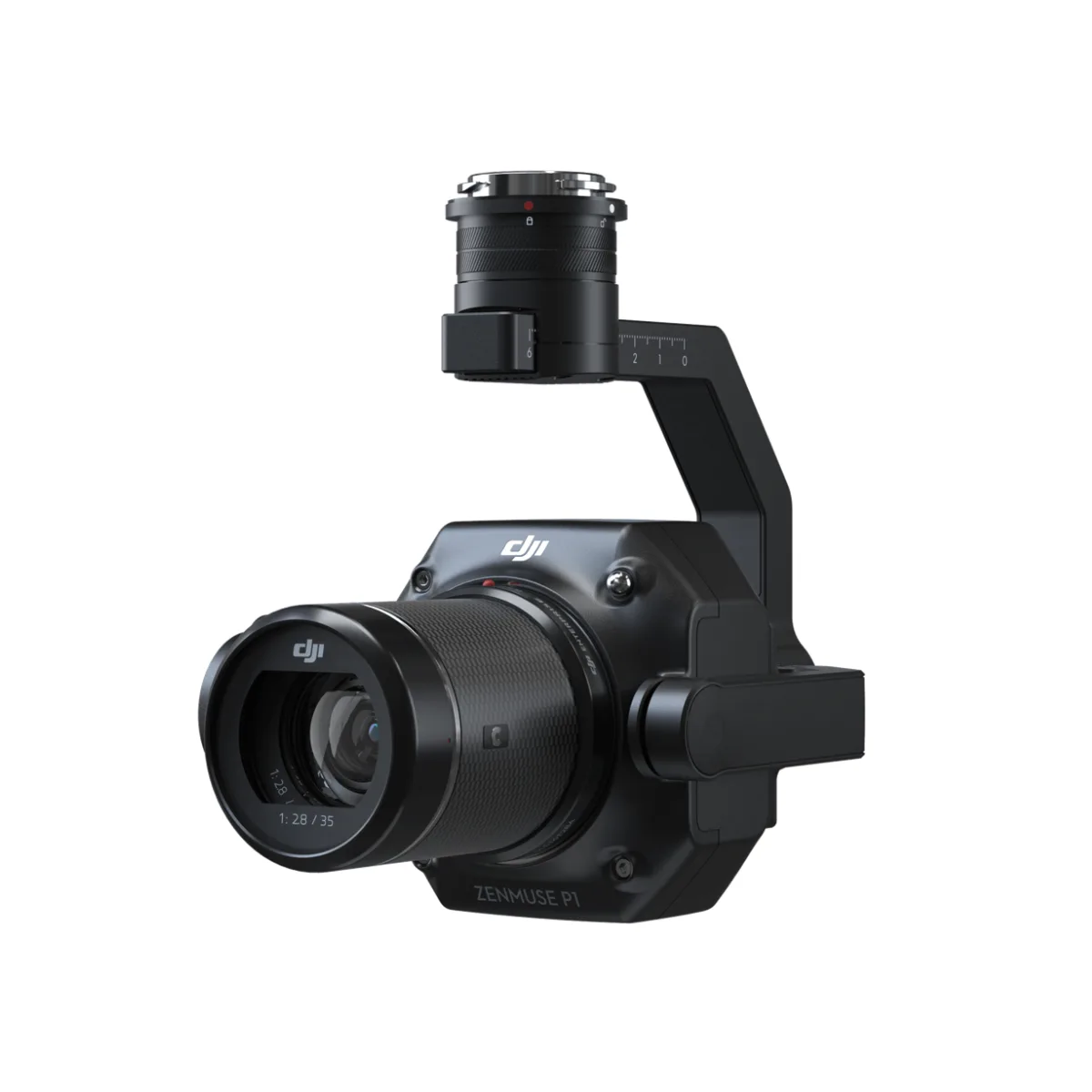

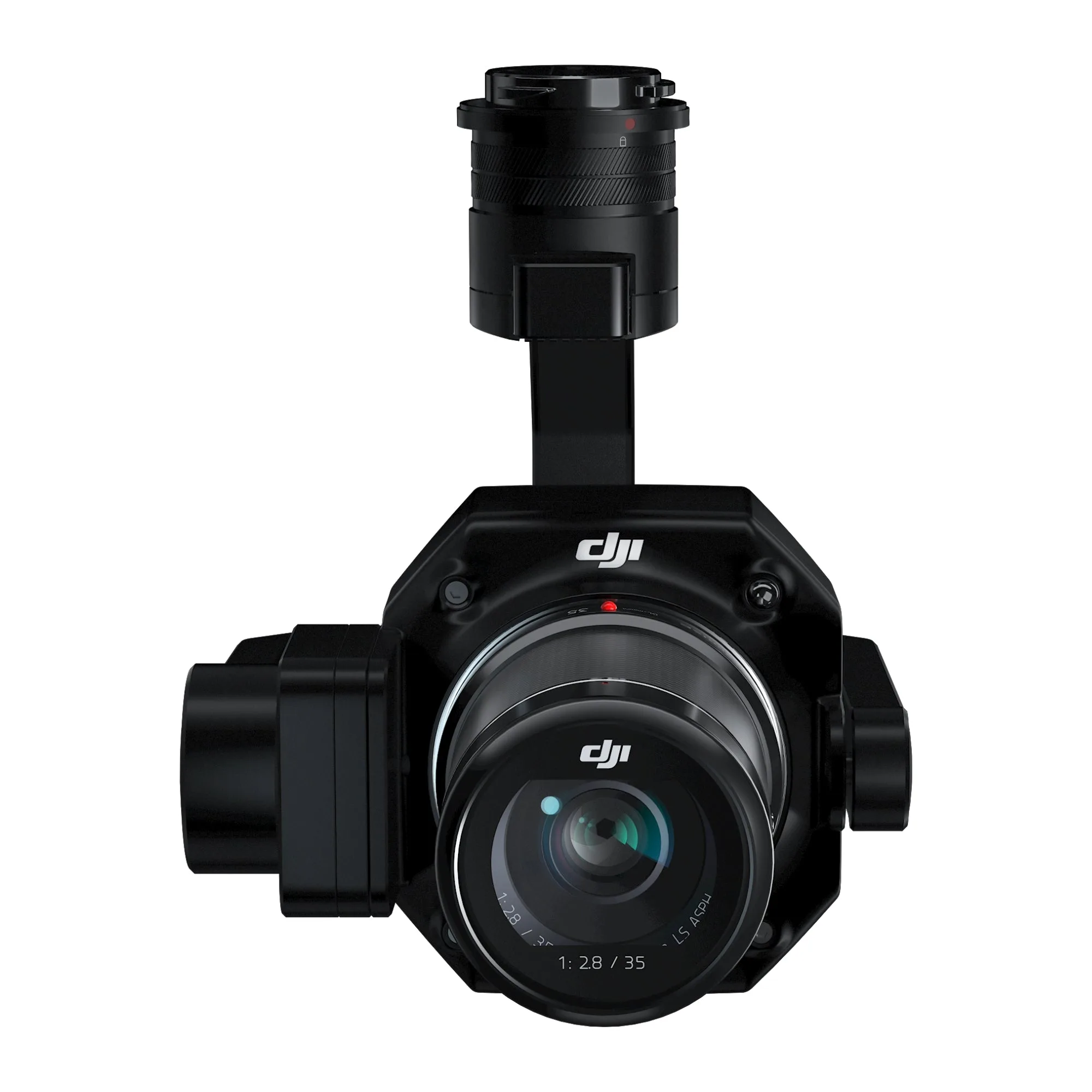

DJI Zenmuse P1 Payload for Photogrammetry and Surveying
The DJI Zenmuse P1 is a 45MP full-frame photogrammetry camera designed for professional mapping, modeling, and surveying. Built for seamless integration with DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK drones, the P1 delivers fast, accurate results with centimeter-level precision.
It supports real-time RTK alignment, smart oblique image capture, and efficient post-processing through DJI Terra.
Key Features of the Zenmuse P1
• Precision Without GCPs: Achieve horizontal accuracy of 3 cm and vertical accuracy of 5 cm for dependable results.
• Enhanced Coverage: Survey up to 3 km² in a single flight, maximizing productivity.
• Unrivaled Imaging Power: Capture stunning detail with a 45MP full-frame sensor.
• Stable Operation : Utilize a 3-axis stabilized gimbal with Smart Oblique Capture for smooth functionality.
• Fast Shutter Response : Global mechanical shutter captures crisp visuals at 1/2000 seconds.
• Perfect Synchronization: TimeSync 2.0 aligns all modules with microsecond precision.
DJI Zenmuse P1 Camera Specs
Feature | Specification
Sensor Type | 45MP Full-frame CMOS
Pixel Size | 4.4μm
Lens Mount | DJI DL Mount
Supported Lenses | 24mm, 35mm, 50mm fixed-focus
Shutter Type | Global mechanical shutter
Max Shutter Speed | 1/2000s
Capture Rate | One image every 0.7 seconds
Data Sync | TimeSync 2.0
Compatible Software | DJI Terra
Compatible Drones | M400, M350 RTK, & M300 RTK
The Ultimate Tool for Photogrammetry Experts
Streamlined Efficiency: The Zenmuse P1’s full-frame sensor minimizes noise and improves sensitivity, allowing it to capture a photo every 0.7 seconds. Covering up to 3 km² in one mission, it redefines large-scale surveying.
Exceptional Accuracy: With a global mechanical shutter and TimeSync 2.0, the P1 ensures precise data alignment across all modules. Real-time position and orientation compensation delivers centimeter-level accuracy.
Unmatched Versatility: Outfit the 3-axis stabilized gimbal with 24/35/50mm lenses to create 2D maps, 3D models, and detailed reconstructions. Smart Oblique Capture optimizes workflows by automating essential image angles.
Performance That Covers It All – Full-Frame Camera
• High-Resolution Sensor: The 45MP full-frame sensor with 4.4µm pixel size ensures superior image clarity.
• Extended Operation : Low-noise imaging extends flight duration, capturing data for longer periods.
• Rapid Imaging: Capture photos every 0.7 seconds for high-speed data acquisition.
• Precision Alignment: TimeSync 2.0 ensures flawless synchronization of the camera, RTK module, flight controller, and gimbal.
Adaptability at Its Finest – Fixed-Focus Lens Options
• Global Mechanical Shutter : Achieve distortion-free images with a shutter speed of 1/2000 seconds.
• Versatile Lens Compatibility : Use 24mm, 35mm, and 50mm lenses with DJI DL mounts to tailor your setup.
• Microsecond Timing : Median exposure pulse ensures precise data capture.
Compatible Drones and Enterprise Use

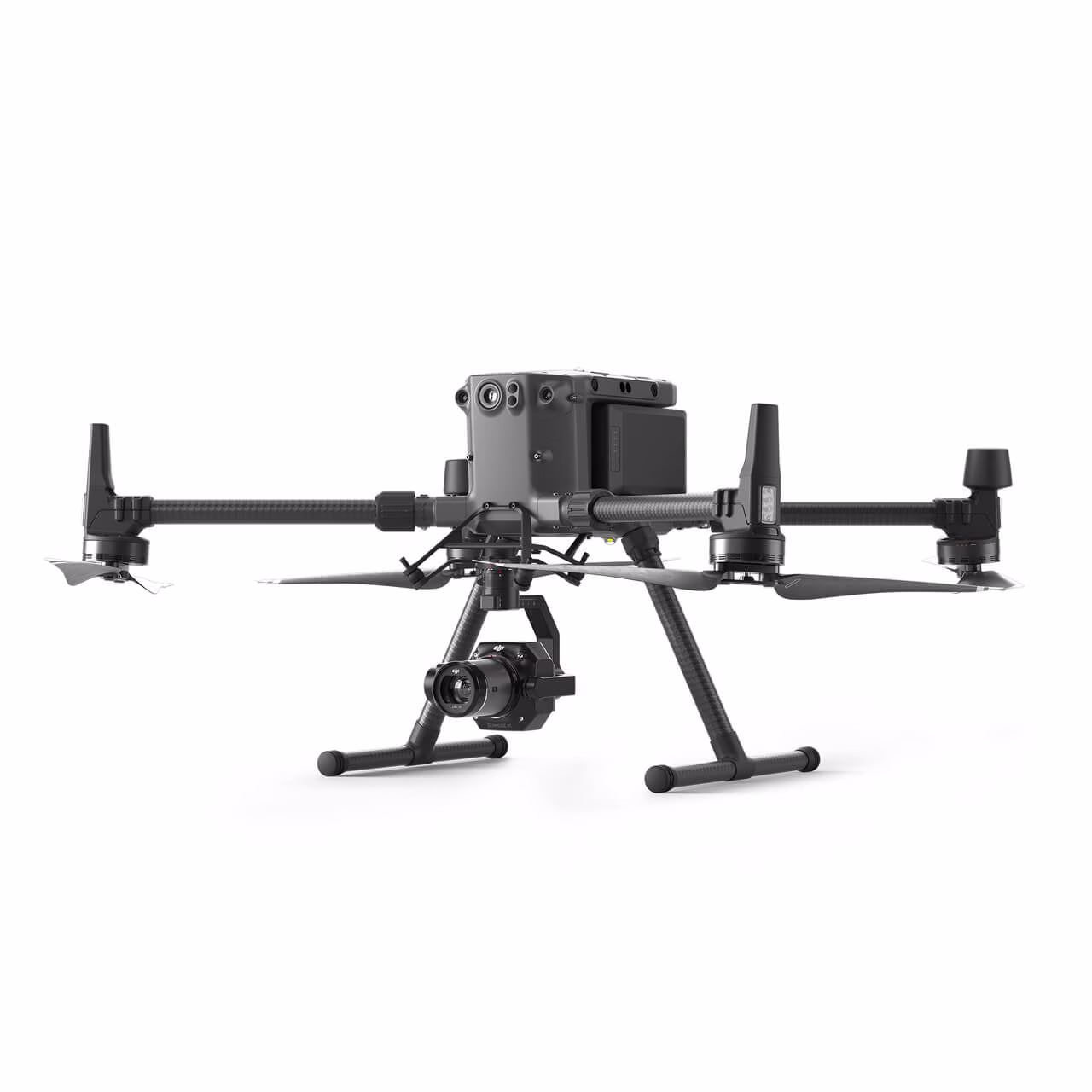

The Zenmuse P1 is fully compatible with:
• DJI Matrice 300 RTK
• DJI Matrice 350 RTK
• DJI Matrice 400
All these drone systems use DJI Pilot 2 and DJI Terra for full integration.
Need to complete your payload setup? Browse our DJI Matrice drones and Zenmuse payloads .
Smart Oblique Capture and Efficiency Features
The P1’s Smart Oblique Capture rotates the camera during flight to collect only the images needed for reconstruction.
• Covers up to 7.5 km² per day
• Reduces post-processing by 20–50%
• Saves onboard storage and sorting time
The P1 also:
• Tags every image with RTK and orientation metadata
• Associates output with mission names and timestamps
• Stores metadata MRK files with geolocation and camera details
This feature is built for urban planning, cadastral mapping, and detailed 3D reconstruction.
Mission Modes and Applications
Use the DJI Zenmuse P1 for a range of photogrammetry tasks:
2D Orthomosaic Mapping
• Capture flat, high-resolution maps without GCPs.
• Ideal for medium to large land surveys.
3D Oblique Modeling
• Automated angled image capture.
• Best for urban planning and smart city modeling.
High-resolution Reality Modeling
• Scan vertical surfaces and complex structures.
• Useful for geology, historical preservation, and engineering.
Real-time Mapping
• Use DJI Terra on-site to check results.
• Enables faster decision-making in the field.
Field Verification Tools
Avoid re-flights with built-in verification options:
• RTK Accuracy Check Confirm GNSS lock and satellite data.
• Image Positioning Data Review captured angles, geotags, and coverage.
• Instant Playback Spot-check coverage and positioning before leaving the site.
Use Cases for the Zenmuse P1
Surveying and Mapping
• Produce orthomosaics and elevation models without ground control points
• Cover large areas with fewer flights
Construction and Infrastructure
• Verify grade and volume
• Capture bridge, road, or structure images
Urban and Land Planning
• Model dense environments for smart cities
• Document boundary and parcel data
Utilities and Energy
• Capture top-down and oblique imagery of powerlines and substations
Environmental and Geological Work
• Map erosion, elevation, and ecological zones
• Document terrain for conservation or hazard mitigation
Cultural Preservation
• Build 3D reconstructions of historical and geological sites
Need help integrating the DJI Zenmuse P1 into your operations? Explore the full Zenmuse payload collection , DJI Matrice drones , and drone accessories to build your complete aerial platform.
Talk to an expert to get started.

General
• Product Name: Zenmuse P1
• Dimensions: 198 × 166 × 129 mm
• Weight: Approx. 800 g
• Power Consumption: 20 W
• Ingress Protection Rating: IP4X
• Supported Aircraft: Matrice 300 RTK; Matrice 350 RTK; Matrice 400
• Operating Temperature Range: −20°C to 50°C (−4°F to 122°F)
• Storage Temperature Range: −20°C to 60°C (−4°F to 140°F)
• Absolute Accuracy: Horizontal 3 cm; Vertical 5 cm (mapping mission conditions)
Camera
• Sensor Size (Still): 35.9 × 24 mm (full-frame)
• Sensor Size (Video Area): 34 × 19 mm
• Effective Pixels: 45 MP
• Pixel Size: 4.4 μm
• Supported Lenses: DJI DL 24mm F2.8 LS ASPH (84° FOV); DJI DL 35mm F2.8 LS ASPH (63.5° FOV); DJI DL 50mm F2.8 LS ASPH (46.8° FOV)
• Photo Size: 3:2 (8192 × 5460)
• Operation Modes: Photo, Video, Playback
• Minimum Photo Interval: 0.7 s
• Shutter Speed: Mechanical 1/2000–1 s (aperture ≤ f/5.6); Electronic 1/8000–1 s
• Aperture Range: f/2.8–f/16
• ISO Range: Photo 100–25600; Video 100–25600
Video
• Video Format: MP4, MOV
• Video Resolution: 1920 × 1080 (16:9); 3840 × 2160 (16:9, 35 mm lens only)
• Frame Rate: Up to 60 fps
Storage
• Supported SD Cards: UHS-I or above; up to 512 GB
• Stored File Types: Photos; GNSS raw observation data; image log files
Gimbal
• Stabilization System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: ±0.01°
• Mount: Detachable DJI SKYPORT
• Mechanical Range: Tilt −130° to +40°; Roll −55° to +55°; Pan ±320°
