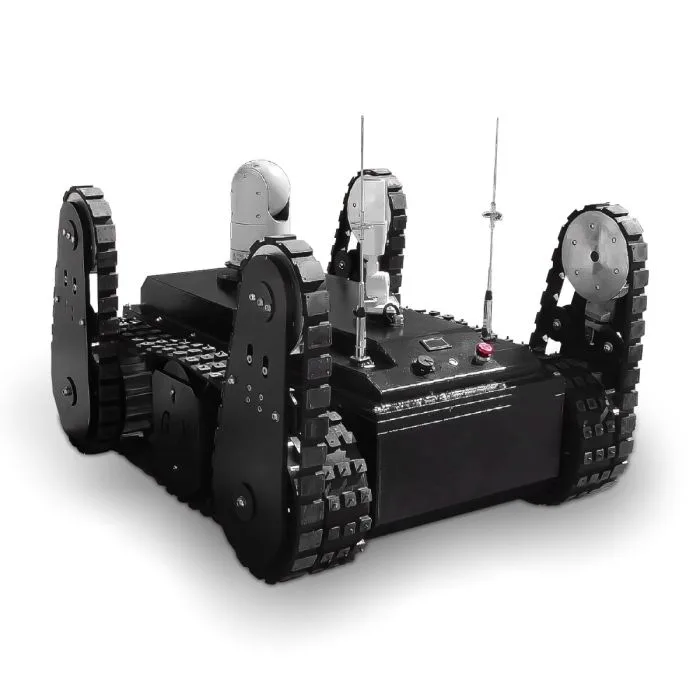

Guo Xing Tracked Robot Chassis Platform (PS1000)

Description

The double swing arm robot chassis should have the ability to efficiently cross obstacles and ditches for non-structural road conditions, and can swing part of the arm separately to complete climbing and crossing. It is widely used in military EOD rescue and other fields. Expand functionality: Development of special-purpose robots for firefighting inspection, military rescue and bomb disposal, specialized filming, and special transportation. Configuration: External dimensions Open: 1580770660, Folding: 970770660, Drive speed 0~1.2m/s, IP level IP67, Total weight 210kg, Climbability 35°, Vehicle material Aluminium alloy, Load weight 100kg, Shock absorption system Independent on left and right 6 shock absorbers, Track material Rubber embedded with metal and Kevlar fibers, Maximum obstacle crossing 300mm, Rated torque 82NM, Rated power 1000w2, Motor 48V DC brushless motor. (PS1000)
