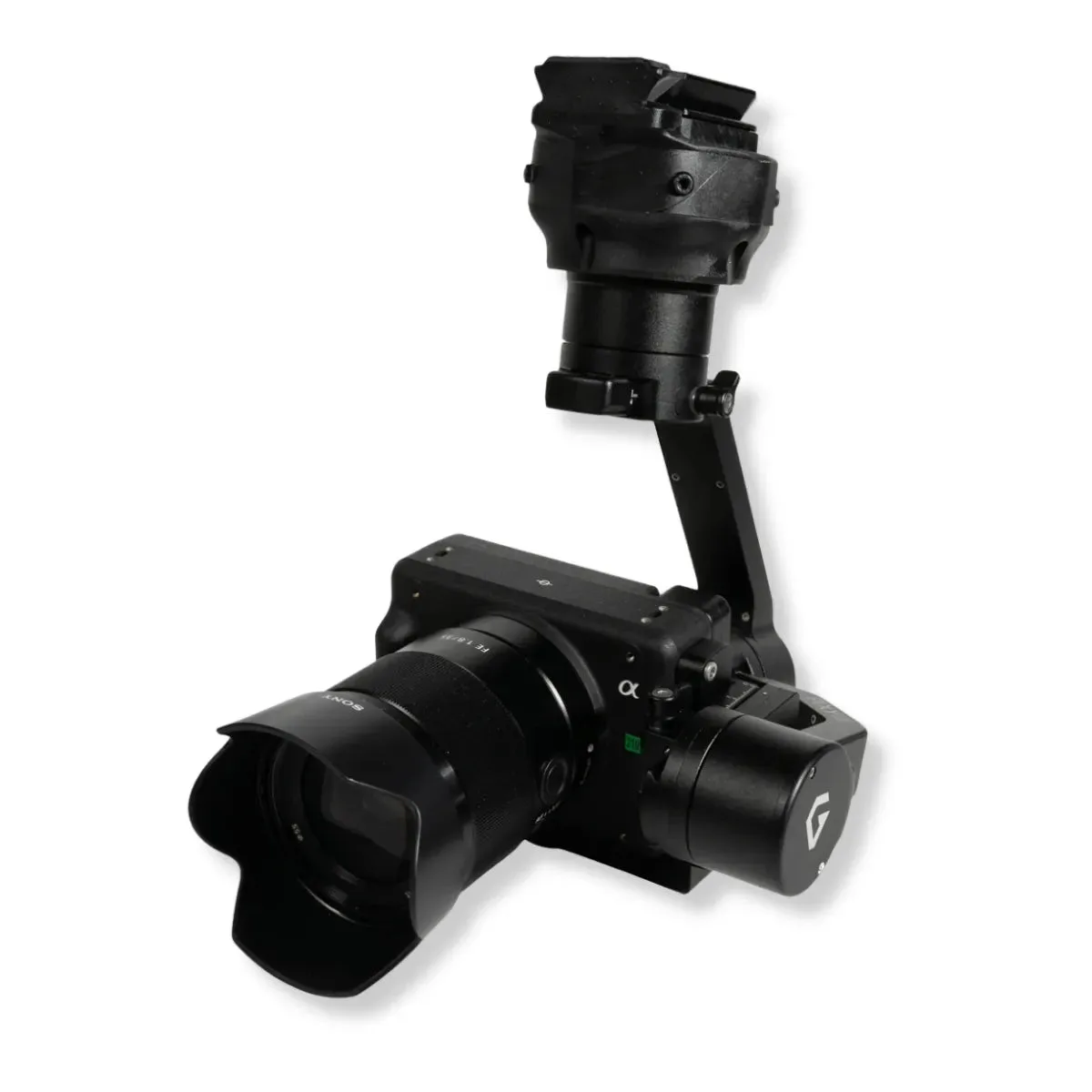

Inspired Flight Sony ILX-LR1 Payload for IF1200

Description

Inspired Flight Sony ILX-LR1 Payload for IF1200: Full-frame aerial imaging for heavy-lift enterprise missions
The Inspired Flight Sony ILX-LR1 Payload for IF1200 brings Sony’s industrial full-frame imaging platform to heavy-lift aerial operations where coverage, precision, and endurance are critical. Centered around a 61MP back-illuminated Exmor R CMOS sensor and powered by the BIONZ XR processing engine, the ILX-LR1 delivers exceptional still image detail and UHD 4K video performance. Its compact, viewfinder-less design, interchangeable Sony E-mount lens support, and external DC power input make it well suited for large-area surveying, high-altitude mapping, and extended inspection missions flown on the IF1200 platform.
Core features and system highlights
• 61MP full-frame sensor captures ultra-detailed imagery across large areas
• BIONZ XR processor delivers low-noise output with wide dynamic range
• Sony E-mount supports interchangeable professional full-frame lenses
• UHD 4K video recording supports detailed inspection documentation workflows
• Mechanical and electronic shutters enable precise exposure control
• ISO range from 100–32000 adapts to diverse lighting conditions
• Lightweight 243 g payload preserves IF1200 endurance and efficiency
• External DC power input supports long-duration flight operations
Imaging performance for wide-area data acquisition
The ILX-LR1’s full-frame Exmor R CMOS sensor resolves fine surface detail required for photogrammetry, inspection, and mapping at scale. The BIONZ XR engine provides realistic color reproduction, low-noise performance, and wide dynamic range across ISO values from 100 to 32000. Mechanical and electronic shutter options support accurate exposure during high-altitude flight, while 4:3 still image capture aligns with professional surveying standards. Interchangeable E-mount lenses allow operators to select focal lengths optimized for altitude, coverage, and ground sampling distance.
Advantages when deployed on the IF1200 platform
Paired with the IF1200, the ILX-LR1 benefits from heavy-lift capacity and extended flight endurance, enabling efficient coverage of large operational areas. Internal UHD 4K recording up to 59.94 fps supports detailed visual documentation, while micro-HDMI output enables live monitoring or external recording. Sony’s Camera Remote SDK allows full remote control of camera settings, shutter, and live view, supporting synchronized data capture workflows. External DC power eliminates battery swaps, improving efficiency during long survey and inspection missions.
Platform compatibility and system integration
• Designed for Inspired Flight IF1200 aircraft integration
• Sony E-mount enables flexible professional lens configurations
• micro-HDMI output supports external monitoring or recording solutions
• USB-C interface supports camera control and data transfer
• UHS-II SD card slot supports high-speed onboard storage
Professional application scenarios
• Large-area surveying: capture high-resolution imagery across expansive sites
• High-altitude mapping: generate detailed datasets from elevated flight profiles
• Linear infrastructure inspection: document long-distance assets efficiently
• Environmental monitoring: collect imagery across wide geographic regions
• Photogrammetry missions: support accurate large-scale 3D modeling
• Construction oversight: document progress on major project sites
• Asset management: build long-term visual inspection records
• Research operations: acquire high-fidelity datasets for analysis
Designed for enterprise integration
The ILX-LR1 Payload is engineered for dependable operation in enterprise aerial environments, combining standardized interfaces with SDK-based camera control. External power support and lightweight construction enable scalable workflows across fleets and long missions. When integrated with the IF1200, the payload delivers consistent full-frame image quality for organizations requiring precision, coverage, and operational reliability.
The Inspired Flight Sony ILX-LR1 Payload for IF1200 delivers uncompromising imaging performance for heavy-lift aerial missions. It is built for professionals who require accurate, repeatable data across large operational areas.
Available now from DSLRPros. Configure your IF1200 with full-frame aerial imaging trusted by enterprise operators.

General
• Lens Mount: Sony E
• Image Sensor: 1.38-inch type CMOS
• Sensor Resolution: 60 MP (9504 × 6336 actual and effective)
• Capture Type: Stills and video
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Power Consumption: 3.8 W
• Dimensions: 100 × 74 × 42.5 mm (3.9 × 2.9 × 1.7 in)
• Weight: 243 g (8.6 oz, body only)
Imaging & Exposure
• Shutter Type: Mechanical focal-plane shutter and electronic global shutter
• ISO Sensitivity Range: ISO 100–32,000
• Image Stabilization: None
• Built-In ND Filter: None
• Lens Communication: Supported
Video Capture (Internal)
• Codecs: H.264, H.265, MPEG-4, XAVC HS, XAVC S
• Color Sampling / Bit Depth: 4:2:0, 8-bit
• 4K UHD (3840 × 2160): 23.98 / 25 / 29.97 / 50 / 59.94 fps
• Full HD (1920 × 1080p): 23.98 / 50 / 59.94 fps
• Full HD Interlaced (1920 × 1080i): 50 / 59.94 fps
Video Capture (External via HDMI)
• Output Format: 4:2:0, 8-bit
• 4K UHD (3840 × 2160): 23.98 / 29.97 / 50 / 59.94 fps
• Full HD (1920 × 1080p): 23.98 / 50 / 59.94 fps
• Full HD Interlaced (1920 × 1080i): 50 / 59.94 fps
Video Features
• Fast / Slow Motion: Supported
• Gamma Curves: S-Cinetone, Sony S-Log3
• Built-In Microphone: No
• Audio Recording: Not supported
• IP Streaming: Not supported
Still Image Capture
• Image Aspect Ratio: 4:3
• Maximum Still Resolution: 61 MP (3840 × 2168)
• Bit Depth: 8-bit
Storage & Interfaces
• Memory Card Slot: Single SD / SDHC / SDXC (UHS-II)
• Video Output: Micro-HDMI
• USB: USB-C 3.0 / 3.1 / 3.2 Gen 1
• Power Input: Molex 6-pin (10–18 VDC)
• Control / Data Interface: Block 6-pin camera interface I/O
Connectivity
• Wireless Connectivity: None
• Mobile App Support: Not supported
• GPS / GNSS: Not supported
Focus
• Focus Type: Autofocus and manual focus
• Focus Mode: Automatic
Mounting
• Tripod Mount: 1 × 1/4″-20 female thread (bottom)
• Accessory Mounting Points: 20 × M4 threaded points on camera body
• Shoe Mount: Not supported
