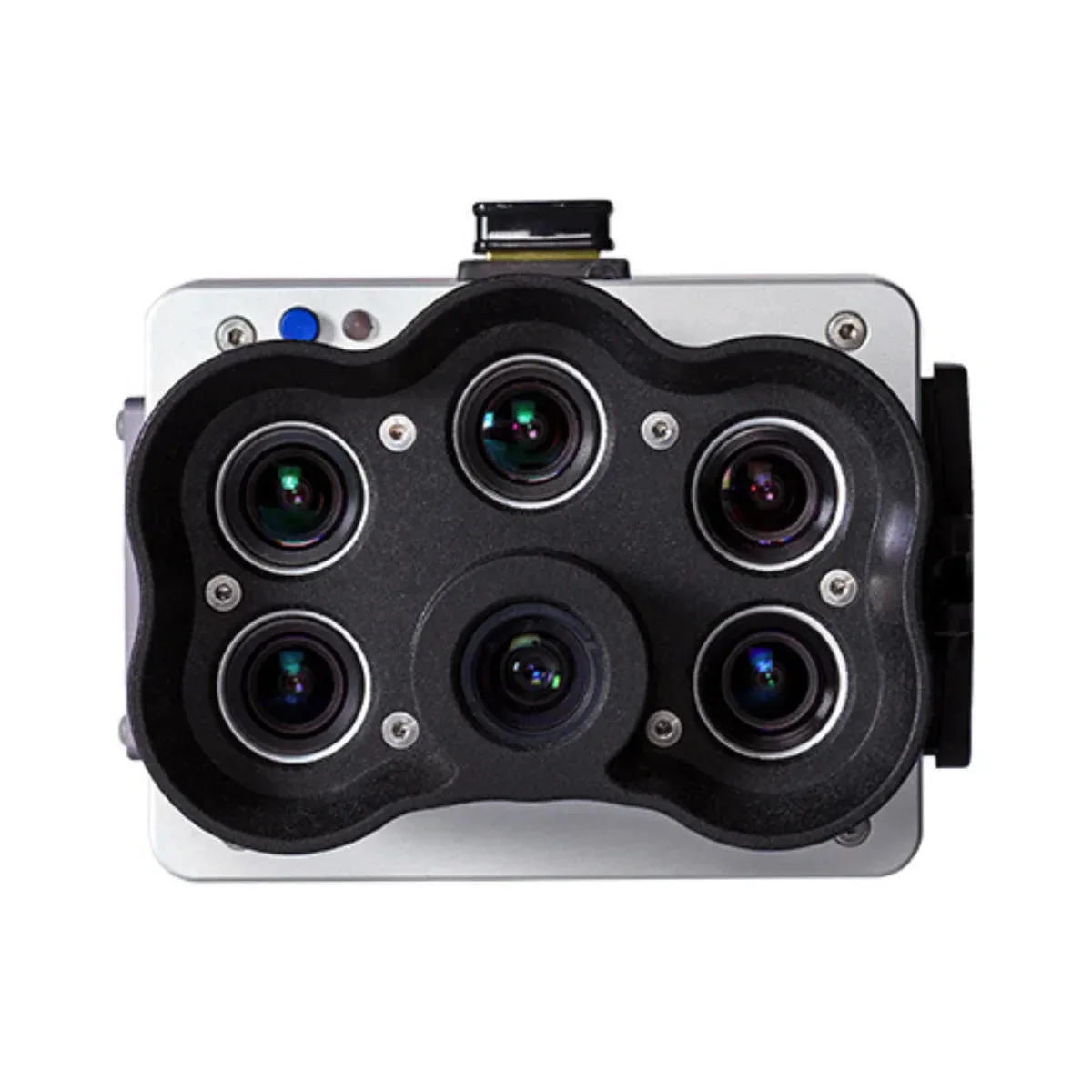

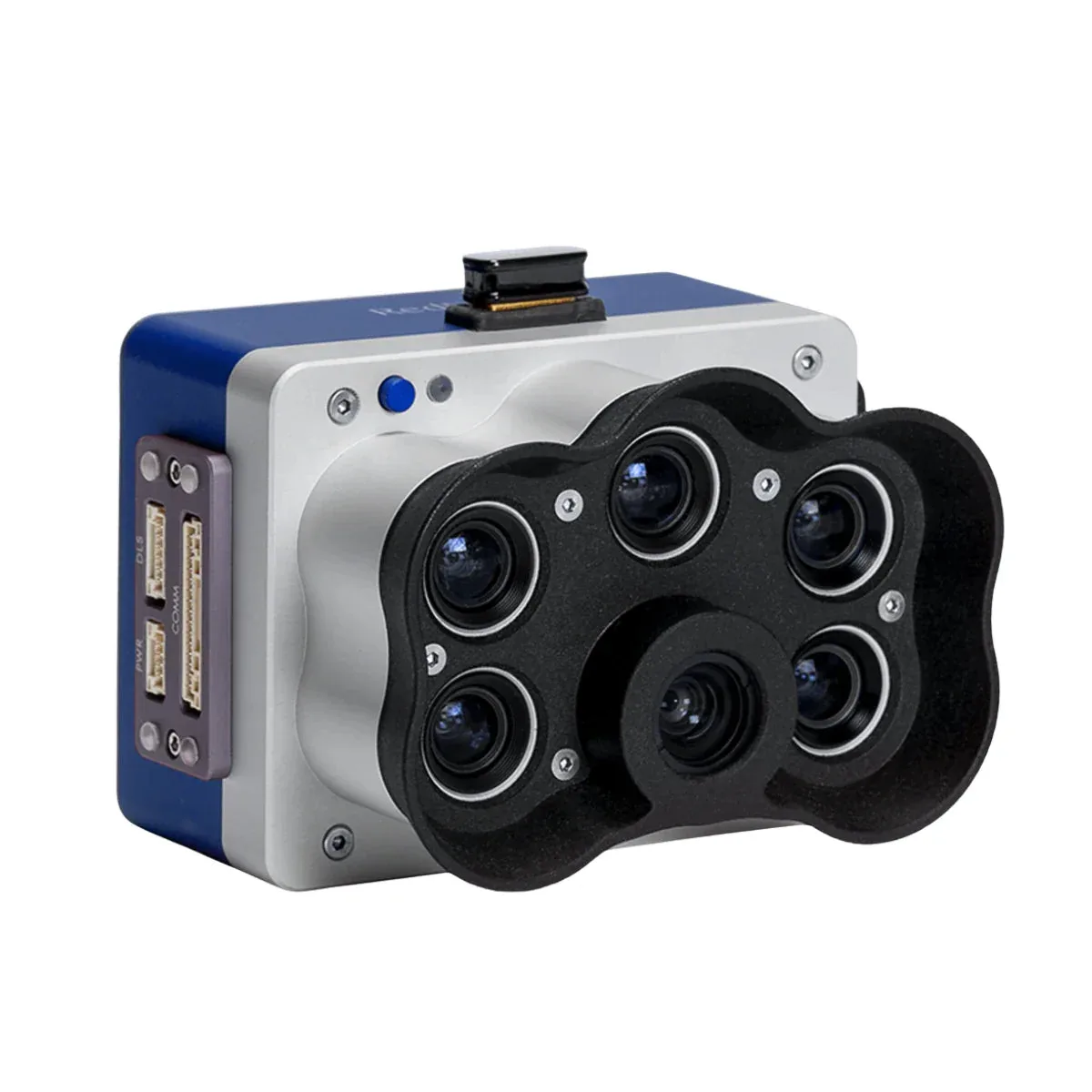

MicaSense RedEdge-P Blue Multispectral kit

Description

MicaSense RedEdge-P Blue Multispectral Kit: coastal multispectral intelligence with expandable band architecture
The MicaSense RedEdge-P Blue Multispectral Kit is purpose-built for enterprise users performing precision agriculture, environmental monitoring, and water-focused aerial surveys. As a standalone system, it captures five multispectral bands optimized for coastal and aquatic analysis using synchronized global-shutter sensors and radiometric calibration. Its ocean blue wavelength enables enhanced visibility in shallow water environments and improved vegetation stress detection.
Built on the modular RedEdge-P platform, the RedEdge-P Blue also supports expansion into dual and triple sensor configurations, allowing teams to increase spectral coverage while maintaining consistent data quality and operational workflows.
Coastal-optimized multispectral system and expansion features
• Standalone coastal blue multispectral sensor for water and vegetation analysis
• Ocean blue band enhances shallow water and aquatic environment monitoring
• Global shutter sensors eliminate motion distortion during survey flights
• Radiometric calibration supports repeatable quantitative data collection
• Modular architecture supports expansion into dual sensor configurations
• Dual systems allow selection of up to ten multispectral bands
• Expandable into RedEdge-P Triple configuration with fifteen bands
• Synchronized multi-sensor capture preserves temporal and spatial alignment
Reliable spatial resolution for analytical workflows
The RedEdge-P Blue captures multispectral imagery at 1456 × 1088 pixels per band, paired with a 2464 × 2056 pixel panchromatic sensor and a 5.1 MP RGB output aligned across all bands. At 120 m (≈400 ft) AGL, the system delivers a ground sample distance of 7.7 cm (3 in) per multispectral band and 3.98 cm (1.5 in) for the panchromatic band. With pan-sharpening applied during post-processing, spatial resolution can reach 2 cm (0.8 in) per pixel. Global shutter architecture ensures distortion-free imagery during motion-intensive missions.
Scalable spectral coverage from single to triple configurations
The RedEdge-P Blue Multispectral Kit is designed to scale with operational requirements. Used independently, it provides coastal-optimized multispectral data for water and vegetation analysis. When paired with a RedEdge-P or RedEdge-P Green sensor, the system forms a dual configuration supporting up to ten selectable bands from a fifteen-band ecosystem.
When combined with both RedEdge-P and RedEdge-P Green sensors, it becomes part of the RedEdge-P Triple configuration, enabling synchronized capture of all fifteen multispectral bands for advanced pigment analysis, stress detection, and research-grade spectral differentiation.
Platform compatibility and workflow integration
• Compatible with DJI SkyPort-equipped enterprise aircraft (Matrice 300/350)
• Supports single, dual, and triple sensor mounting configurations
• Includes DLS 2 downwelling light sensor with integrated GPS
• Calibrated reflectance panel supports radiometric correction
• Interfaces include Ethernet, serial, USB, and configurable GPIO
• CFexpress storage supports high-speed raw DNG capture
• Protective hard carrying case included for field deployment
Enterprise use cases and operational scenarios
• Precision agriculture analysis: crop vigor, chlorophyll efficiency, stress detection
• Water quality monitoring: algae blooms, sediment suspension, aquatic vegetation
• Coastal and near-shore mapping: tidal zones, wetlands, shoreline environments
• Environmental monitoring: ecosystem health and long-term change tracking
• Vegetation research: species differentiation and invasive plant identification
• Forestry assessment: canopy condition and vegetation classification
• Conservation programs: biodiversity monitoring and habitat restoration
• Academic research: high-band-count multispectral data acquisition
Engineered for mission reliability and system scalability
The RedEdge-P Blue Multispectral Kit is engineered for professional operations requiring dependable data, scalable architecture, and long-term consistency. Double radiometric calibration using a downwelling light sensor and reflectance panel supports reliable datasets across changing light conditions. Its modular design enables organizations to deploy a single coastal-focused sensor today and expand into dual or triple configurations as analytical demands grow, without altering established workflows or processing pipelines.
The MicaSense RedEdge-P Blue Multispectral Kit delivers coastal-optimized spectral intelligence with a clear path to higher band counts. From standalone surveys to fully synchronized fifteen-band systems, it supports confident, data-driven decision-making across land and water environments.
Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

Spectral Bands
• Multispectral bands: 5 total (ocean/coastal blue, green, red, red edge 705, red edge 740)
• Ocean blue band wavelength: 444 nm center, 28 nm bandwidth
Sensor Resolution and Output
• Multispectral sensor resolution: 1456 × 1088 pixels (1.6 MP per band)
• Panchromatic sensor resolution: 2464 × 2056 pixels (5.1 MP)
• RGB output: 5.1 MP, global shutter, aligned with all spectral bands
• Shutter type: Global shutter across all sensors
Ground Sample Distance and Pansharpening
• Ground sample distance (multispectral): 7.7 cm / 3 in per pixel at 120 m (~400 ft) AGL
• Ground sample distance (panchromatic): 3.98 cm / 1.5 in per pixel at 120 m (~400 ft) AGL
• Pan-sharpened output resolution: 2 cm / 0.8 in per pixel with post-processing
Capture and Storage
• Capture rate: Up to 3 raw DNG images per second
• Storage media: CFexpress card
Power
• External power input: 7.0–25.2 V
• Power consumption: 11 W standby, 14 W average, 20 W peak
Optics and Field of View
• Field of view (multispectral): 50° HFOV × 38° VFOV
• Field of view (panchromatic): 44° HFOV × 38° VFOV
Calibration
• Radiometric calibration: Double calibration using DLS 2 light sensor and reflectance panel
Interfaces
• Interfaces: Ethernet, serial, USB 2.0 (WiFi), configurable GPIO, PPS input/output
Environmental and Protection
• Operating temperature (no airflow): 0–40 °C (32–104 °F)
• Operating temperature (with airflow >0.5 m/s / 1.1 mph): 0–50 °C (32–122 °F)
• Ingress protection rating: IP4X
Expansion and Synchronization
• Modular expansion: Compatible with RedEdge-P and RedEdge-P Green for dual or triple configurations
• Multi-sensor synchronization: Supported when used in dual or triple systems
