Sentera 6X Thermal Pro Sensor Kit for Inspired Flight IF800

Description

Integrated Multispectral, RGB, and Thermal Data Platform for Scalable Aerial Analytics
The Sentera 6X Thermal Pro Sensor Kit for Inspired Flight IF800 is designed as a unified data acquisition platform for organizations running repeatable aerial analytics workflows.

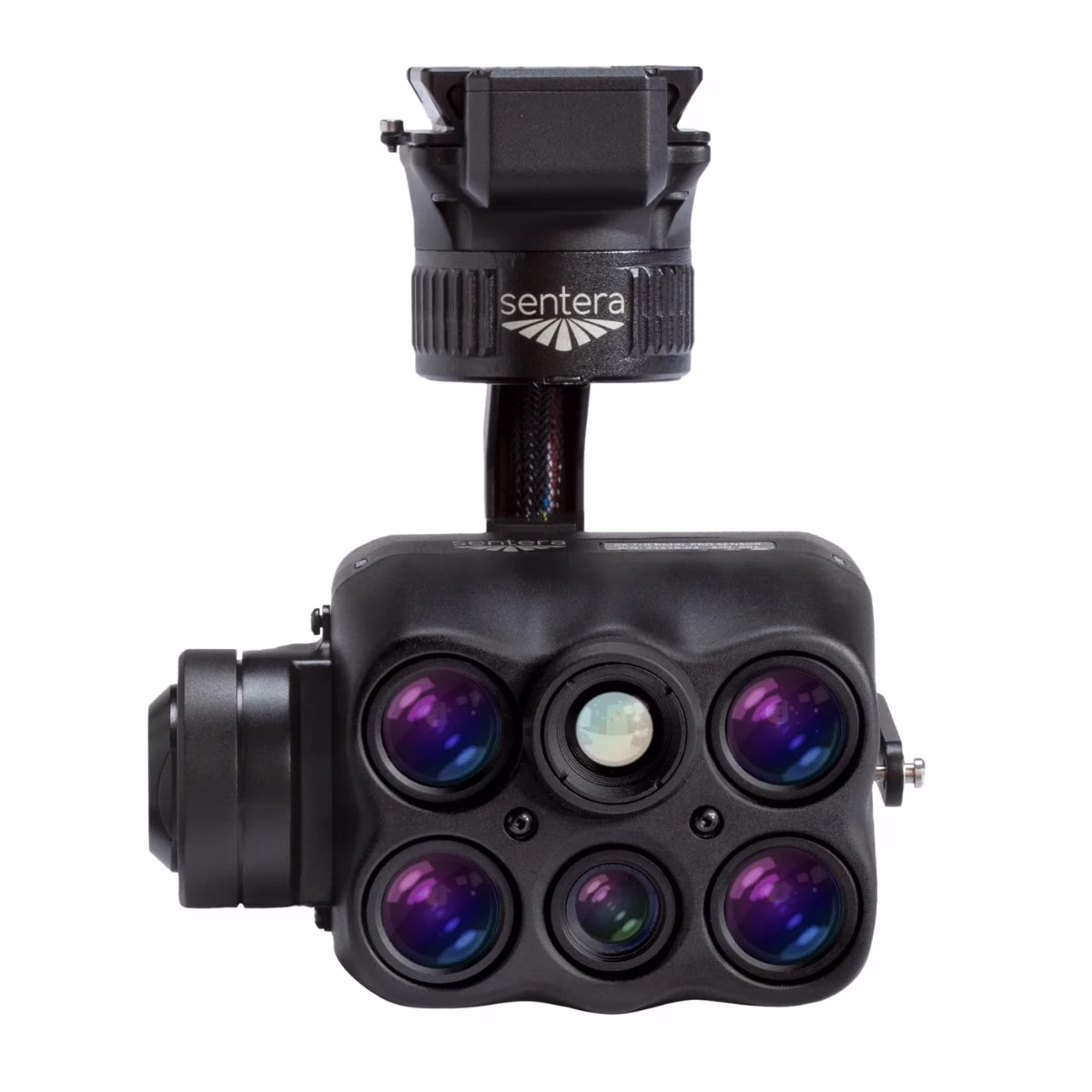

By combining four 3.2MP multispectral sensors, a 20MP RGB camera, and a 640 × 512 radiometric thermal imager into a single payload, it enables simultaneous capture of all required data layers in one pass.
From a systems perspective, the inclusion of a Smart Dovetail gimbal, incident light sensor, and calibrated reflectance panel supports standardized data collection across deployments.
With synchronized imaging, 512GB onboard storage, and NDAA compliant design, the platform allows teams to scale operations while maintaining consistency, compliance, and data integrity across projects.
Key Features and Benefits
• Multi-modal sensing system: Combines 4 × 3.2MP multispectral, RGB, and thermal sensors.
• Radiometric thermal capture: 640 × 512 FLIR Boson sensor enables temperature analysis workflows.
• NDAA compliant architecture: Supports deployment across government and regulated environments.
• Global shutter multispectral: Ensures distortion-free capture for accurate spectral measurements.
• Synchronized imaging pipeline: Aligns all sensor outputs for consistent multi-layer datasets.
• High-resolution RGB imaging: 20MP sensor supports detailed mapping and inspection outputs.
• High capture efficiency: 5 FPS enables rapid coverage of large operational areas.
• Onboard data storage: 512GB SSD supports extended missions without offloading interruptions.
• Calibration workflow included: Reflectance panel and light sensor ensure consistent data output.
• Open data architecture: Standard TIFF and JPEG formats support broad analytics compatibility.
Built for Repeatable and Scalable Data Acquisition
For organizations managing recurring survey missions, consistency across datasets is critical. The 6X Thermal Pro addresses this by capturing all data layers simultaneously, eliminating variability caused by multiple flights or sensor swaps.
With a ground sampling distance of 0.4 in (1.0 cm) RGB, 1.0 in (2.6 cm) multispectral, and 3.4 in (8.75 cm) thermal at 200 ft (60 m), it delivers predictable resolution across deployments.
Combined with onboard storage and calibrated inputs, it enables teams to standardize data collection processes and scale operations without compromising analytical reliability.
Compatibility and System Integration
• Inspired Flight IF800 platform: Integrates using Smart Dovetail for stabilized payload operation.
• MAVLink communication support: Ensures interoperability with supported flight control systems.
• USB-C and Ethernet interfaces: Enable data transfer and system-level connectivity workflows.
• Multi-interface I/O support: Includes PPS, serial, and discrete connections for integration.
Applications and Use Cases
• Agricultural analytics programs: Monitor crop health, stress, and nutrient variability trends.
• Water resource management: Detect irrigation inefficiencies and soil moisture distribution patterns.
• Environmental monitoring systems: Track vegetation indices and land use changes over time.
• Industrial inspection programs: Identify thermal anomalies in equipment and infrastructure assets.
• Fire monitoring operations: Detect and track heat signatures in active or developing fires.
• Conservation and research: Analyze ecosystem health and habitat condition trends longitudinally.
The Sentera 6X Thermal Pro Sensor Kit provides a structured approach to multi-sensor data acquisition, enabling organizations to collect consistent, analysis-ready datasets across missions.
Its integrated calibration workflow and synchronized capture reduce variability while supporting scalable aerial data programs.
Dronefly works with enterprise teams to design and deploy complete UAV data acquisition systems.
Our specialists can help integrate the 6X Thermal Pro into your IF800 platform and align it with your operational and analytics requirements. Purchase from Dronefly to build a fully integrated aerial data solution.

Resolution
• RGB: 5184 × 3888 pixels
• Multispectral: 2048 × 1536 pixels
• Thermal: 640 × 512 pixels
Ground Sample Distance (GSD @ 200 ft)
• RGB: 0.4 in (1.0 cm)
• Multispectral: 1.0 in (2.6 cm)
• Thermal LWIR: 3.4 in (8.75 cm)
Shutter Type
• RGB: Electronic rolling shutter
• Multispectral: Global shutter
• Thermal: Shutterless
Frame Rate
• 5 FPS (0.2 s interval)
Image Format
• RGB: 8-bit JPEG
• Multispectral: 12-bit TIFF
• Thermal: 16-bit TIFF
Spectral Bands
• Green: 550 nm CWL × 20 nm bandwidth
• Red: 670 nm CWL × 30 nm bandwidth
• Red Edge: 715 nm CWL × 10 nm bandwidth
• NIR: 840 nm CWL × 20 nm bandwidth
• RGB: IR cut 650 nm
• Thermal infrared: Radiometric 8 µm to 14 µm
Storage
• 512 GB internal SSD
Compatible Drones
• DJI: Matrice Series
• Inspired Flight: IF800 Tomcat, IF1200
• Freefly: Astro
• Custom integration: Gremsy Hyper Quick
Supported Protocols
• DJI
• MAVLink v1 and v2
• Custom protocols

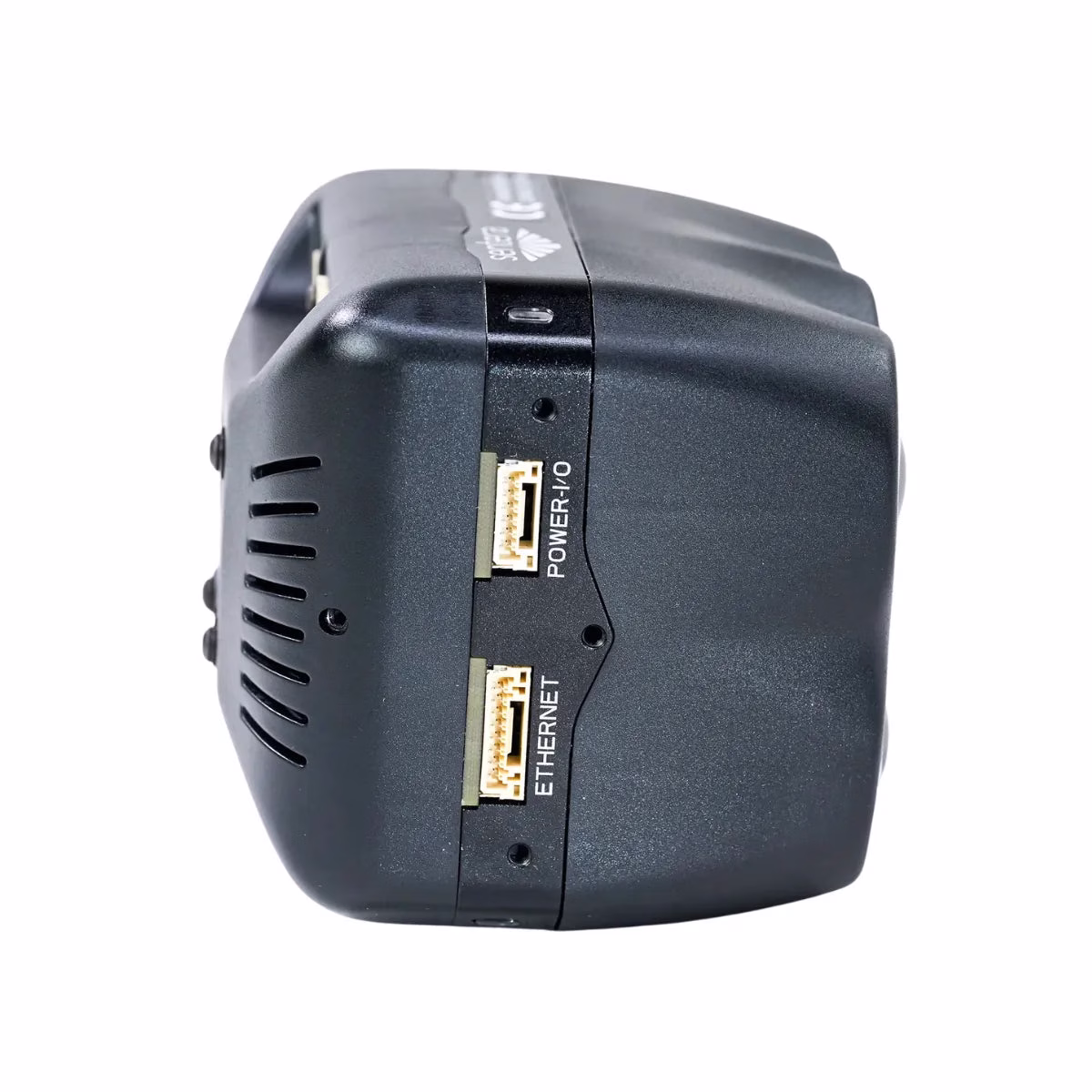

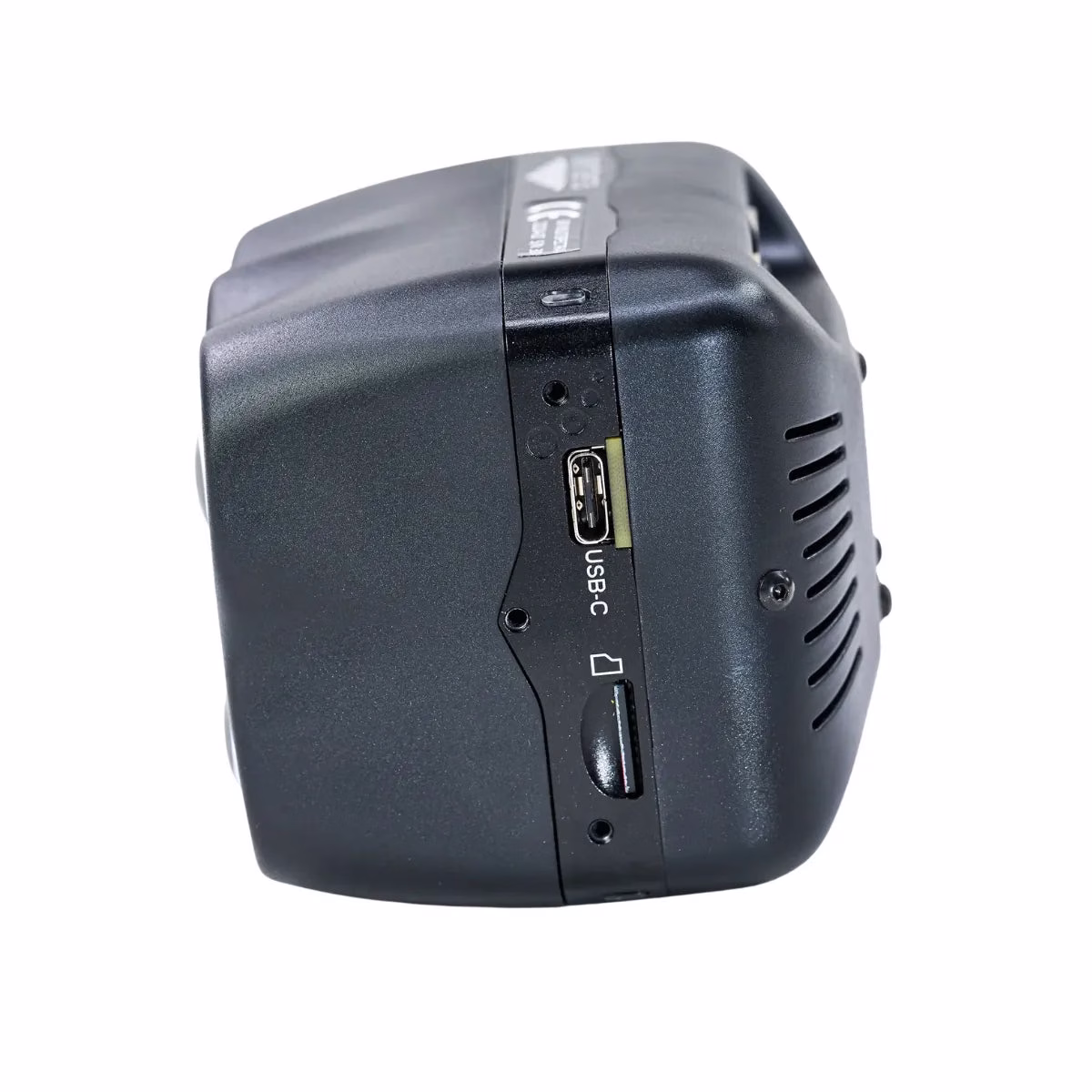

Interfaces
• USB-C 3.0
• Gigabit Ethernet
• PPS
• Serial
• Discrete I/O
Power
• Input voltage: 10.5–26 V
• Power consumption: 15 W typical, 18 W max
Weight
• Sensor only: 290 g
• With Skyport gimbal: 505 g
• With Smart Dovetail: 525 g
• With Gremsy Hyper Quick: 500 g
• ILS adds 58 g to total system weight
