WISPR 24MP Mapper Payload

Description

WISPR 24MP Mapper: APS-C Mapping Payload With Integrated Geotagging for the SkyScout 2 Series

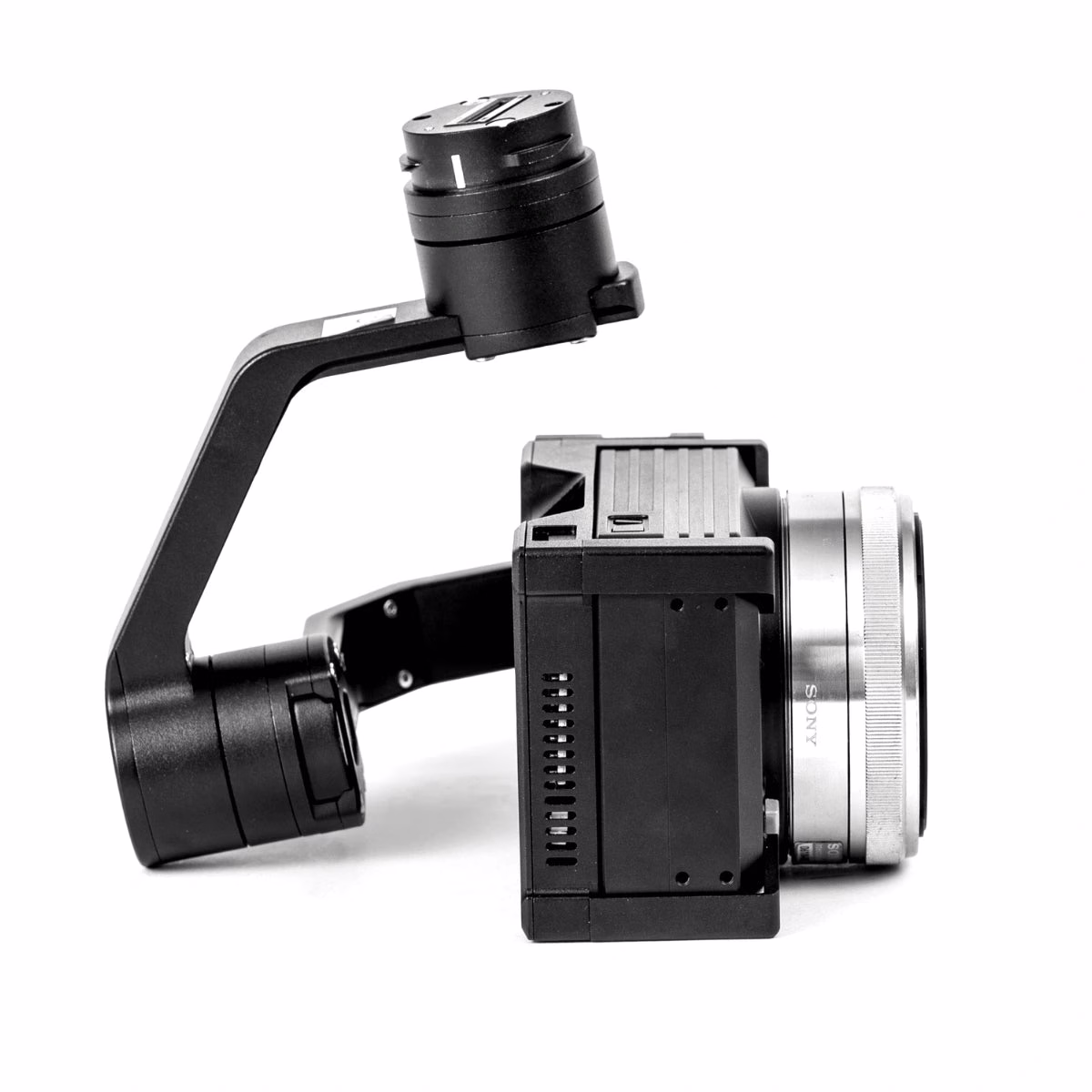

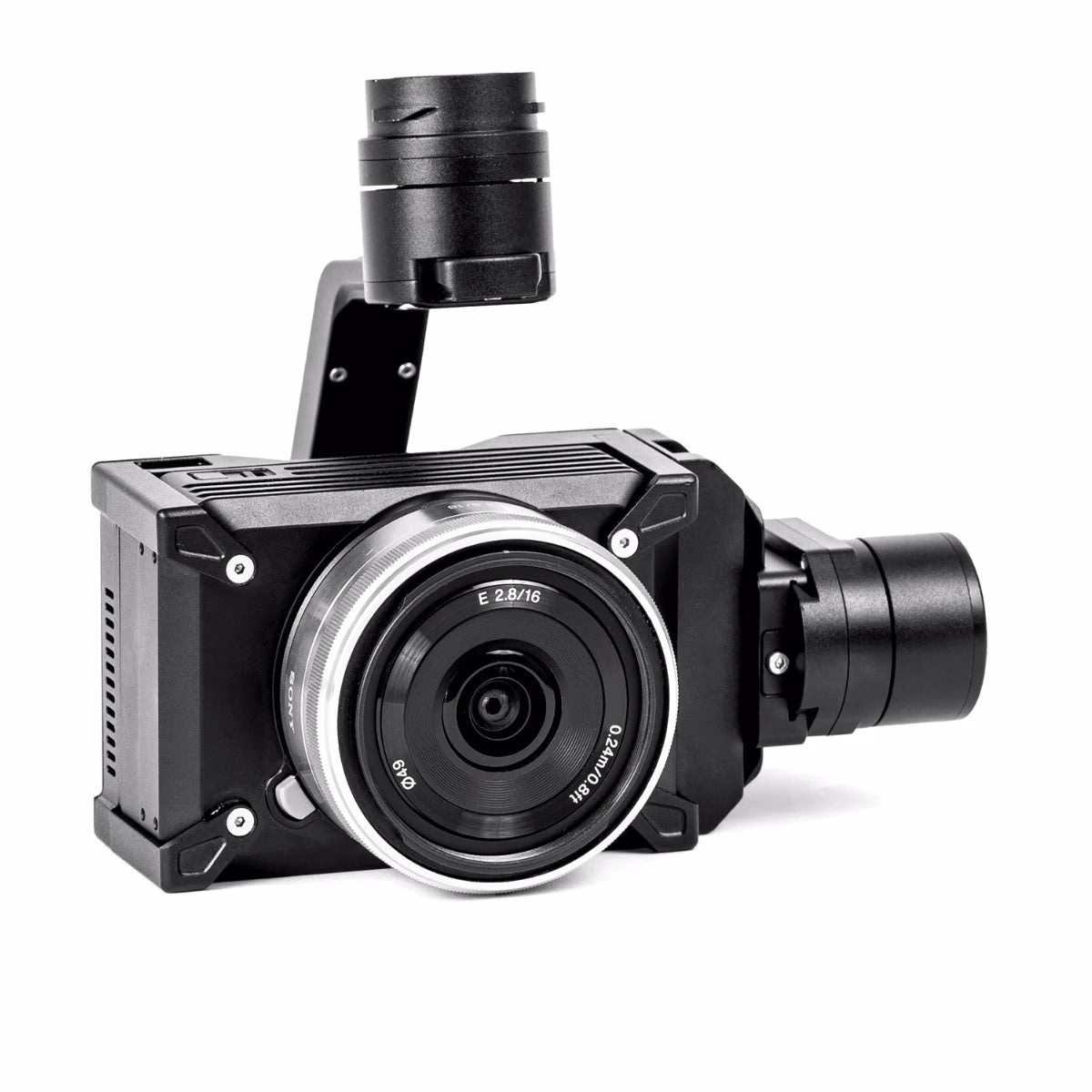

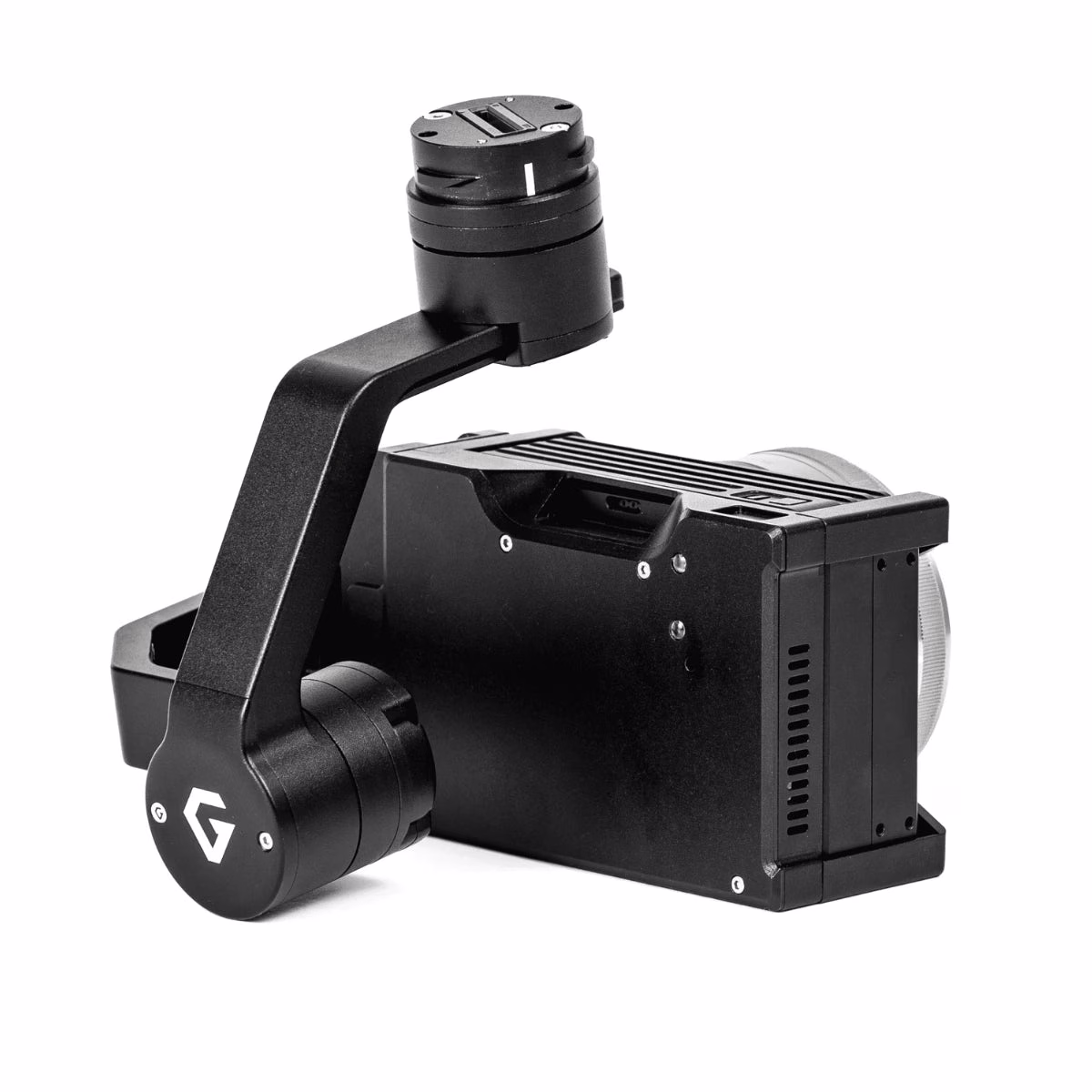

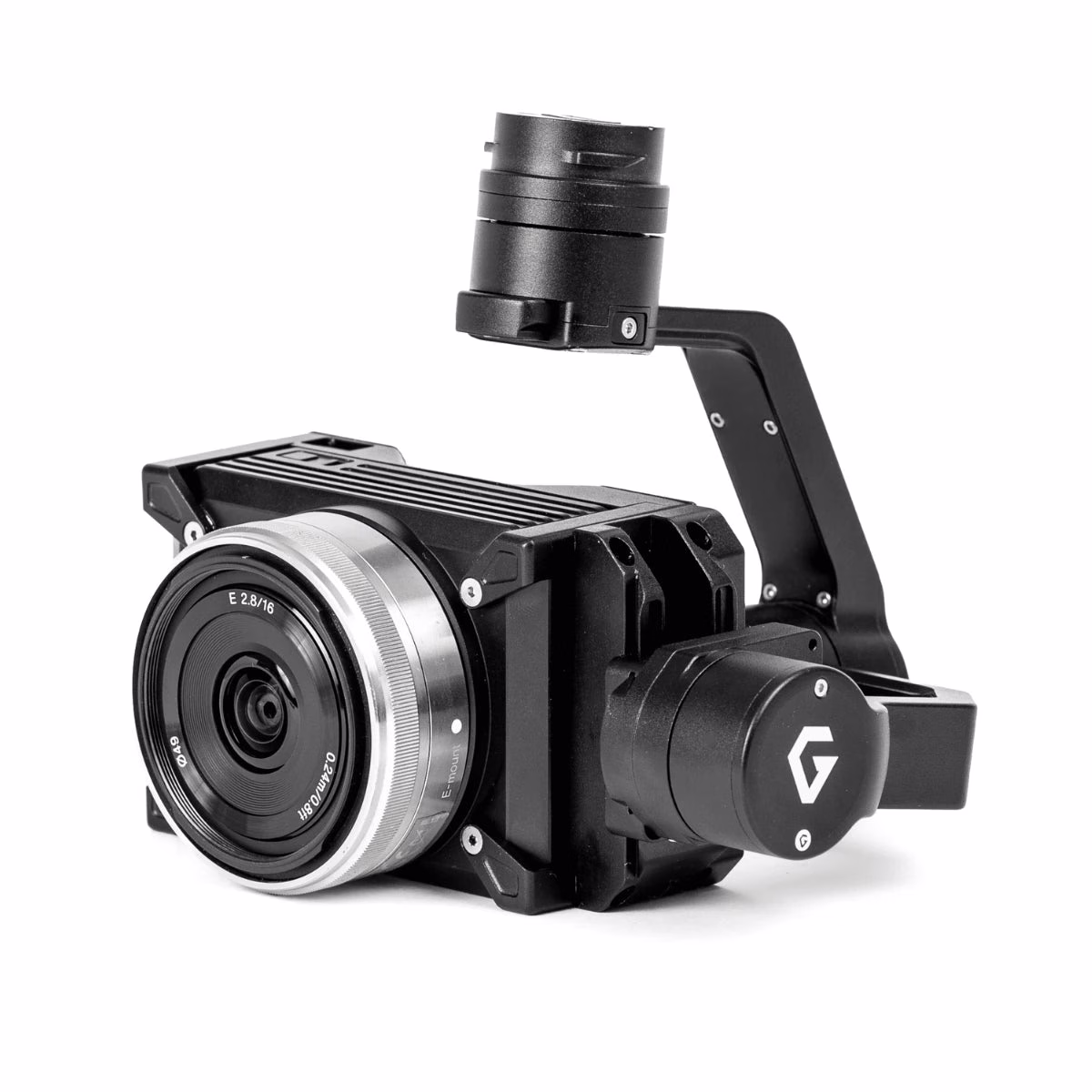

The WISPR 24MP Mapper is a gimbal-mounted imaging payload purpose-built for enterprise aerial data collection on the WISPR SkyScout 2 Series. At its core is a Sony Exmor APS-C CMOS sensor delivering 24-megapixel output at 6000 x 4000 pixels through a Sony E Mount 16mm lens with an 83-degree field of view — a configuration that balances ground resolution with area coverage across mapping, surveying, and photogrammetry deployments. The twist-lock quick-attach gimbal ring integrates directly with the SkyScout 2 payload interface, keeping swap times short and operational continuity intact across multi-payload programs.
For fleet operators and program managers, the 24MP Mapper’s data pipeline is as important as its imaging specs. Every image capture writes a full geotag to EXIF — latitude, longitude, altitude, gimbal yaw, pitch, and roll, plus GPS timestamp — while a parallel GPSlog.txt file records horizontal and vertical accuracy values not embedded in EXIF. Video missions generate a frame-accurate subtitle file logging positional data at one data point per second. Shooting in RAW, HEIF, or JPEG, with ISO expandable to 51200 via MFNR and a mechanical shutter range of 1/4000 to 30 seconds, the payload adapts to the lighting and output conditions your workflows demand.
Mission-Ready Capabilities of the WISPR 24MP Mapper
• APS-C CMOS sensor: 1.11-inch Sony Exmor delivers enterprise-grade aerial image quality.
• Full-resolution output: 6000 x 4000 pixel capture feeds directly into photogrammetry pipelines.
• Wide-field lens: 83-degree FOV reduces required passes over large survey areas.
• Stabilized 3-axis gimbal: ±0.02° vibration range keeps imagery sharp through flight dynamics.
• Dual geotagging system: EXIF and GPSlog.txt together capture complete positional datasets.
• Accuracy data backup: horizontal and vertical accuracy logged separately for processing integrity.
• Flexible format support: RAW, HEIF, and JPEG accommodate varied deliverable requirements.
• Video geotag pipeline: subtitle file writes positional data at one data point per second.
• High-ISO capability: sensitivity to 51200 with MFNR extends usability in low-light conditions.
• Integrated mount system: quick-attach ring supports consistent multi-mission payload deployment.
The WISPR 24MP Mapper addresses a persistent gap in enterprise drone programs: a high-resolution imaging payload that produces geospatially complete datasets without additional hardware or post-processing workarounds. The 3-axis gimbal’s controlled pan range of ±320° and operating temperature envelope of 32°F to 122°F (0°C to 50°C) support sustained deployment across diverse mission environments and fleet configurations.
Dronefly specializes in building integrated UAV solutions for enterprise operators who need payloads that perform consistently across program-scale deployments. Our team can help you configure the WISPR 24MP Mapper within your SkyScout 2 Series fleet and ensure your data collection workflow is production-ready from day one. Contact Dronefly to get started.

Camera
• Sensor: Exmor APS-C CMOS
• Sensor size: 1.11″
• Sensor width: 0.93″
• Sensor height: 0.61″
• Photo resolution: 24 MP
• Image size: 6000 × 4000
• Photo formats: JPEG, HEIF, RAW
• Video resolution: 1080p at 60 fps (max)
• Video formats: XAVC S (MPEG-4 AVC/H.264), AVCHD 2.0, MP4
• Shutter type: Mechanical shutter / Electronic shutter
• Shutter speed: 1/4000 s to 30 s (still images, mechanical shutter)
• Exposure compensation: ±5.0 EV in 0.3 EV steps
• ISO sensitivity: Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600; 51200 available with MFNR
• PAL/NTSC: Supported
Camera Lens
• Lens option: Sony E-Mount 16 mm lens
• Field of view (FOV): 83°
Gimbal
• Angular vibration range: ±0.02°
• Maximum controlled rotation speed: Pan 180°/s, Tilt 180°/s, Roll 180°/s
• Mechanical endpoint range: Pan ±326°, Tilt +45° to -125°, Roll +45° to -45°
• Controlled rotation range: Pan ±320°, Tilt +40° to -120°, Roll ±40°
• Operating temperature: 32°F to 122°F
