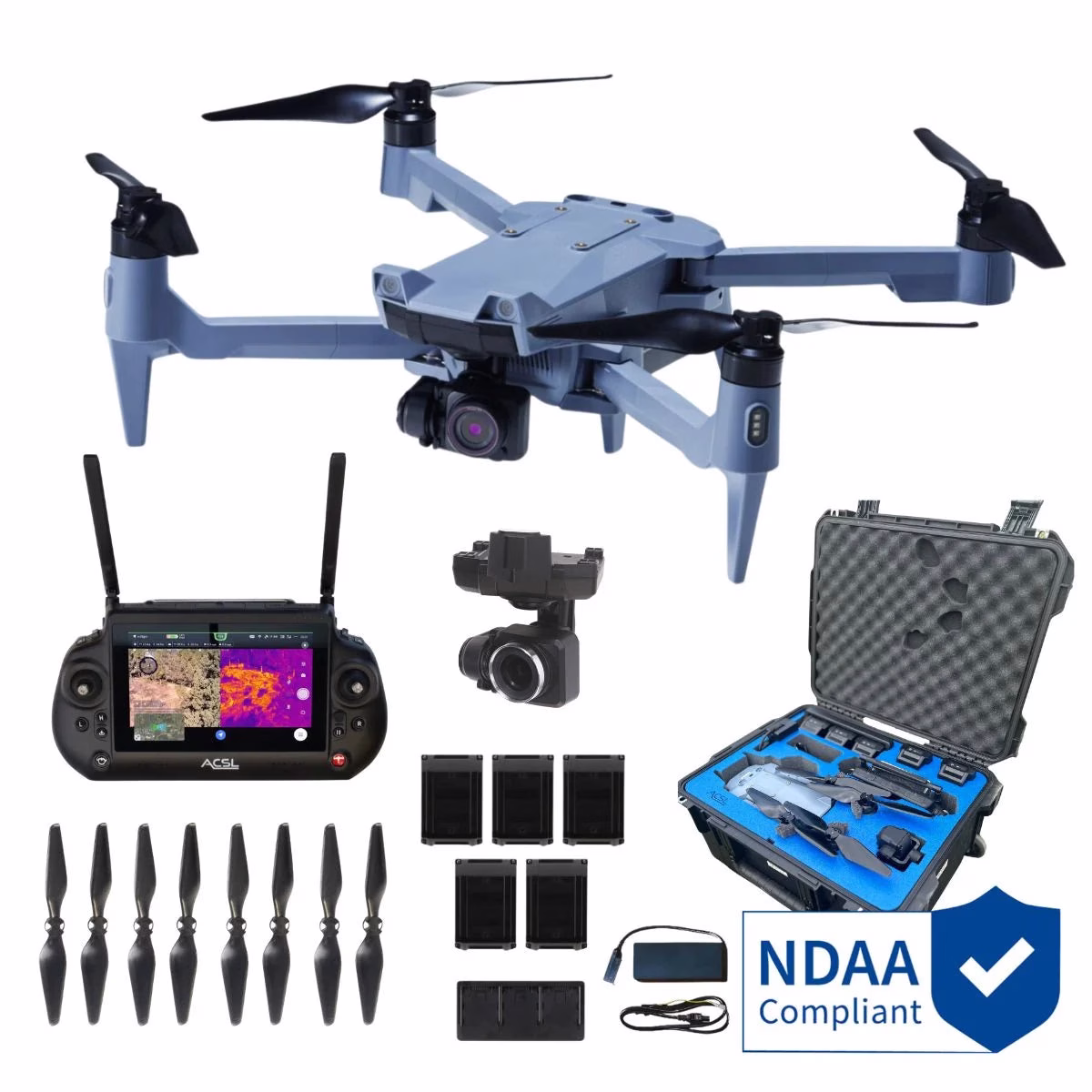

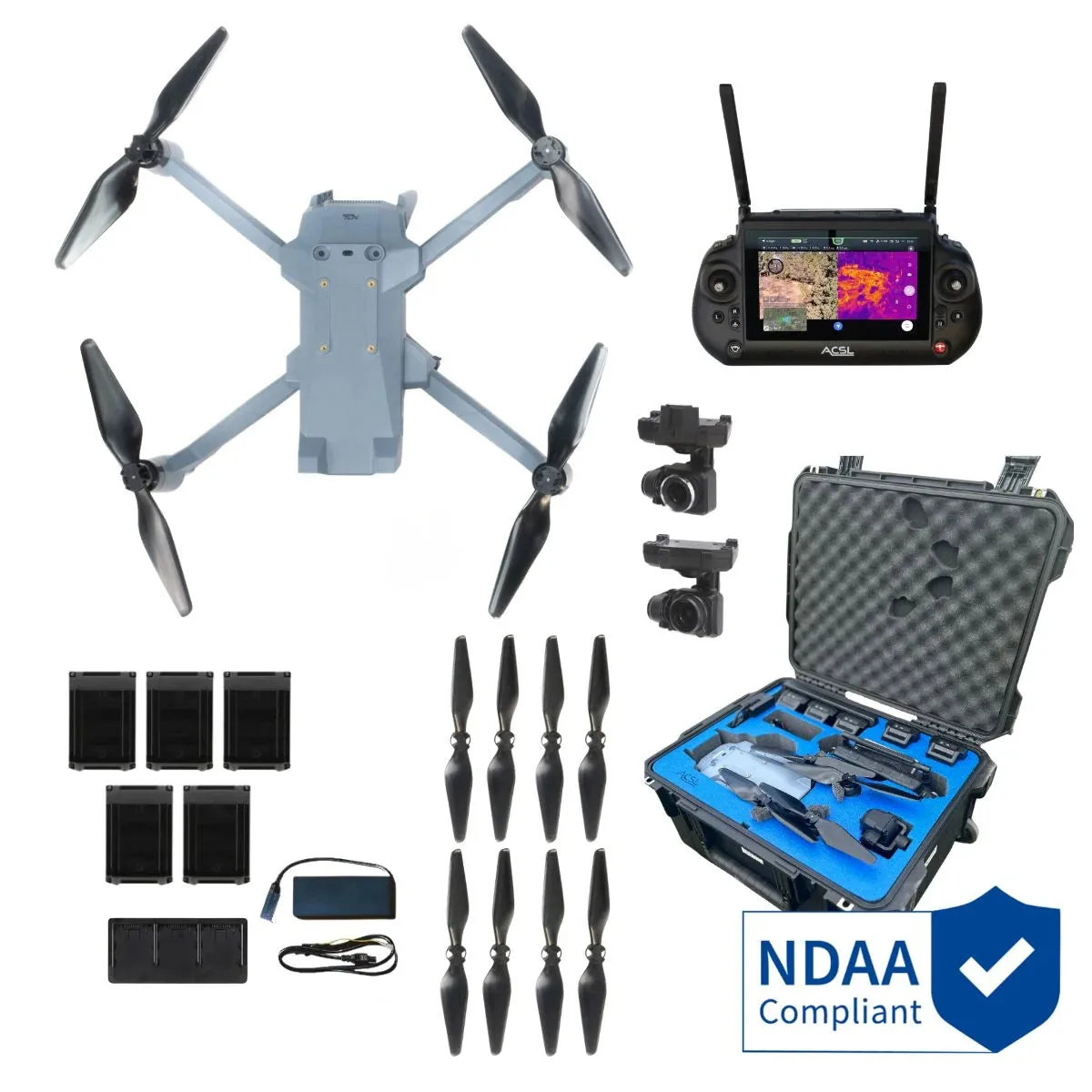

ACSL SOTEN Agriculture Bundle Plus with Rapid Deployment Hard Case

Description

ACSL SOTEN Agriculture Bundle Plus with Rapid Deployment Hard Case: Dual-Sensor Aerial Platform for Precision Agriculture and Vegetation Monitoring Programs
Building a productive precision agriculture program starts with a platform that collects the right data consistently and securely. The ACSL SOTEN Agriculture Bundle Plus with Rapid Deployment Hard Case is the only SOTEN bundle that ships with two camera payloads: the CX-GB300 Multispectral Camera and the CX-GB100 standard 20MP visible camera, both included alongside the TAITEN Smart Controller, five smart batteries, a triple cradle charger, and a wheeled hard-shell case with custom blue foam interior.
For program managers running crop health monitoring, vegetation analysis, or environmental survey workflows, this bundle removes the hardware gap between spectral data collection and high-resolution visual documentation by putting both capabilities in a single organized kit.
Key Features and Benefits
• Dual cameras included: CX-GB300 multispectral and CX-GB100 visible camera ship together in one bundle.
• Multispectral imaging: 1-inch 20MP sensor with triple bandpass filter for calibrated spectral data collection.
• Solar sensor: integrated on CX-GB300 maintains light calibration across changing field conditions.
• RGB TIFF 16-bit output: analytical image format supports repeatable vegetation and crop health workflows.
• One-touch payload swap: exchange cameras between sorties without powering down the aircraft.
• NDAA compliance: aircraft and TAITEN controller satisfy federal procurement requirements.
• Five-battery complement: supports multi-sortie coverage across large agricultural field areas per session.
• TAITEN Smart Controller: 7-inch 1500-nit display, Android 13, and 8-hour runtime for all-day operations.
• Rapid deployment hard case: wheeled hard-shell with custom foam organizes the full dual-camera bundle.
• AES-256 encryption: communications and optional on-media data storage are cryptographically secured.
The CX-GB300 is the analytical core of this bundle. Its 1-inch 20MP sensor captures RGB TIFF 16-bit imagery through a triple bandpass filter, with an integrated solar sensor compensating for changing ambient light conditions across field sessions.
The result is calibrated multispectral data suited for repeatable crop health assessment, vegetation mapping, and field condition monitoring at scale. The CX-GB100 complements the multispectral workflow with 20MP mechanical shutter stills and 4K video at 30fps, providing the visual context that agronomists and program stakeholders need alongside spectral outputs.
Both payloads mount to the SOTEN’s one-touch gimbal system and can be exchanged between sorties in seconds without powering down the aircraft. AES-256 encrypted ACSL Fides-Link communications and an ISO/IEC 15408-based security architecture ensure that collected field data stays protected throughout the mission.
Calibrated Spectral Data at Program Scale
Precision agriculture programs depend on data that holds up across repeated field visits. The CX-GB300 delivers calibrated multispectral imagery through a triple bandpass filter, with an integrated solar sensor that adjusts for ambient light variation during flight. RGB TIFF 16-bit output gives data teams a consistent, high-bit-depth format for quantitative analysis across seasonal comparisons and treatment evaluations.
The CX-GB100 provides the 20MP visible and 4K video layer that gives agronomists and stakeholders spatial context alongside spectral outputs. At 1,720g including camera and battery, the foldable SOTEN airframe is portable enough to deploy across distributed field sites without dedicated logistics support.
Five batteries and a triple cradle charger sustain multi-sortie coverage windows, and offline map support with optional LTE connectivity through ACSL TAKEOFF keeps autonomous mission execution on track regardless of field connectivity.
Compatibility and System Integration
• CX-GB300 multispectral camera: included; 1-inch 20MP sensor with triple bandpass filter and solar sensor.
• CX-GB100 standard camera: included; 1-inch 20MP with mechanical shutter and 4K video output.
• SAMO high-resolution thermal camera: optional NDAA-compliant EO/IR payload for thermal workflows (sold separately).
• CX-GB400 optical zoom camera: optional 2.5x optical with up to 25x combined zoom capability (sold separately).
• ACSL SOTEN RTK Module: optional centimeter-level positioning accessory for precision field mapping (sold separately).
• ACSL TAKEOFF app: pre-installed on TAITEN for integrated flight, gimbal, and autonomous mission control.
• ACSL Fides-Link: dual-band AES-256 encrypted link with 6-plus mile unobstructed range.
• Optional LTE module: enables remote and closed-network operations for BVLOS-capable programs (sold separately).
Applications and Use Cases
• Crop health monitoring: collect repeatable multispectral datasets for stress, disease, and deficiency detection.
• Vegetation mapping: generate consistent spectral coverage for seasonal comparison and change detection.
• Precision agriculture planning: support variable-rate input decisions with calibrated aerial field data.
• Field condition assessment: combine multispectral and visible capture for comprehensive agronomic documentation.
• Irrigation analysis: identify moisture distribution patterns and dry zones across active cropping areas.
• Environmental monitoring: document vegetation health and land cover changes across managed and natural areas.
• Research programs: collect controlled multispectral and visible datasets for academic and applied study workflows.
• Agronomy reporting: produce calibrated spectral records and 20MP visual documentation in a single field session.
The ACSL SOTEN Agriculture Bundle Plus with Rapid Deployment Hard Case gives precision agriculture and environmental monitoring programs a dual-sensor aerial platform that is organized, compliant, and ready to collect calibrated data from the first deployment.
The CX-GB300 and CX-GB100 together in a single wheeled hard-shell case, backed by five batteries and a triple cradle charger, means program teams arrive at the field with everything needed to run both spectral and visual data collection without a second trip or a second aircraft.
Dronefly brings deep experience supporting enterprise UAS programs across precision agriculture, environmental monitoring, and land management verticals. As a premier West Coast UAV dealer, Dronefly provides the application knowledge and integration support your team needs to deploy the SOTEN Agriculture Bundle and build a data collection program that delivers consistent results season after season.
Purchase the ACSL SOTEN Agriculture Bundle Plus today at Dronefly and start collecting calibrated dual-sensor field data on your next deployment.

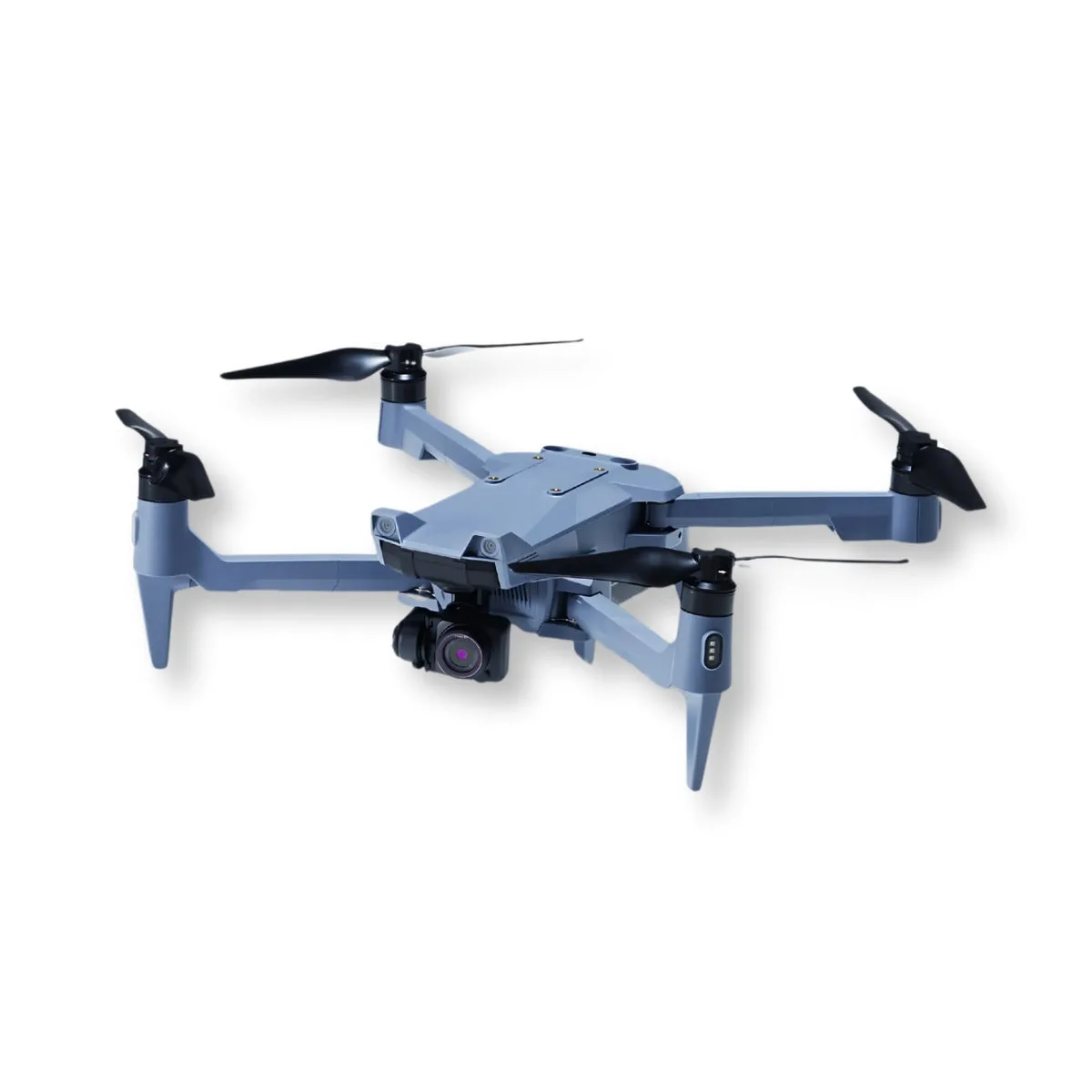

Aircraft
• Form factor: Compact, foldable quadrotor
• Dimensions (unfolded): 637mm × 560mm (including propellers)
• Dimensions (folded): 162mm × 363mm
• Height (unfolded): 153mm (including propellers)
• Weight: 1,720g (including standard camera and battery)
• Max takeoff weight: 2,000g
• Rotors: 4
• IP rating: IP43 (with camera, gimbal, and battery installed)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operational altitude limit: 2,000m (6,562 ft)
• Max speed (no wind): 15 m/s (33 mph)
• Max ascent speed: 3 m/s
• Max descent speed: 2 m/s
• Max pitch angle: 30°
• Angular velocity: Pitch 80°/s, Yaw 45°/s
• Max flight time: 25 min (with standard camera, 8 m/s wind); 29 min (without camera, 8 m/s wind)
• Operating frequency: 2.412–2.477 GHz (aircraft radio); dual-band 2.4 GHz + 5.8 GHz via TAITEN/Fides-Link
• GNSS: GPS + QZSS + GLONASS + SLAS (Michibiki sub-meter augmentation)
• Hovering accuracy (vision positioning): Vertical ±0.1m, Horizontal ±0.3m
• Hovering accuracy (GNSS): Vertical ±0.5m, Horizontal ±1.5m
• Security architecture: Based on ISO/IEC 15408 principles; AES-256 encrypted communications; optional in-flight data encryption on media; optional Japanese cloud data management
• NDAA compliance: Yes (aircraft)
• Remote ID: Compliant
• DIU Blue UAS: Not currently listed
• LTE: Optional module for remote/BVLOS operations and closed-network control
• Offline maps: Supported via ACSL TAKEOFF app
• Multi-controller support: Up to 3 controllers per aircraft (instructor/payload/handoff)
• Country of manufacture: Japan (major parts domestic or from highly reliable overseas sources)
Vision / Obstacle Avoidance System
• Forward obstacle detection range: 10m
• Up obstacle detection range: 5m
• Down obstacle detection range: 5m
• Detection angle: 70° horizontal, 40° vertical
• Detection frequency: 10 Hz (forward, up, down)
• Operating environment: Adequate lighting and clear texture required
Infrared Sensor (obstacle avoidance)
• Up detection range: 2m
• Down detection range: 12m
• Up detection angle: 27°
• Down detection angle: 2°
• Detection frequency: Up 50 Hz, Down 50 Hz
• Operating environment: Large, diffuse, or reflective obstacles

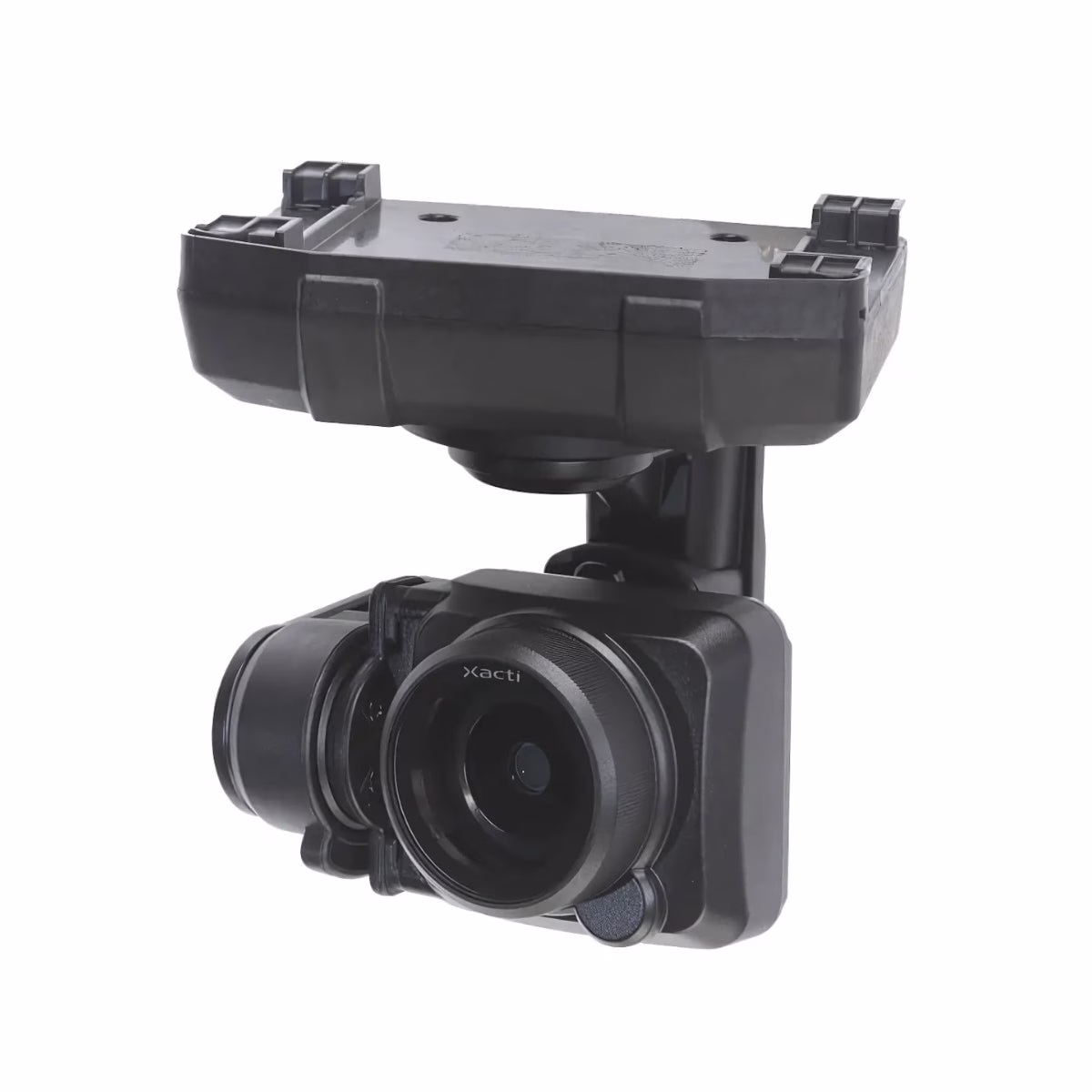

Standard Camera — CX-GB100
• Sensor size: 1-inch
• Effective pixels: 20 megapixels
• Shutter: Mechanical
• Still image formats: JPEG / DNG / JPEG+DNG
• Still image resolution options: 20MP / 15MP / 10MP
• Compression: Superfine / Fine / Normal
• Video formats: MOV / H.264
• Video quality: 4K 30fps; 2.7K 60/30fps; Full HD 120/60/30fps; HD 60/30fps; nHD 240/120/60/30fps
• Video recording time: Up to 60 min; auto-split options
• Recording media: microSD, UHS U3 or V30 / Video V30
• Focus modes: Single AF / Continuous AF / MF; Multi AF / Spot AF area
• Exposure compensation: -2EV to +2EV (1/3EV steps)
• Data encryption: Optional; can be enabled/disabled on recording media
Camera Gimbal
• Axes: 3-axis
• Pan range: ±85°
• Tilt range: -115° to +45°
• Max speed: Pan 60°/s; Tilt and Roll 100°/s
• Control accuracy: ±0.02°
• Switching method: One-touch camera switching (drone can remain powered on)
TAITEN Smart Controller
• Display: 7-inch, 1200×1920 resolution, 1500 nits brightness (daylight readable)
• Operating system: Android 13
• App: ACSL TAKEOFF (pre-installed)
• Link system: ACSL Fides-Link
• Operating bands: Dual-band 2.4 GHz + 5.8 GHz
• Encryption: AES-256
• Range: 6+ miles / ~10 km (unobstructed, low interference; varies with regulations and environment)
• Wi-Fi: Supported
• Runtime: Up to 8 hours
• Power: USB-C charging and power input
• IP rating: IP54
• Operating temp: -20°C to 60°C (-4°F to 140°F)
• Storage temp: -20°C to 50°C (-4°F to 122°F)
• Charging temp: 0°C to 45°C (32°F to 113°F)
• Multi-controller pairing: Up to 3 controllers per aircraft
• Controls: 2-axis sticks; 2× gimbal wheels; 3-state mode switch (AUT/POS/MAN); Go-Home, Land, Emergency, Power buttons
• Customizable inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
• I/O: HDMI out, USB-C, USB-A 2.0, microSD, Ethernet, 3.5mm audio, tripod mount
• Sensors: GNSS module, ambient light sensor (auto-brightness), microphone, vibration motor, connection LED, battery LED
• Physical: Approx. 10.6 × 6.5 × 2.7 in; ~3.2 lb (~1.45 kg)
• NDAA compliance: Yes
• Remote ID: Compliant
Battery
• Type: Lithium-ion
• Capacity: 94 Wh
• Quantity in bundle: 5 smart batteries
Compliance Summary
• NDAA: Yes (aircraft + TAITEN controller)
• Remote ID: Compliant
• DIU Blue UAS: Not currently listed
• Link security: AES-256 via ACSL Fides-Link, dual-band
CX-GB300 Multispectral Camera
• Model: CX-GB300
• Sensor: 1-inch, 20MP effective pixels
• Focal length (35mm equiv): 28mm
• FOV: H64°, V44°, D73°
• Aperture: f/2.8 to f/11
• Shutter: Mechanical (8–1/2000s) and electronic (8–1/8000s)
• ISO: Auto, ISO 125–6400
• Still image: RGB TIFF 16-bit, 2720×1814 (5MP output)
• Live view: MJPEG Full HD at 20fps
• Storage: microSD UHS U3 / V30, up to 512GB
• Gimbal: 3-axis; Pan ±85°, Tilt -115° to +45°, Roll ±30° mechanical; ±0.02° control accuracy
• Interface: USB (UVC / control signal); 10-pin pogo connector
• Accessories: triple bandpass filter (included with camera); solar sensor (integrated)
• IP rating: IP4X
• Operating temp: 0°C to 40°C
• Weight: 200g
• Dimensions: 78 × 99 × 93mm
