Autel EVO MAX 4T XE (Max Power Bundle) Promotion

Description

Autel EVO Max 4T XE Max Power Bundle: Bonus Batteries and Charger Included with This Promotion

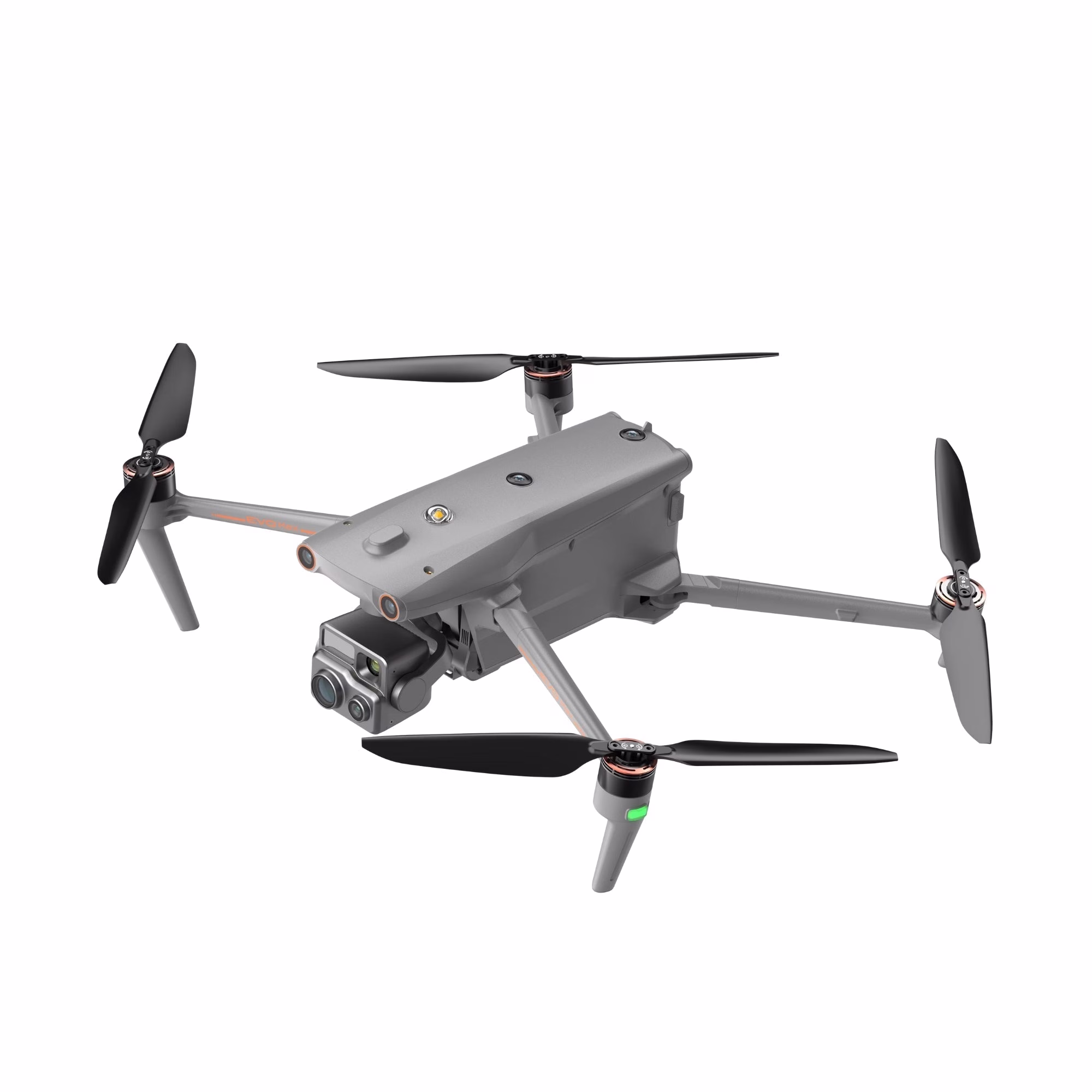

The Autel EVO Max 4T XE is an enterprise inspection platform built around Autel Autonomy’s autonomous flight technology, delivering global path planning, 3D scene reconstruction, and reliable return-to-home capability across complex, signal-degraded environments.
A binocular fisheye vision and millimeter-wave radar sensor fusion system provides 720° all-round obstacle sensing, supporting all-weather operation for programs that cannot pause for marginal conditions.
Key Features and Benefits
• 720° obstacle avoidance: binocular fisheye vision and millimeter-wave radar enable all-weather sensing.
• SkyLink 3.0 transmission: 12.4-mile range sustains command links across long-distance program deployments.
• A-Mesh 1.0 networking: connects multiple aircraft and ground terminals without centralized network infrastructure.
• Triple-battery bundle: three 120Wh batteries support extended multi-site inspection rotations per program.
• Multi-charger included: recharges multiple batteries simultaneously to sustain continuous fleet operations.
• Quad-sensor payload: 10x optical zoom, wide-angle, thermal, and laser rangefinder in one gimbal.
• High-precision visual navigation: SLAM-based positioning maintains stability in GPS-denied environments.
• Hot-swappable batteries: field-replaceable packs support uninterrupted multi-aircraft program operations.
• IP43 ingress protection: rated for sustained operation in light rain and dusty field conditions.
• Wide operating range: functions across -20°F to 122°F for year-round program deployment.

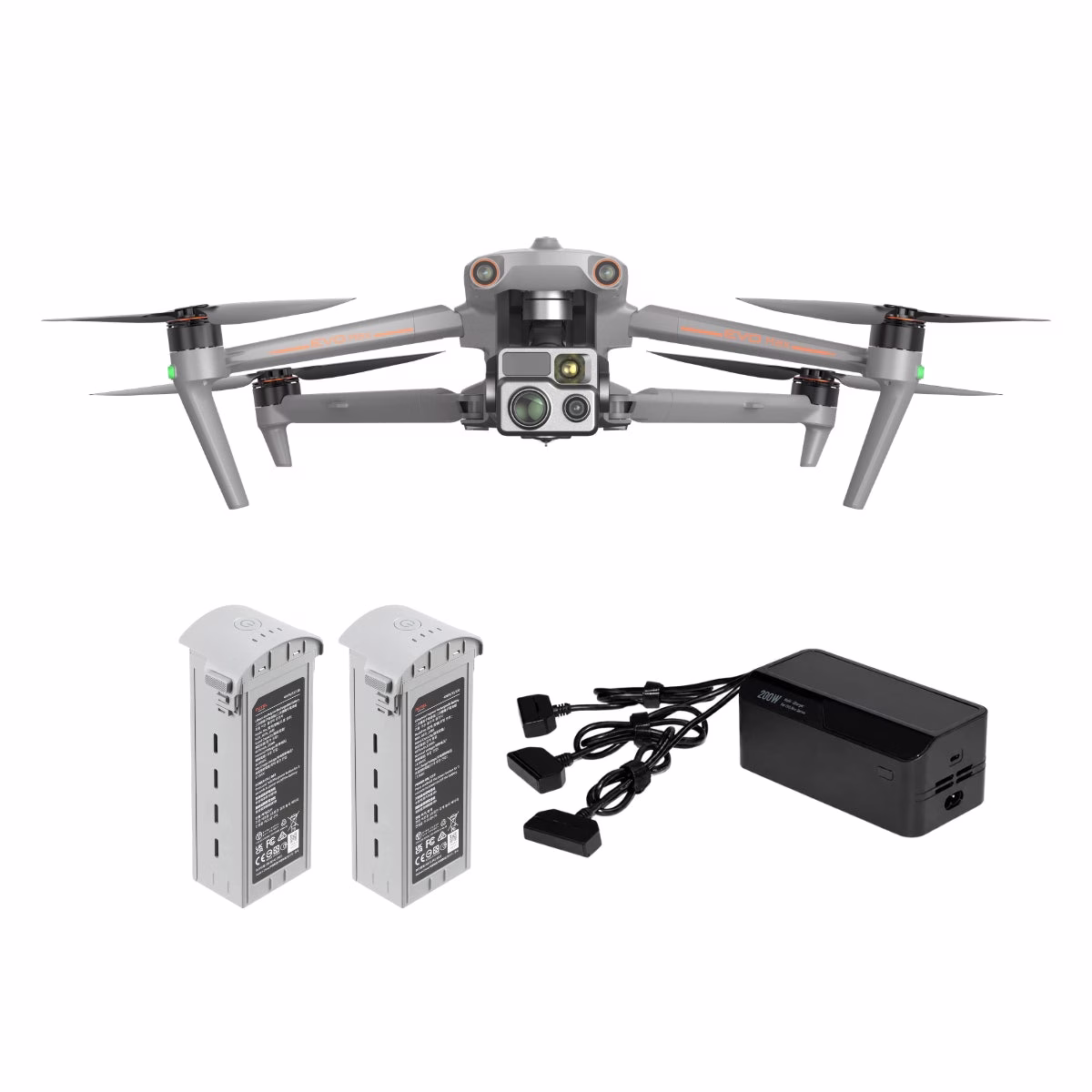

The Max Power Bundle adds two additional EVO Max Smart Flight Batteries and an EVO Max Series Multi-Charger to the standard EVO Max 4T XE package, extending field rotation capacity from one battery to three.
Combined with the FusionLight 4T XE payload’s 10x optical zoom, wide-angle, thermal, and laser rangefinder sensors, this bundle is built for fleet programs running inspection, surveying, and public safety missions at scale.
A Platform Built to Scale Across Inspection Programs
Enterprise inspection programs depend on three things working together: sensor accuracy, all-weather reliability, and minimal downtime between missions. The EVO Max 4T XE addresses all three within a single airframe. Its quad-sensor FusionLight payload captures zoom, wide-angle, thermal, and laser rangefinder data in one deployment, eliminating the need to swap payloads between mission types.
A-Mesh 1.0 networking extends this further by allowing multiple aircraft and ground terminals to connect freely across long distances, obstacles, and no-network areas, supporting collaborative multi-aircraft operations at program scale. The Max Power Bundle’s three-battery rotation and included multi-charger remove the most common constraint on extended fleet deployments: waiting on a single battery to recharge between flights.

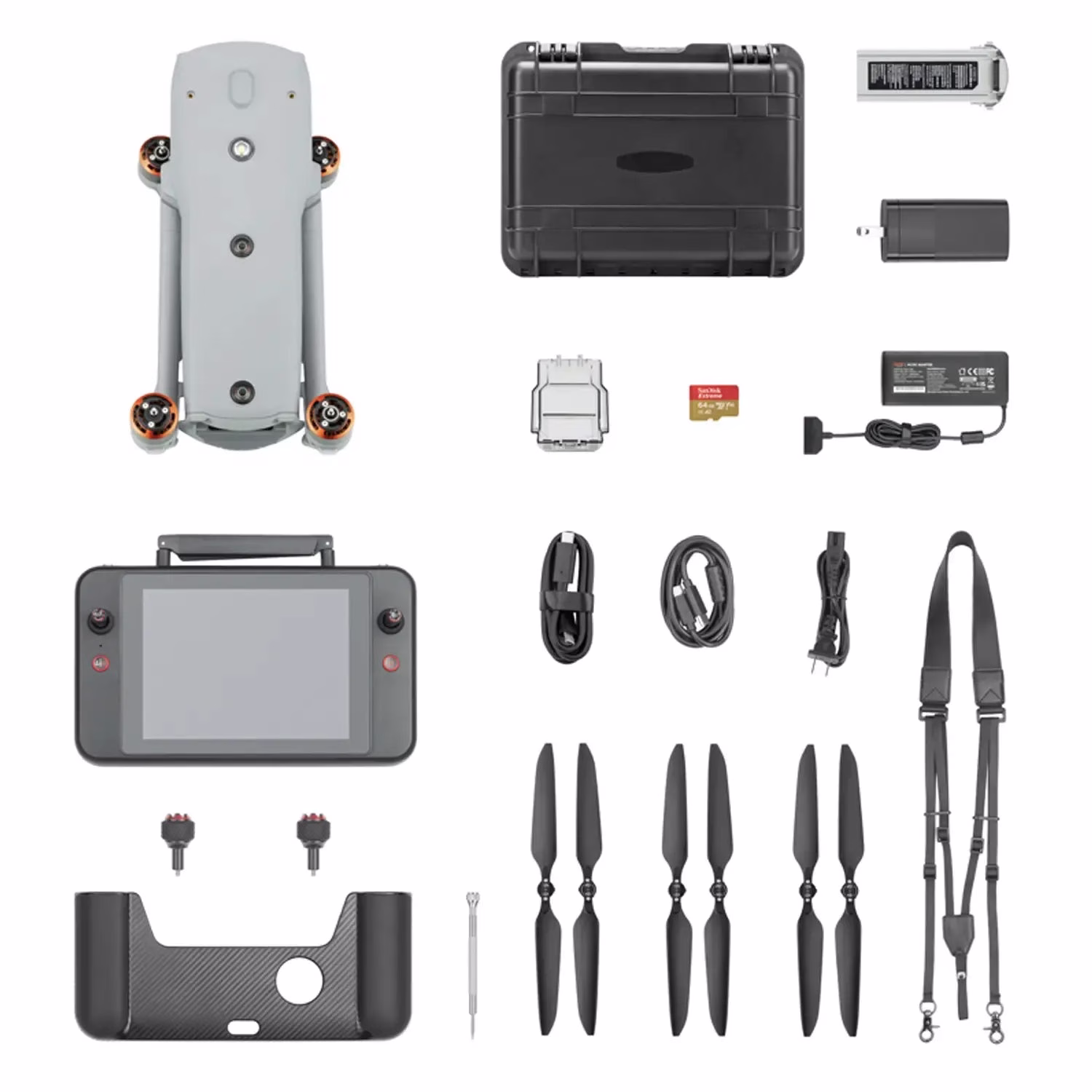

Compatibility and System Integration
• Autel Smart Controller V3: integrated controller for flight operation and live FusionLight camera feed (included).
• EVO Max 4 Series Intelligent Flight Battery: standard battery included with the base aircraft bundle (included).
• EVO Max Smart Flight Battery: two additional 120Wh batteries included as part of the Max Power Bundle promotion (included).
• EVO Max Series Multi-Charger: simultaneous multi-battery charging unit included with this promotion (included).
• EVO Max 4 Series Rugged Case: protective transport case for the full aircraft and accessory kit (included).
• 64GB MicroSD Card: onboard storage for FusionLight camera data capture (included).
• FusionLight 4T XE camera payload: 10x zoom, wide-angle, thermal, and laser rangefinder gimbal (included).
• Autel SkyLink 3.0: proprietary transmission protocol supporting 12.4-mile operational range (included).
• Autel Robotics Care plans: optional extended warranty and service coverage (sold separately).
• A-Mesh compatible devices: additional drones or ground terminals for mesh network expansion (sold separately).
Applications and Use Cases
• Enterprise inspection programs: thermal and zoom cameras identify infrastructure faults without de-energizing equipment.
• Emergency response fleets: thermal imaging locates subjects in low-visibility or nighttime conditions.
• Law enforcement agencies: long transmission range supports situational awareness from a safe distance.
• Geographical survey operations: laser rangefinder and zoom camera capture precise distance and terrain data.
• Firefighting and rescue programs: thermal imaging identifies hotspots through smoke for tactical decisions.
• Multi-site inspection contractors: triple-battery rotation sustains crews across consecutive program deployments.
• Remote area operations: A-Mesh networking maintains control links in mountainous or no-network areas.
The EVO Max 4T XE Max Power Bundle is built for enterprise programs that need accuracy, all-weather reliability, and minimal downtime across distributed inspection and public safety operations. Its quad-sensor payload, A-Mesh scalability, and triple-battery endurance make it a dependable platform for fleet-level deployment.
Dronefly brings years of UAS industry experience to every customer relationship, with deep expertise in enterprise integration, payload configuration, and program-level fleet support. When you source the Autel EVO Max 4T XE Max Power Bundle through Dronefly, you gain a solutions partner invested in the long-term performance of your inspection program.
Configure your system and order today at Dronefly.

Aircraft
• Weight (battery & propellers included): 1640 g (3.62 lbs, ABX40 battery, Fusion 4T gimbal, propellers)
• Maximum take-off mass: 1999 g (4.41 lbs)
• Maximum take-off mass for C2 certification (EU): 1890 g (4.17 lbs)
• Dimensions unfolded (incl. propellers): 562 × 651 × 147 mm
• Dimensions unfolded (excl. propellers): 318 × 400 × 147 mm
• Dimensions folded (excl. propellers): 257 × 145 × 131 mm
• Diagonal wheelbase: 466 mm (1.53 ft)
• Propeller dimension: 11 inches
• Propeller weight: 10.5 g
• Maximum propeller rotational speed: 8000 RPM
• Maximum ascent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 8 m/s
• Maximum descent speed: Slow 3 m/s, Smooth 5 m/s, Standard 6 m/s, Ludicrous 6 m/s
• Maximum horizontal speed (windless): Slow 3 m/s, Smooth 10 m/s, Standard 15 m/s forward/back, 10 m/s sidewards, Ludicrous 23 m/s forward, 18 m/s backward, 20 m/s sidewards
• Maximum service ceiling: 4000 m (ABX40), 3000 m (ABX41)
• Maximum flight altitude limit (in app): 800 m (2625 ft)
• Maximum flight time (windless): 42 minutes
• Maximum hovering time (windless): 38 minutes
• Maximum wind resistance: 12 m/s (27 mph)
• Ingress protection rating: IP43 (custom service)
• Maximum tilt angle: Slow 10°, Smooth 30°, Standard 30°, Ludicrous 36°
• Maximum angular velocity: Pitch 300°/s, Heading 120°/s
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Internal storage: 128 GB (64 GB available depending on firmware)
• GNSS system: GPS, Galileo, BeiDou, GLONASS
Wi-Fi & Connectivity
• Wi-Fi frequencies: 2.400–2.476 GHz, 2.400–2.4835 GHz, 5.15–5.25 GHz, 5.17–5.25 GHz (DE), 5.725–5.829 GHz, 5.725–5.850 GHz
• Wi-Fi protocol: 802.11a/b/g/n/ac/ax, supports 2×2 MIMO
• Wi-Fi EIRP: 2.4G ≤30 dBm (FCC), ≤20 dBm (CE/SRRC/UKCA), ≤12.14 dBm (MIC)
• 5.2G ≤30 dBm (FCC), ≤23 dBm (CE/UKCA)
• 5.8G ≤30 dBm (FCC/SRRC), ≤14 dBm (CE/UKCA)
• Hovering accuracy vertical: ±0.1 m (vision), ±0.5 m (GNSS)
• Hovering accuracy horizontal: ±0.3 m (vision), ±0.5 m (GNSS)
Gimbal
• Mechanical range 4T XE: Pitch -135° to 45°, Yaw -45° to 45°, Roll -45° to 45°
• Mechanical range 4N: Pitch -135° to 45°, Yaw -50° to 50°, Roll -45° to 45°
• Controllable pitch range: -90° to 30°
• Stabilization: 3-axis mechanical (pitch, yaw, roll)
• Max pitch control speed: 100°/s
• Angular vibration range: < 0.005°
EVO Max 4T XE Zoom Camera
• Sensor: 1/2" CMOS, 48 MP
• Lens: 11.8–43.3 mm, 64–234 mm equivalent, f/2.8–f/4.8
• Focusing distance: 5 m to ∞
• ISO (auto): 100–6400
• Shutter speed: 1/8 s ~ 1/10000 s
• Optical zoom: 2.7–10×, up to 160× hybrid zoom
• Photo resolution: JPG 4000×3000, 8192×6144; DNG 4000×3000
• Video resolution: 4000×3000 30P
EVO Max 4T XE Thermal Camera
• Sensor: Uncooled VOx Microbolometer
• FOV: 61°
• Focal length: 9.1 mm, f/1.0
• Temperature accuracy: ±2°C or ±2%
• Video resolution: 640 × 512 30P
• Photo size: 640 × 512
• Measurement modes: Center, spot, rectangular
• Temperature ranges: -20°C to 150°C, 0°C to 550°C
• Palettes: White Hot, Black Hot, Ironbow, Rainbow
Laser Rangefinder
• Wavelength: 905 nm
• Accuracy: ±(1 m + D×0.15%)
• Range: 5–1200 m
Wide-Angle Camera
• Sensor: 1/1.28" CMOS, 50 MP
• Lens: DFOV 85°, 4.5 mm (23 mm equivalent), f/1.9
• ISO: Photo 100–6400, Video up to 64000
• Shutter: Photo 0.5 s ~ 1/8000 s, Video 1/30 s ~ 1/8000 s
• Video resolution: 4000×3000 30P
• Photo resolution: 4000×3000 or 8000×6000
Image Transmission
• Frequencies: 900M, 2.4G, 5.2G, 5.8G (region-dependent)
• Max transmission distance FCC: 15 km
• Max transmission distance CE: 8 km
• Controller: Autel Smart Controller V3
• EIRP 900M: ≤30 dBm
• EIRP 2.4G: ≤30 dBm (FCC/ISED), ≤20 dBm (CE/SRRC)
• EIRP 5.8G: ≤30 dBm (FCC/SRRC), ≤14 dBm (CE)
Millimeter-Wave Radar System
• Operating frequencies: 60–64 GHz, 24.0–24.25 GHz
• EIRP: 60G ≤20 dBm, 24G ≤20 mW
• Sensing range (60G): Up 0.3–20 m, Down 0.15–80 m, Forward/Backward 0.3–50 m
• Sensing range (24G): Down 0.8–12 m
• FOV: Horizontal ±60°/±22°, Vertical ±30°/±20°
Visual Obstacle Sensing
• Forward: 0.5–31 m
• Backward: 0.5–25 m
• Sideward: 0.5–26 m
• Upward: 0.2–26 m
• Downward: 0.3–23 m
• FOV forward/backward: 60° H, 80° V
• FOV upward/downward: 180° sideward, 120° forward/backward
Autel Smart Controller V3
• Display: 7.9 inches, 2000 nits, 2048×1536, 60 Hz
• Battery: 5800 mAh, 11.55 V, 67 Wh
• Operating time: 2.5 hr (max brightness), 4.0 hr (50%)
• Charging time: 120 minutes
• Max transmission distance: 15 km (FCC), 8 km (CE)
• IP rating: IP43
• Internal storage: 128 GB
• Operating temperature: -20°C to 40°C
• Wi-Fi: 802.11a/b/g/n/ac, 2×2 MIMO
• Wi-Fi frequencies: 2.4G & 5.8G
Smart Battery
• Dimensions: 158.4 × 74.3 × 50.7 mm
• Operating temperature: -20°C to 50°C
• ABX40 capacity: 8070 mAh, 14.88 V, 120 Wh, 520 g
• ABX41 capacity: 9248 mAh, 14.76 V, 136.5 Wh, 533 g
• Battery type: LiPo 4S
• Charging temperature: 5°C to 45°C
• Hot swappable: Supported
