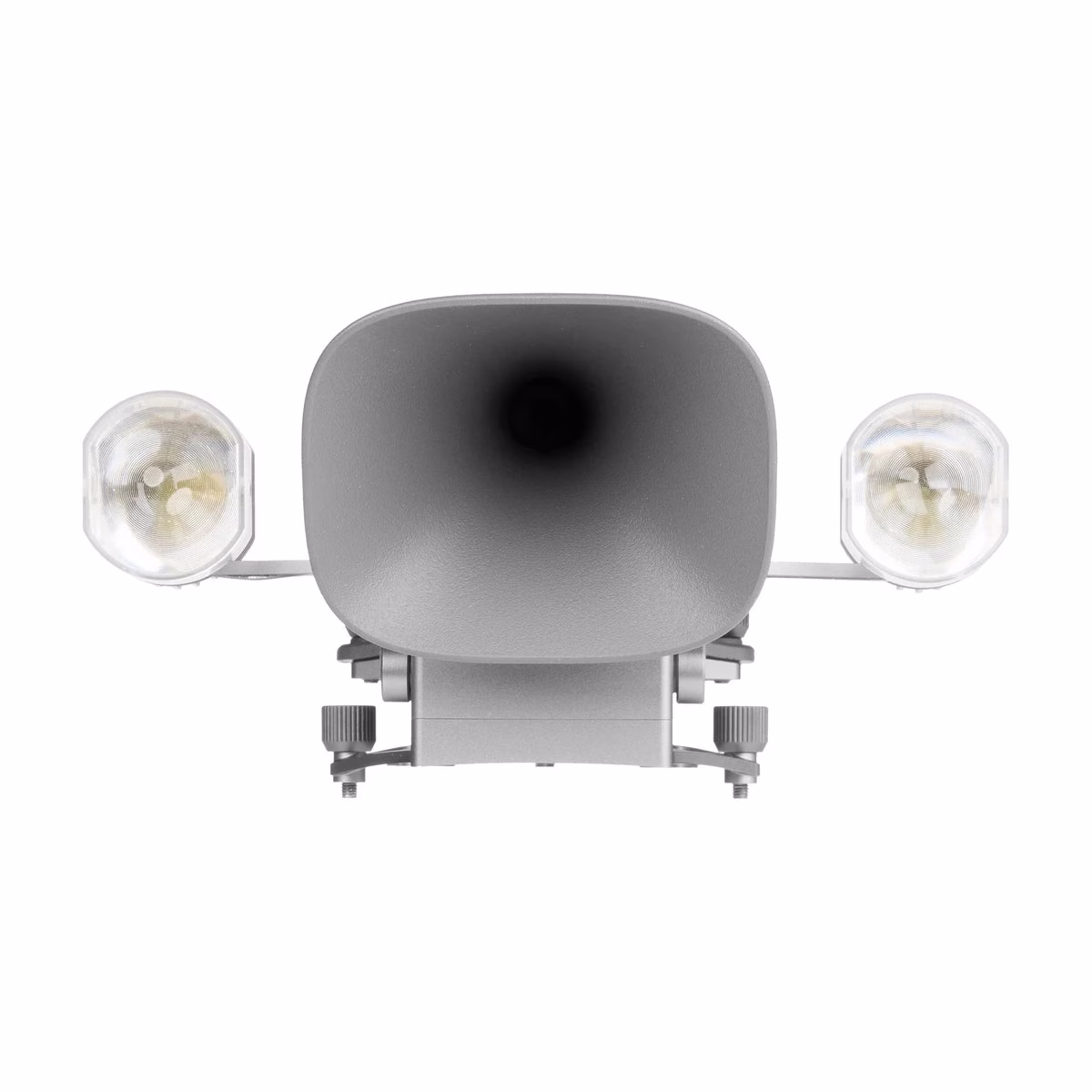

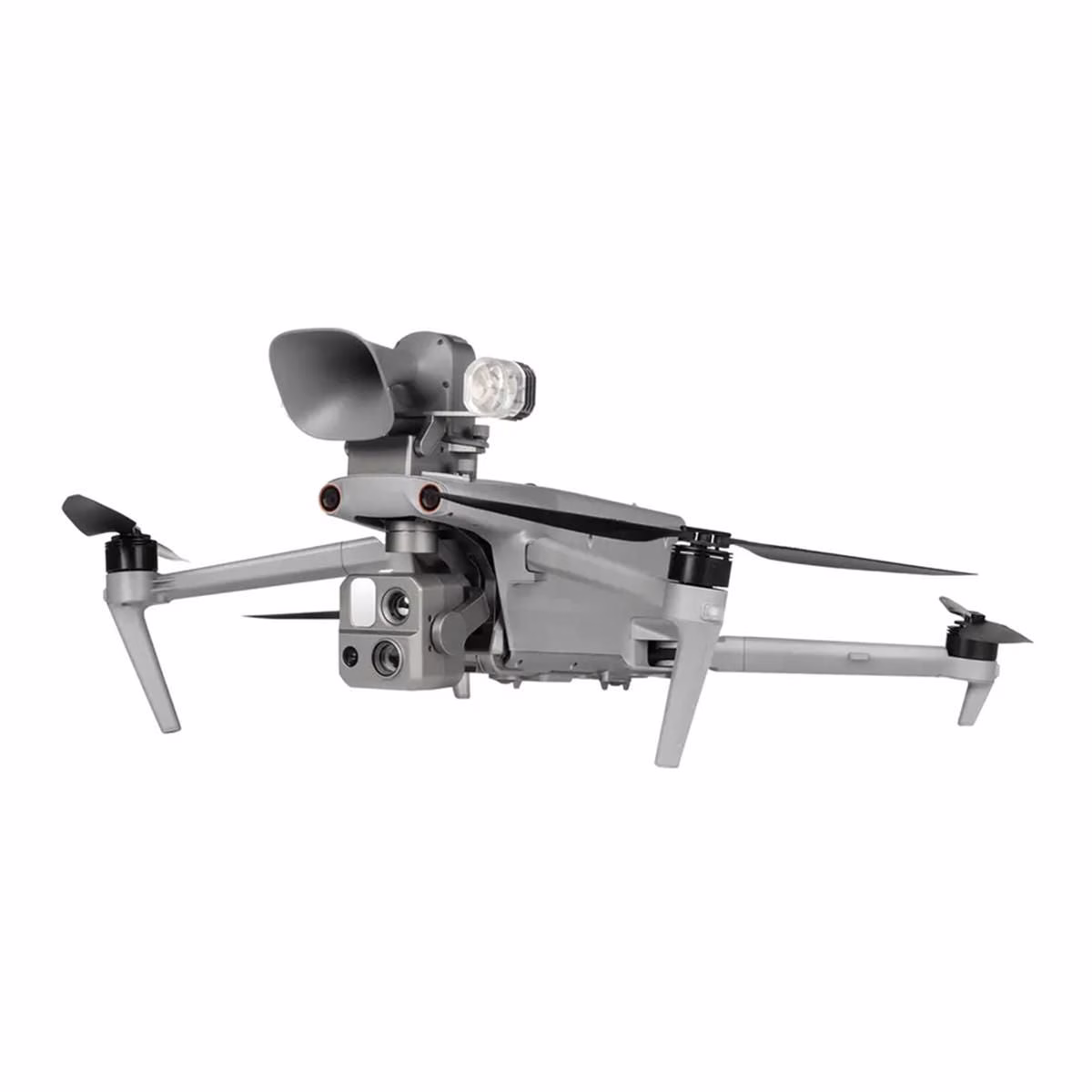

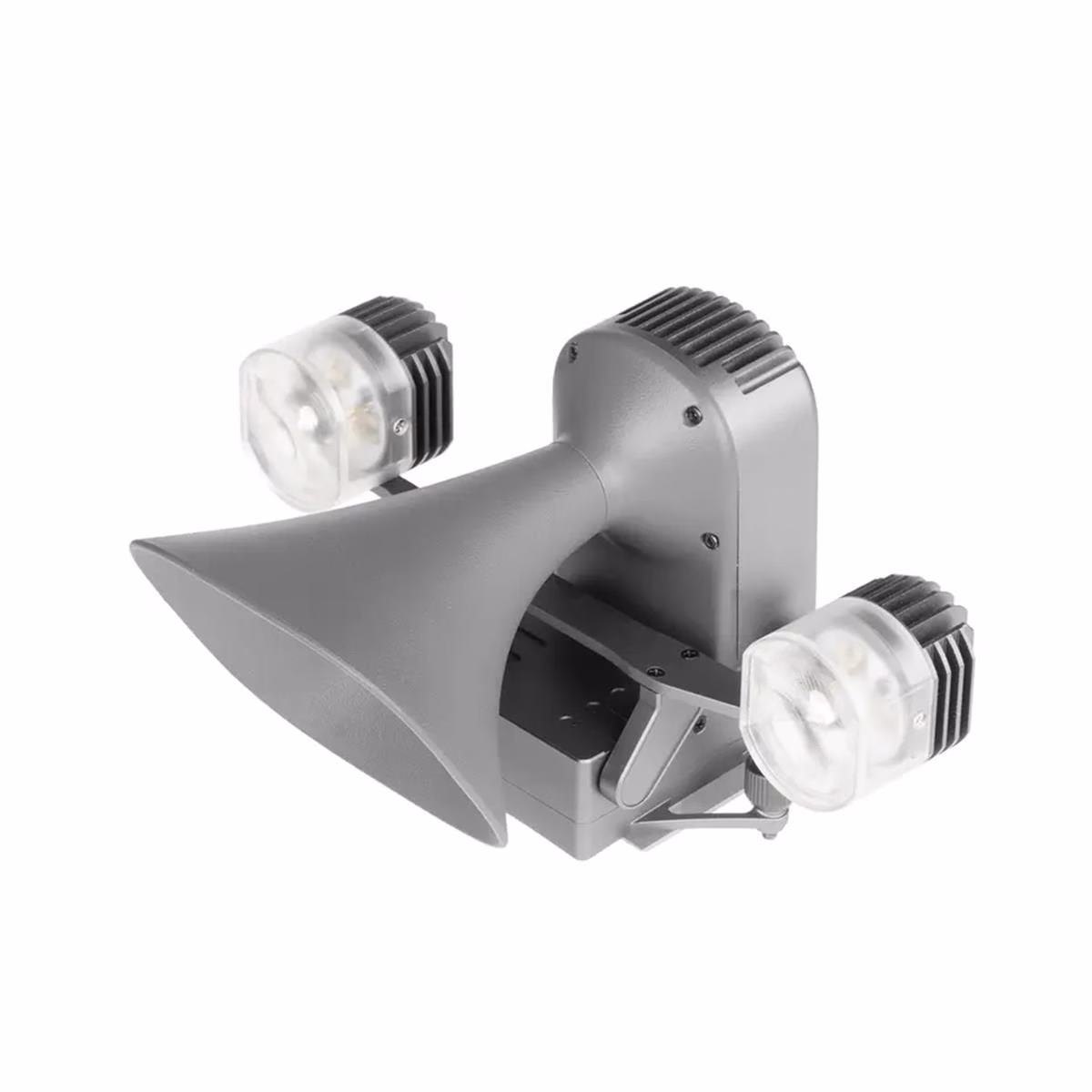

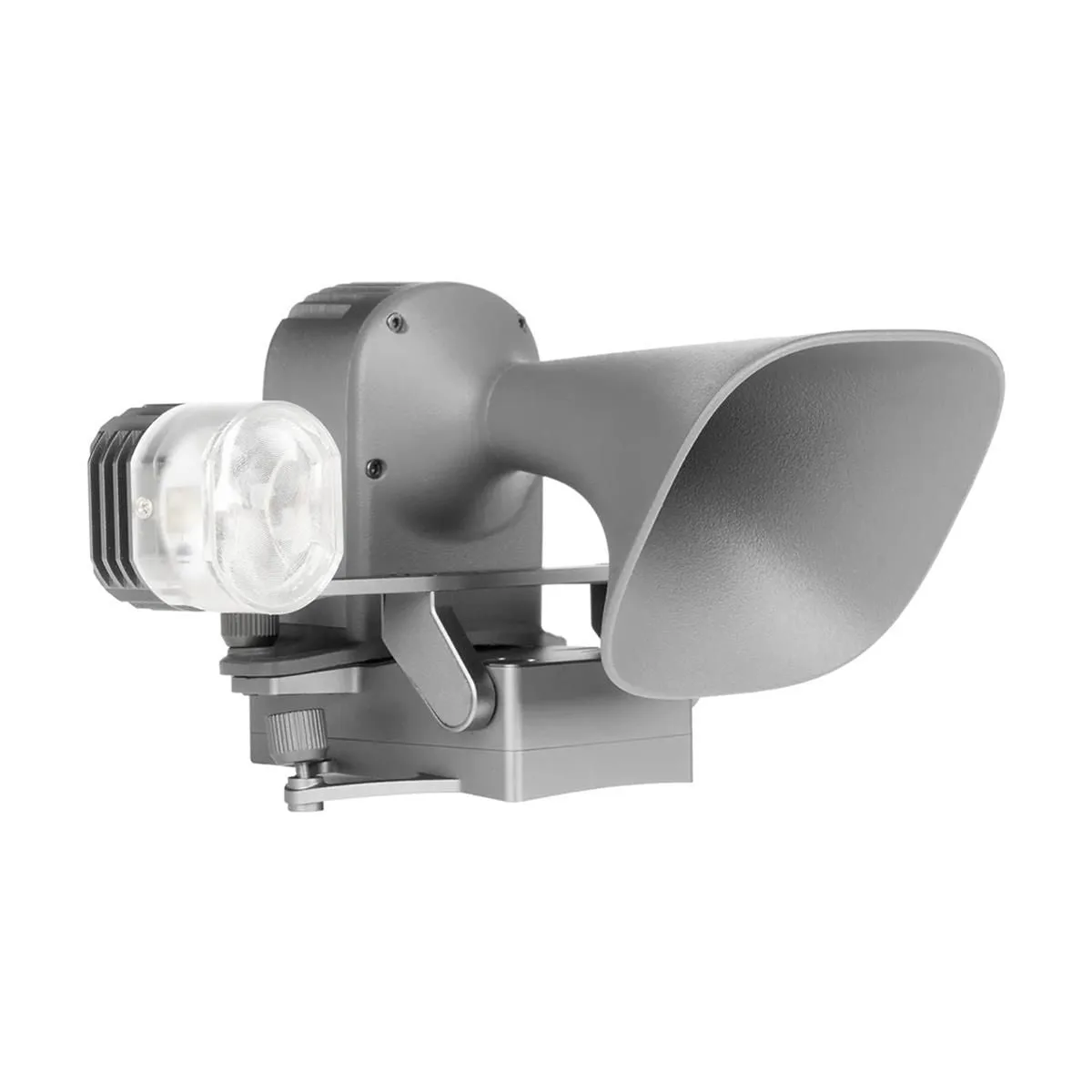

Autel EVO Max Speaker and Spotlight

Description

Autel EVO Max Speaker and Spotlight: Integrated aerial lighting and voice broadcast payload
The Autel EVO Max Speaker and Spotlight is a dual-function payload designed for the Autel EVO Max series drones, combining a high-power searchlight with a remote loudspeaker for aerial communication.
Built for public safety, emergency response, and inspection operations, the device enhances mission effectiveness by enabling both illumination and voice broadcasting from the aircraft. Its intelligent “follow gimbal pitch” capability automatically aligns the spotlight with camera movement, keeping the illuminated area centered on the target.
With adjustable brightness levels and a powerful broadcast speaker, the system supports a wide range of real-world field operations.
Key features and advantages
• Follow gimbal pitch spotlight: Automatically aligns illumination with camera viewing direction.
• 60W aerial spotlight output: Provides powerful lighting for nighttime operations.
• Three brightness levels: Allows lighting adjustment for different environmental conditions.
• Narrow 14-degree beam: Focuses illumination precisely on ground targets.
• Extended illumination range: Lights target areas up to approximately 150 meters.
• Integrated broadcast loudspeaker: Enables aerial voice announcements and warning messages.
• High-output audio system: Produces up to 114 dB sound pressure.
• Long-range broadcast capability: Delivers voice communication up to 300 meters.
• PSDK payload interface: Ensures seamless integration with EVO Max aircraft.
The Autel EVO Max Speaker and Spotlight expands the operational capability of the EVO Max platform by combining two critical mission tools into a single payload. By delivering both powerful illumination and remote communication, it enables operators to safely manage nighttime operations, emergency responses, and aerial announcements from the air.
With decades of UAV industry experience, DSLRPros equips professional drone teams with mission-ready accessories and technical support. Order the Autel EVO Max Speaker and Spotlight from DSLRPros to enhance your EVO Max drone’s operational capability.

General Specifications
• Electrical interface: PSDK interface
• Dimensions: 145 × 116 × 83 mm
• Installation method: standard quick-release mount
• Compatible aircraft: Autel EVO Max series
Spotlight System
• Spotlight power: 60 W
• Lighting angle: 14°
• Lighting distance: 50 m / 100 m / 150 m
• Lighting coverage area: 113 m² / 471 m² / 1063 m²
• Central illuminance: 30 lux / 7 lux / 3 lux
• Spotlight function: follow gimbal pitch with adjustable brightness levels
• Adjustable angle: +30° to -90° controllable gimbal
Speaker System
• Speaker power: 10 W
• Sound pressure level: 114 dB at 1 meter
• Broadcast distance: ≥300 m
Environmental Specifications
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 60 °C
