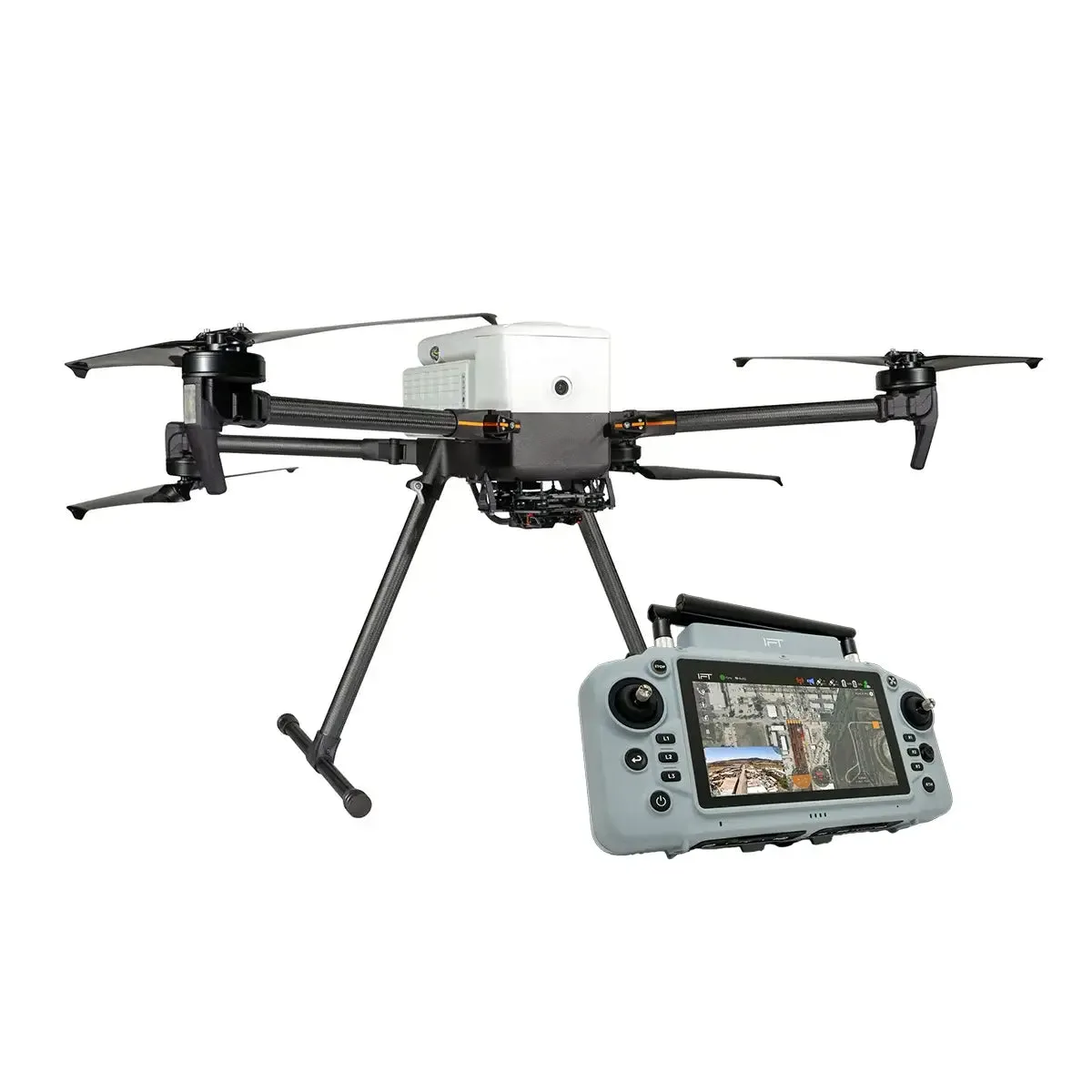

Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station

Description

Mission-ready NDAA-compliant aerial platform
The Inspired Flight IF800 Tomcat paired with the GS-ONE Ground Control Station is engineered for professionals who demand reliability, precision, and adaptability in the field.
Built to meet NDAA compliance, this American-made system provides the performance and flexibility required for critical missions across defense, mapping, utilities, and public safety.
High-performance flight capabilities

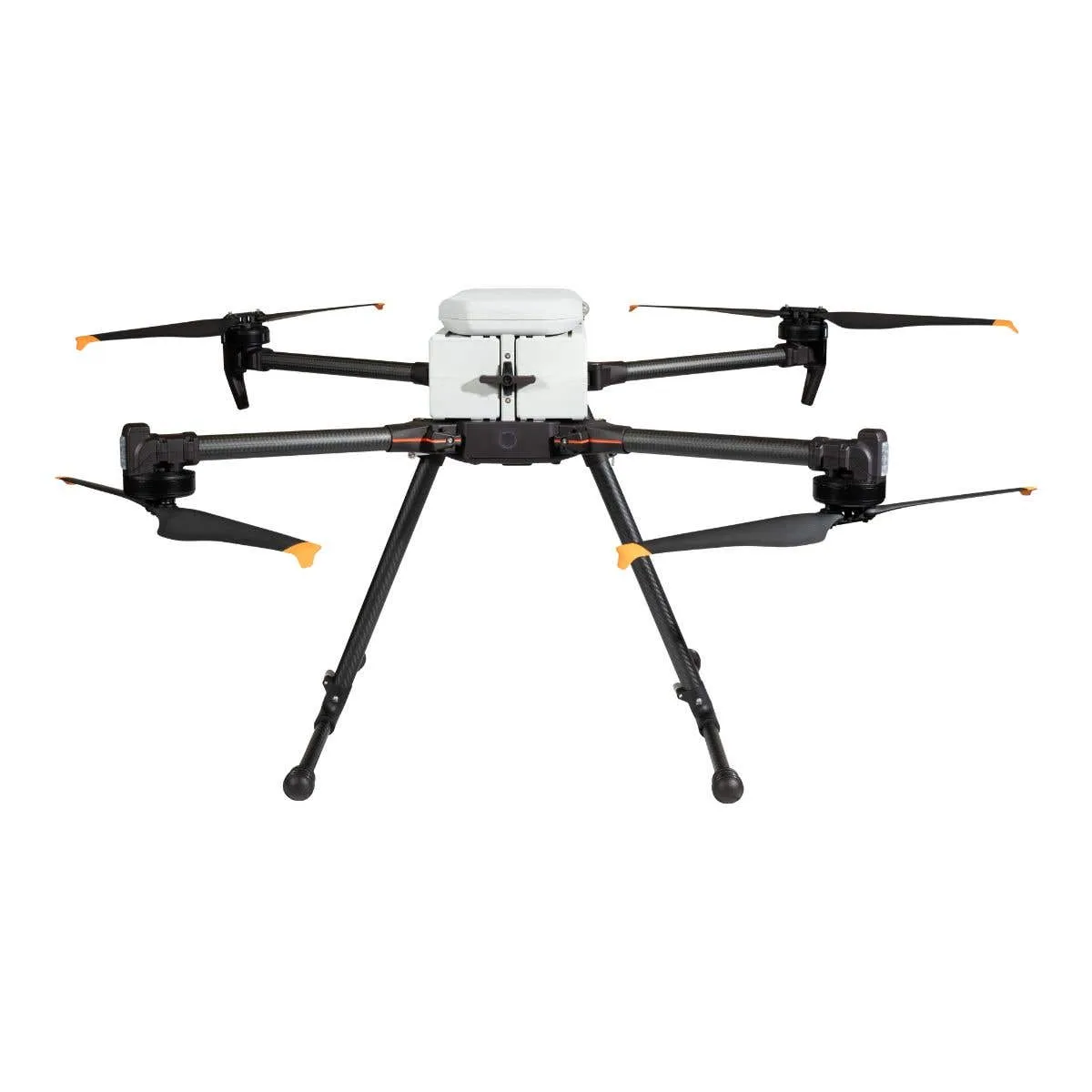

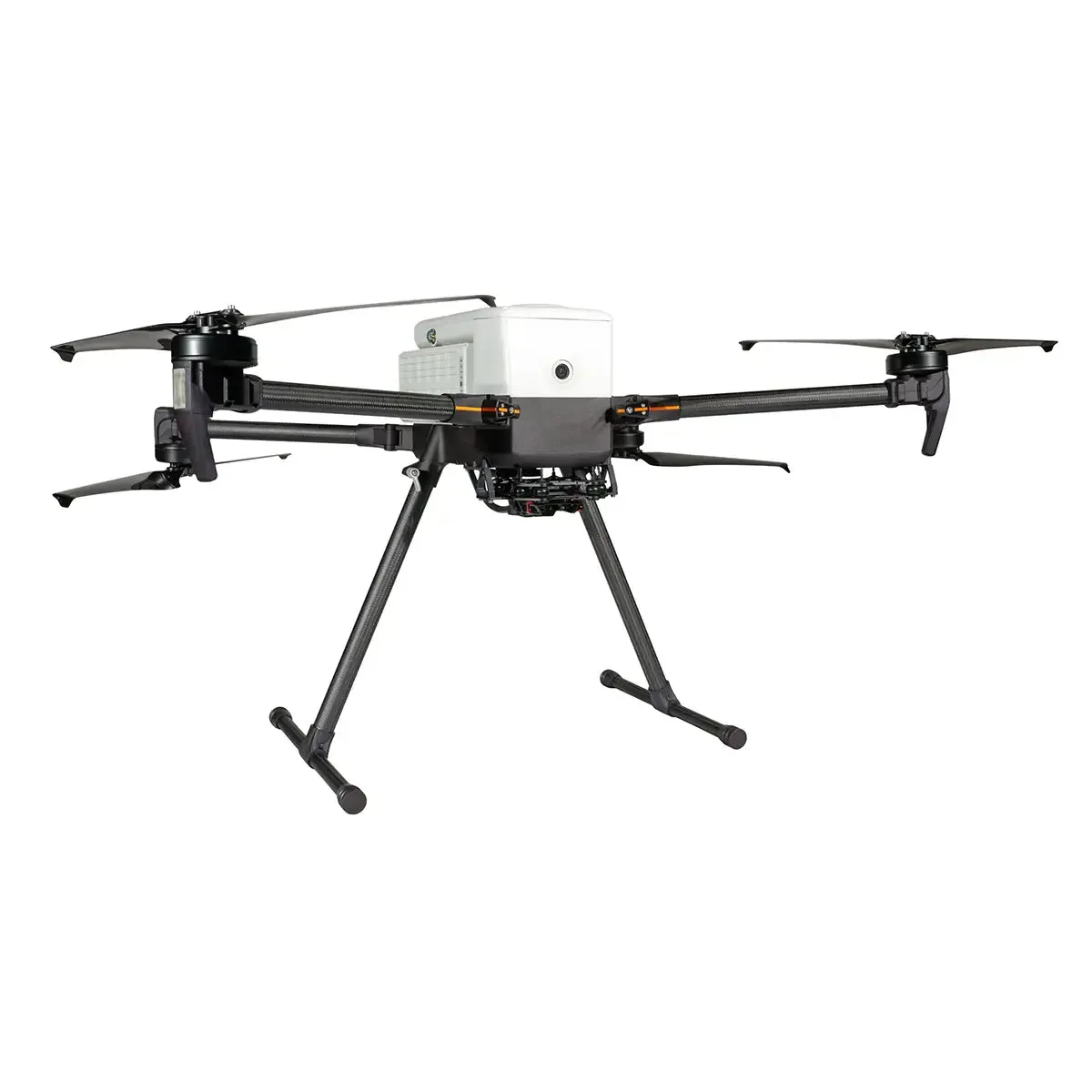

The IF800 is a robust quadcopter designed for maximum efficiency in challenging environments.
• Endurance: Up to 54 minutes of continuous flight per mission.
• Speed & stability: Maximum airspeed of 49 mph with wind resistance up to 23 knots.
• Payload power: Supports payloads up to 6.6 lbs (3.0 kg) for optical, EO/IR, and LiDAR sensors.
• Pre-configured options: Mission-specific payloads ensure rapid deployment.
Pre-configured options: Mission-specific payloads ensure rapid deployment.
Field-proven ground control station

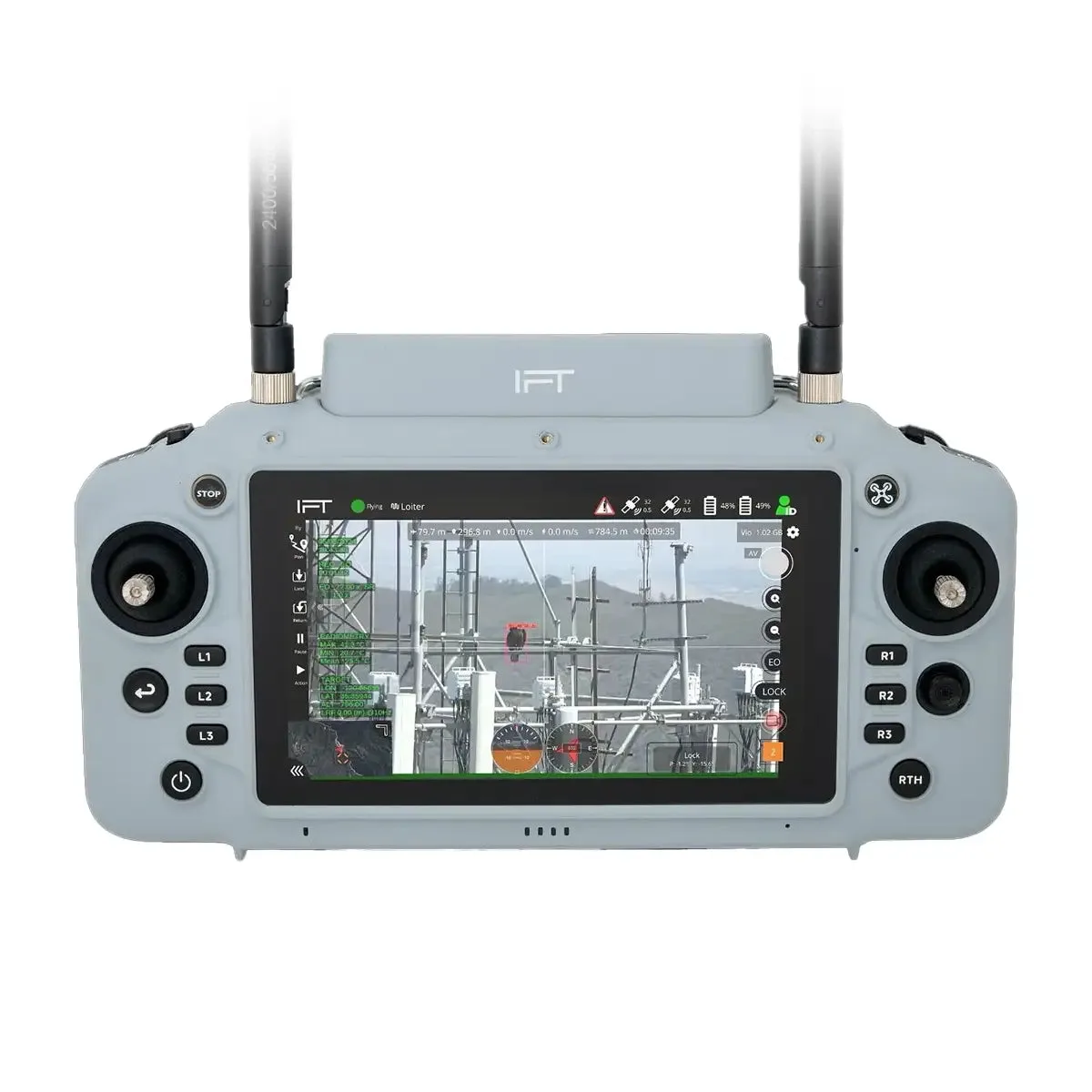

The GS-ONE enhances operational efficiency with rugged, pilot-friendly features:
• Bright & clear interface: 7-inch, 2,000-nit touchscreen for direct sunlight visibility.
• All-weather reliability: IP55-rated design protects against dust and water spray.
• Uninterrupted operations: Hot-swappable batteries allow up to 5 hours of runtime.
• Extended reach: Maintain control and data transmission up to 6 miles.
NDAA-Compliant and Blue UAS-Approved
As an NDAA-compliant and Blue UAS-listed drone, the IF800 offers users a major strategic advantage: it’s engineered to meet federal security requirements from day one.
All key components are sourced from approved suppliers, greatly reducing cybersecurity risks and ensuring long-term parts availability.
Agencies and enterprises operating in regulated sectors benefit from peace of mind knowing the aircraft aligns with U.S. defense and security standards.
Its presence on the Blue UAS Cleared List also accelerates deployment across government and enterprise missions. Procurement teams can adopt the IF800 without lengthy waivers or compatibility concerns.
Real-world applications
The IF800 + GS-ONE combo adapts seamlessly across industries and missions:
• Defense & security: Tactical surveillance and rapid-response missions.
• Mapping & surveying: High-resolution data capture for terrain and construction projects.
• Utilities & infrastructure: Streamlined inspection of power lines, pipelines, and assets.
• Emergency response: Enhanced situational awareness in SAR and disaster relief.
The Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station is more than a drone-it’s a mission-ready aerial system designed to boost productivity and reliability in demanding fields.
With powerful performance, intuitive controls, and rugged construction, this combo delivers the tools professionals need to operate with confidence.

Performance
• Max Ascent Speed: 5 m/s
• Max Descent Speed: 3 m/s
• Max Air Speed: 22 m/s
• Max Wind Resistance: 10 m/s, 12 m/s gusts
• Max Tilt Angle: 30°
• Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
• Operating Temperature: -20°C ~ 45°C
• Operating Humidity: IP43 5% ~ 99%
Physical Features
• Diagonal Size (propeller center to center): 905 mm
• Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
• Folded Size (stow, WxLxH): 36 x 44 x 20 cm
• Empty Weight (w/o batteries): 4.2 kg
• Weight w/ Batteries: 8.5 kg
• Max Gross Takeoff Weight: 11.5 kg
• Max Payload Capacity: 3.0 kg
• Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
• Transport Case Weight (w/ aircraft & GCS): 18 kg
Flight Stack
• Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
• GNSS / Compass: Dual CubePilot Here4 Blue
• Downward Ground Sensor: LightWare SF000/B
• Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
• Payload Interface: IF800 Universal Payload Interface
• Operating Software: Copter by Ardupilot
Flight Modes
• Position Hold: Automatically holds altitude and position, manually change position
• Loiter: Holds altitude and position, precision manual movements using GPS
• Auto: Executes pre-defined waypoint mission
• RTL: Auto returns to takeoff location and lands
• Land: Auto land while maintaining horizontal position
• Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
