WISPR Sony LR1 (61MP) 35mm lens with 200m Laser Rangefinder

Description

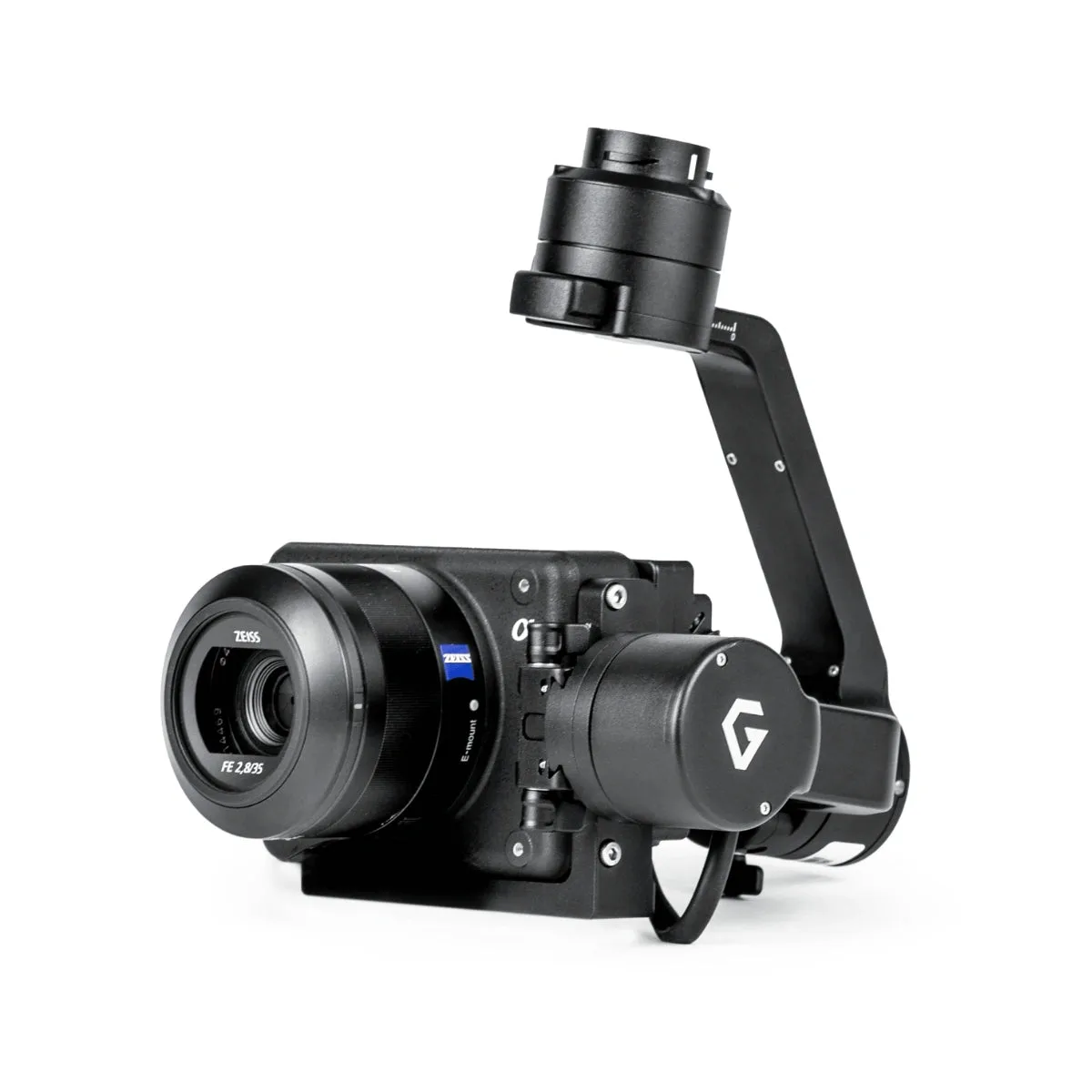

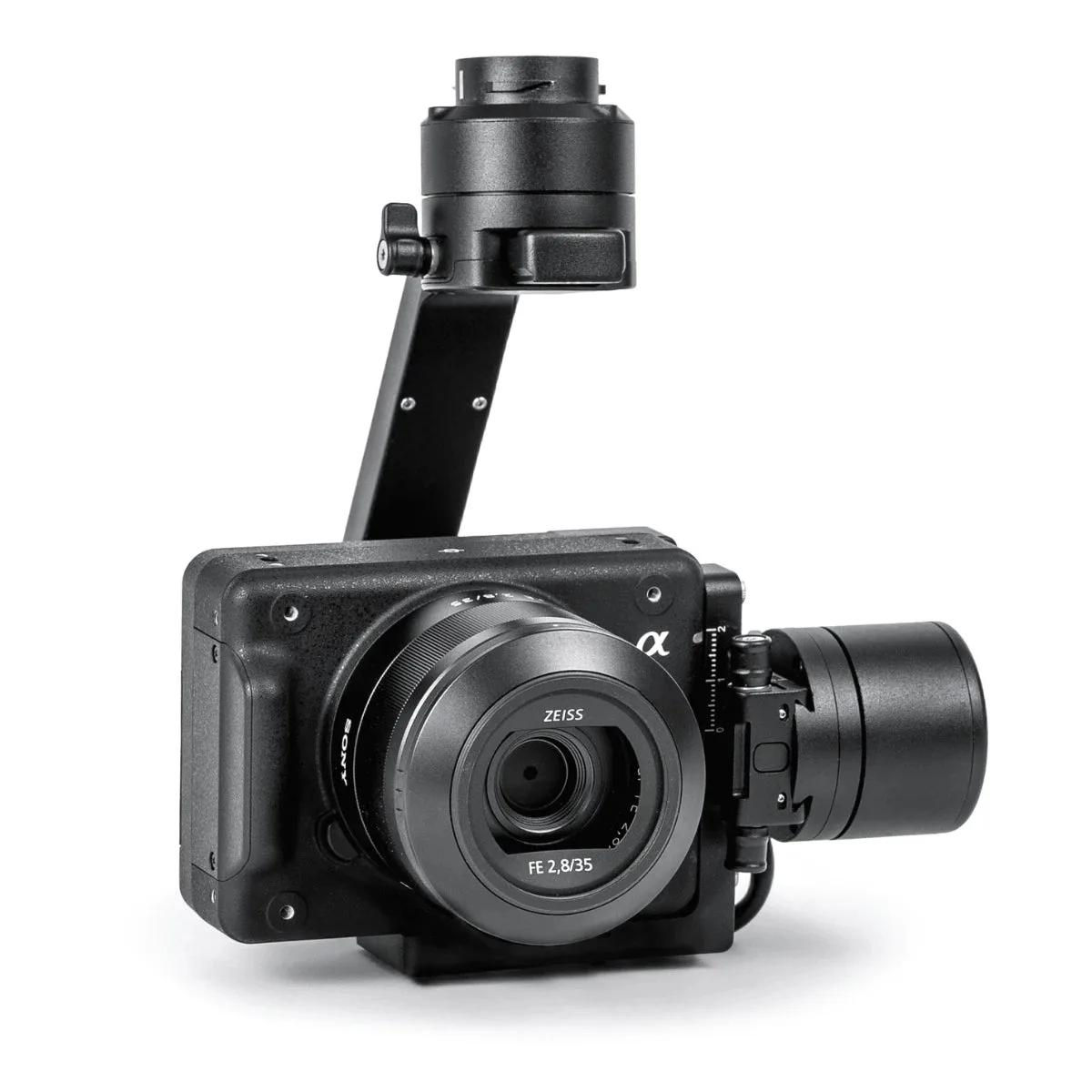

Sony ILX-LR1 61MP 35mm With 200m Laser Rangefinder: Full-Frame Imaging and Real-Time Distance Measurement for the SkyScout Series
The Sony ILX-LR1 61MP 35mm with 200m Laser Rangefinder pairs the full-frame imaging capability of the ILX-LR1 platform with an integrated laser rangefinder, giving field operators a single payload for high-resolution aerial photography and real-time distance measurement on the WISPR SkyScout Series. Built around Sony’s 61-megapixel Exmor R CMOS sensor and a Sony FE Mount 35mm f/2.8 lens with a 62-degree field of view, it captures 9504 x 6336 pixel stills suited to mapping, inspection, and survey work. The integrated rangefinder extends the payload’s operational utility by providing accurate ground distance data up to 200m (656 ft) directly from the air.
The ILX-LR1 imaging platform is unchanged from the base 35mm configuration. ISO sensitivity runs from 100 to 32000, expandable to 102400, with exposure compensation of +/- 5.0 EV in selectable 1/3 or 1/2 EV steps. The dual shutter system covers mechanical speeds from 1/4000 to 30 seconds and electronic speeds from 1/8000 to 30 seconds across varied lighting conditions. Video capture reaches 4K at 59.94fps in XAVC S or XAVC HS format, with 1080P available at up to 119.88fps. A 3-axis stabilized gimbal with ±0.02° angular vibration tolerance keeps imagery sharp and rangefinder measurements stable throughout flight.
Sony ILX-LR1 61MP 35mm With Rangefinder Core Features and Advantages
• Full-frame sensor: 1.38-inch Exmor R CMOS delivers 61-megapixel aerial image output.
• Integrated rangefinder: laser distance measurement up to 200m (656 ft) from the air.
• 35mm f/2.8 lens: 62-degree FOV balances subject detail with effective ground coverage.
• High-resolution output: 9504 x 6336 pixel capture supports survey-grade aerial deliverables.
• Dual shutter system: mechanical to 1/4000 and electronic to 1/8000 for varied conditions.
• Wide ISO range: sensitivity from ISO 100 to 32000, expandable to 102400 for low light.
• 4K video capture: records at up to 59.94fps in XAVC S and XAVC HS formats.
• High-frame-rate video: 1080P recording at up to 119.88fps for slow-motion applications.
• 3-axis stabilized gimbal: ±0.02° vibration tolerance maintains sharpness throughout flight.
• Operating range: functions reliably between 32°F and 122°F across field environments.
The Sony ILX-LR1 61MP 35mm with 200m Laser Rangefinder gives field operators more than imaging capability — it adds a real-time distance measurement layer that improves situational awareness and operational precision on inspection, survey, and mapping missions. For operators who need both high-resolution imagery and confirmed ground distance data from a single deployable payload, this configuration eliminates the need for separate tools on the same flight.
DSLRPros stocks the full range of WISPR SkyScout Series payload configurations, including this rangefinder-equipped variant of the ILX-LR1 61MP. Our team can help you determine whether the standard 35mm, the 50mm, or the rangefinder configuration best fits your specific workflow. Order the Sony ILX-LR1 61MP 35mm with 200m Laser Rangefinder at DSLRPros today.

Camera
• Sensor: Exmor R CMOS sensor
• Sensor size: 1.38″ Full Frame
• Sensor width: 1.41″
• Sensor height: 0.94″
• Photo resolution: 61 MP
• Image size: 9504 × 6336
• Photo formats: JPEG, RAW
• Video resolution: 4K at 59.94 fps (max)
• Video resolution: 1080p at 119.88 fps (max)
• Video formats: XAVC S (MPEG-4 AVC/H.264), XAVC HS (MPEG-H HEVC/H.265)
• Shutter type: Mechanical shutter / Electronic shutter
• Shutter speed (mechanical): 1/4000 s to 30 s
• Shutter speed (electronic): 1/8000 s to 30 s
• Movie shutter speed: 1/8000 s to 1 s
• Exposure settings: ±5.0 EV (1/3 EV and 1/2 EV steps selectable)
• ISO sensitivity (stills): ISO 100–32000, expandable to ISO 50–102400
• ISO sensitivity (movies): ISO 100–32000 equivalent
• Auto ISO range: ISO 100–12800
• PAL/NTSC: Supported
Camera Lens
• Lens option: Sony FE Mount 35 mm f/2.8
• Field of view (35 mm f/2.8): 62°
• Field of view (30 mm f/2.8): 47°
Gimbal
• Angular vibration range: ±0.02°
• Maximum controlled rotation speed: Pan 180°/s, Tilt 180°/s, Roll 180°/s
• Mechanical endpoint range: Pan ±326°, Tilt +50° to -140°, Roll +50° to -274°
• Controlled rotation range: Pan ±320°, Tilt +40° to -120°, Roll ±40°
• Operating temperature: 32°F to 122°F
