WISPR Sony LR1 (61MP) on Custom Gimbal 35mm Lens

Description

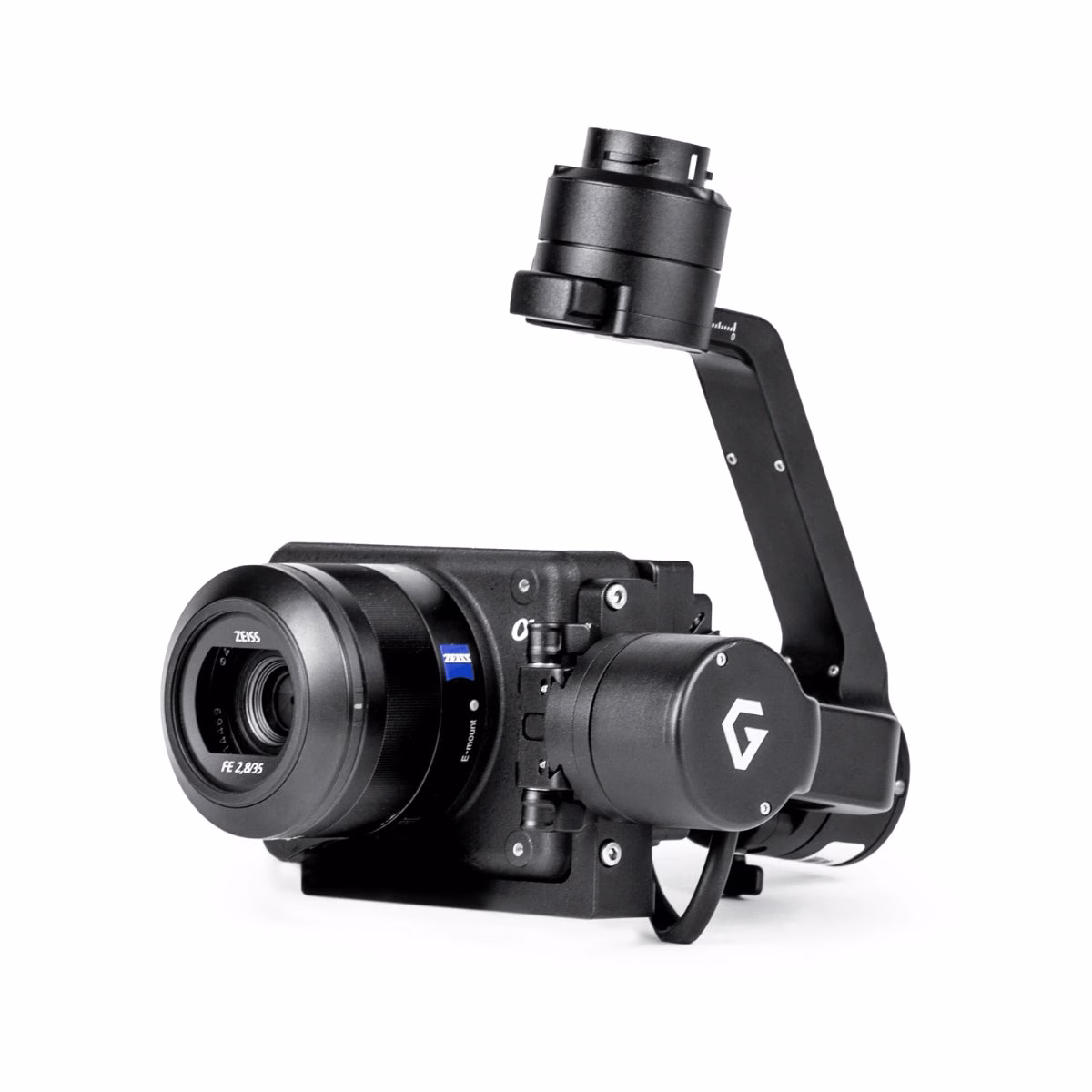

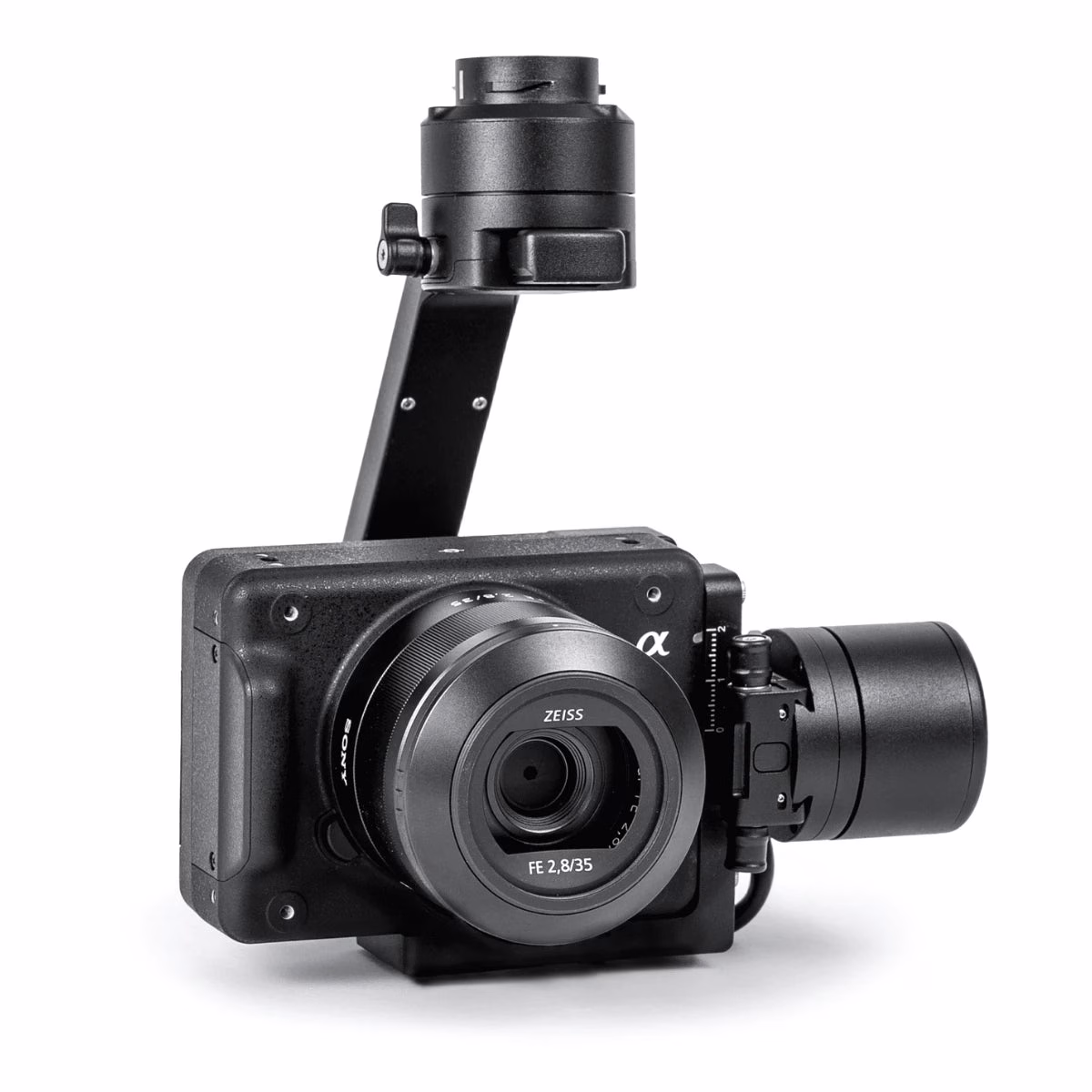

Sony ILX-LR1 61MP: Full-Frame 61-Megapixel Imaging Payload for the SkyScout Series
The Sony ILX-LR1 61MP is a professional gimbal-mounted camera payload built around Sony’s full-frame Exmor R CMOS sensor, delivering 61-megapixel stills at 9504 x 6336 resolution for aerial photography, mapping, and high-detail inspection work.
Paired with a Sony FE Mount 35mm f/2.8 lens and a 62-degree field of view, it gives operators the image quality and coverage angle needed for demanding aerial data collection. Designed for integration with the WISPR SkyScout Series, the payload connects via a quick-attach gimbal mount for fast field deployment.
When resolution and dynamic range are mission-critical, the ILX-LR1 delivers. The full-frame sensor supports ISO sensitivity from 100 to 32000, expandable to ISO 102400, with exposure compensation of +/- 5.0 EV in selectable 1/3 or 1/2 EV steps. The mechanical shutter covers 1/4000 to 30 seconds while the electronic shutter extends to 1/8000, giving operators precise control across a wide range of lighting conditions. Video capture tops out at 4K at 59.94fps in XAVC S or XAVC HS formats, with 1080P available at up to 119.88fps for high-frame-rate applications.
Sony ILX-LR1 61MP Core Features and Advantages
• Full-frame sensor: 1.38-inch Exmor R CMOS delivers 61-megapixel aerial image output.
• High-resolution output: 9504 x 6336 pixel capture supports large-area survey deliverables.
• 35mm f/2.8 lens: 62-degree FOV balances subject detail with effective ground coverage.
• Dual shutter system: mechanical to 1/4000 and electronic to 1/8000 for varied conditions.
• Wide ISO range: sensitivity from ISO 100 to 32000, expandable to 102400 for low light.
• 4K video capture: records at up to 59.94fps in XAVC S and XAVC HS formats.
• High-frame-rate video: 1080P recording at up to 119.88fps for slow-motion applications.
• 3-axis stabilized gimbal: ±0.02° vibration tolerance maintains sharpness throughout flight.
• Broad rotation range: pan control of ±320° supports flexible aerial camera positioning.
• Operating range: functions reliably between 32°F and 122°F across field environments.
The Sony ILX-LR1 61MP exists for operators who cannot afford to compromise on image resolution or sensor performance. Its full-frame capture at 61 megapixels, combined with a stabilized 3-axis gimbal and dual shutter system, gives field teams the technical foundation to deliver survey-grade imagery and 4K video from a single deployable payload.
DSLRPros has the product knowledge and UAV support infrastructure to help you integrate the Sony ILX-LR1 61MP into your SkyScout Series workflow from day one. Whether you are adding a high-resolution payload to an existing fleet or configuring a new aerial imaging setup, our team is ready to help.
Order the Sony ILX-LR1 61MP at DSLRPros today.

Camera
• Sensor: Exmor R CMOS sensor
• Sensor size: 1.38″ Full Frame
• Sensor width: 1.41″
• Sensor height: 0.94″
• Photo resolution: 61 MP
• Image size: 9504 × 6336
• Photo formats: JPEG, RAW
• Video resolution: 4K at 59.94 fps (max)
• Video resolution: 1080p at 119.88 fps (max)
• Video formats: XAVC S (MPEG-4 AVC/H.264), XAVC HS (MPEG-H HEVC/H.265)
• Shutter type: Mechanical shutter / Electronic shutter
• Shutter speed (mechanical): 1/4000 s to 30 s
• Shutter speed (electronic): 1/8000 s to 30 s
• Movie shutter speed: 1/8000 s to 1 s
• Exposure settings: ±5.0 EV (1/3 EV and 1/2 EV steps selectable)
• ISO sensitivity (stills): ISO 100–32000, expandable to ISO 50–102400
• ISO sensitivity (movies): ISO 100–32000 equivalent
• Auto ISO range: ISO 100–12800
• PAL/NTSC: Supported
Camera Lens
• Lens option: Sony FE Mount 35 mm f/2.8
• Field of view (35 mm f/2.8): 62°
• Field of view (30 mm f/2.8): 47°
Gimbal
• Angular vibration range: ±0.02°
• Maximum controlled rotation speed: Pan 180°/s, Tilt 180°/s, Roll 180°/s
• Mechanical endpoint range: Pan ±326°, Tilt +50° to -140°, Roll +50° to -274°
• Controlled rotation range: Pan ±320°, Tilt +40° to -120°, Roll ±40°
• Operating temperature: 32°F to 122°F
