ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload

Description

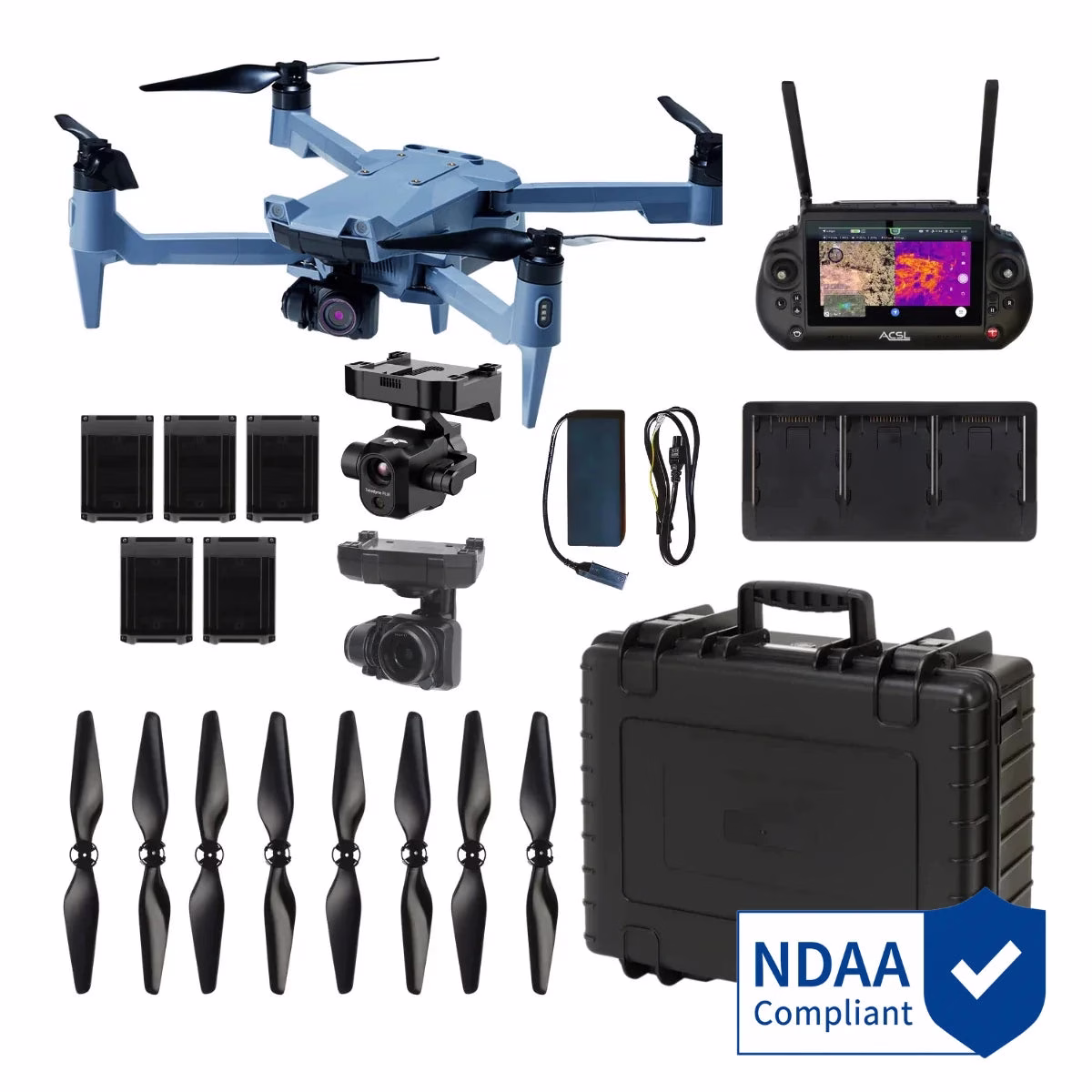

ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload: Flexible Thermal and Visible Imaging
The ACSL SOTEN Thermal Package with TAITEN Smart Controller provides professionals with both a 20MP visible camera and the NDAA-compliant SAMO Thermal Payload, offering mission-specific flexibility in a secure, foldable platform.
Compact and IP43-rated, SOTEN ensures encrypted dual-band connectivity, while the TAITEN Smart Controller adds a 7″ daylight-readable display, IP54 ruggedness, and up to 8 hours of runtime.
Backed by Dronefly’s trusted expertise and post-sale support, this package is designed for inspection, utilities, and public safety teams operating in challenging environments.
Key Features and Benefits
• NDAA-compliant system with AES-256 encrypted Fides-Link comms
• Includes 20MP visible camera with 1″ sensor and mechanical shutter
• Includes SAMO Thermal Payload: 640×512 radiometric thermal + 64 MP visible
• Thermal sensitivity <20 mK, accuracy ±5 °C for reliable detection
• Compact, foldable 1.7 kg aircraft with IP43-rated durability
• One-touch swappable payload system for mission flexibility
• TAITEN Smart Controller: 7″ 1500-nit daylight display, IP54 ruggedness
• Up to 8-hour runtime, USB-C extendable power, Android 13 integration
• Dual-band 2.4/5.8 GHz radios with reliable connectivity
• FAA Remote ID compliant and ISO/IEC 15408 secure architecture
Two Payloads, One Secure Platform
The included 20MP visible camera captures high-resolution, survey-grade imagery with a 1″ sensor and mechanical shutter.
For thermal missions, the SAMO payload powered by Teledyne FLIR Hadron 640R provides 640×512 radiometric thermal imaging with <20 mK sensitivity and ±5 °C accuracy, plus a 64 MP visible sensor for clear context.
Operators can swap between payloads in seconds, enabling them to adapt quickly to inspections, emergency response, or environmental monitoring.
Rugged Control and Secure Operations
SOTEN's swappable architecture, NDAA compliance, and AES-256 encrypted Fides-Link safeguard mission-critical data.
The TAITEN Smart Controller integrates ACSL's TAKEOFF app on Android 13, delivering responsive control, HDMI output, and resilient links via dual-band 2.4/5.8 GHz radios.
Optional LTE and offline maps expand capabilities for BVLOS and disconnected environments. With five included smart batteries and a rugged case, teams can rely on extended, secure operations wherever the mission takes them.
Applications and Use Cases
• Utility inspections: Identify faults in lines, substations, and pipelines
• Public safety: Thermal and visible imaging for SAR and law enforcement
• Fire response: Locate hotspots and monitor fire progression in real time
• Infrastructure surveys: Inspect bridges, towers, and industrial facilities
• Environmental monitoring: Track anomalies across sensitive ecosystems
• Construction documentation: Record site progress with visible and thermal data
• Disaster response: Deliver situational awareness in crisis conditions
• Multi-operator workflows: Support pilot, payload, and training operations
The ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload delivers both thermal and visible imaging in one secure, mission-ready system.
Designed for survey, inspection, and public safety professionals, it ensures accurate data capture and dependable performance in the field.
Dronefly provides end-to-end service and expert support to help you maximize your ACSL system's capabilities. Contact Dronefly today to add the SOTEN Thermal Package to your operations.

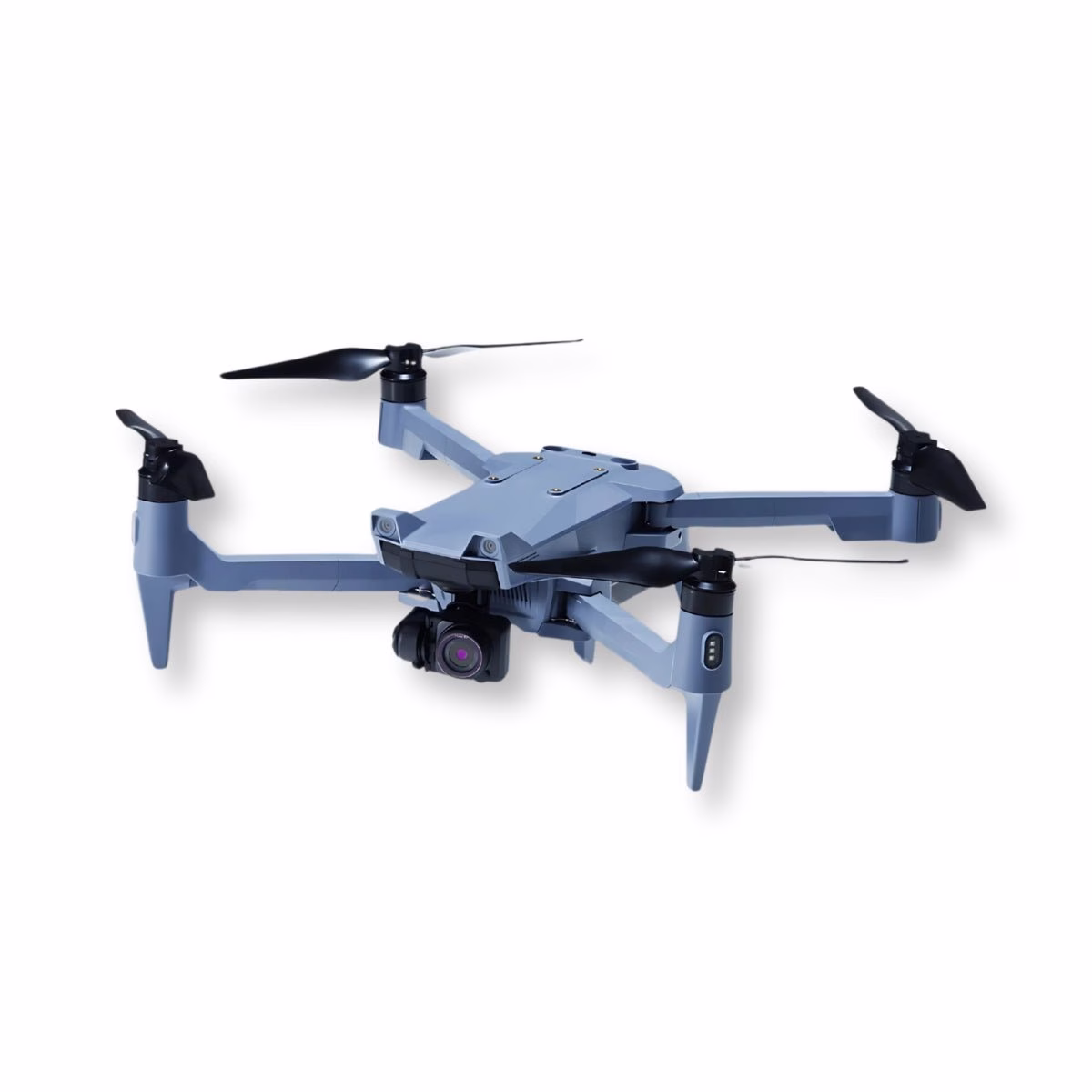

Aircraft
• Dimensions: Unfolded: 637 × 560 mm (including propellers) Folded: 162 × 363 mm Height (Unfolded): 153 mm
• Weight: 1,720 g (with standard camera and battery)
• Rotor Blades: 4
• Battery: Lithium-ion, 94 Wh
• Operating Frequency: Dual-band 2.4 GHz + 5.8 GHz
• Hovering Accuracy: Vision: Vertical ±0.1 m, Horizontal ±0.3 m GNSS: Vertical ±0.5 m, Horizontal ±1.5 m
• Max Pitch Angle: 30°
• Max Angular Velocity: Pitch 80°/s, Yaw 45°/s
• Max Ascent Speed: 3 m/s
• Max Descent Speed: 2 m/s
• Max Takeoff Weight: 2,000 g
• Max Speed (No Wind): 15 m/s
• Operational Altitude Limit: 2,000 m
• Max Flight Time: With camera: 25 min (wind 8 m/s) Without camera: 29 min (wind 8 m/s)
• Optional Cameras: EO/IR, Multispectral, Optical Zoom
• Ingress Protection: IP43 (with camera, gimbal, battery)
• GNSS: GPS + QZSS + GLONASS + SLAS
• Operating Temperature: 0°C to 40°C
• Optional Items: LTE Comms Module, Spare Battery
Vision System
• Obstacle Detection Range: Forward 10 m, Up 5 m, Down 5 m
• Detection Angle: 70° horizontal, 40° vertical
• Detection Frequency: 10 Hz (all directions)
• Environment: Adequate lighting and clear textures
Infrared Sensor
• Obstacle Detection Range: Up 2 m, Down 12 m
• Detection Angle: Up 27°, Down 2°
• Detection Frequency: 50 Hz (up/down)
• Environment: Large, diffuse, or reflective objects
TAITEN Smart Controller
• Display: 7 in, 1200×1920, 1500 nits
• Operating Bands: 2.4 GHz + 5.8 GHz (ACSL Fides-Link)
• Range: 6+ miles (unobstructed, low-interference)
• Wireless: Wi-Fi
• Encryption: AES-256
• Pairing: Up to 3 controllers per aircraft
• Runtime: Up to 8 hours (USB-C powered)
• Environmental: IP Rating: IP54 Operating Temp: 20–60°C (68–140°F) Storage Temp: 20–50°C (68–122°F) Charging Temp: 0–45°C (32–113°F)
• Controls: 2-axis sticks, 2 gimbal wheels, mode switch (AUT/POS/MAN), Go-Home, Land, Emergency, Power
• Custom Inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
• Indicators & Sensors: Connection LED, Battery LED, Vibration motor, GNSS module, Light sensor, Microphone
• Interfaces: HDMI, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm audio, Tripod mount
• System: Android 13 with ACSL TAKEOFF app, Remote ID & NDAA compliant
• Physical: 10.6 × 6.5 × 2.7 in, ≈3.2 lb

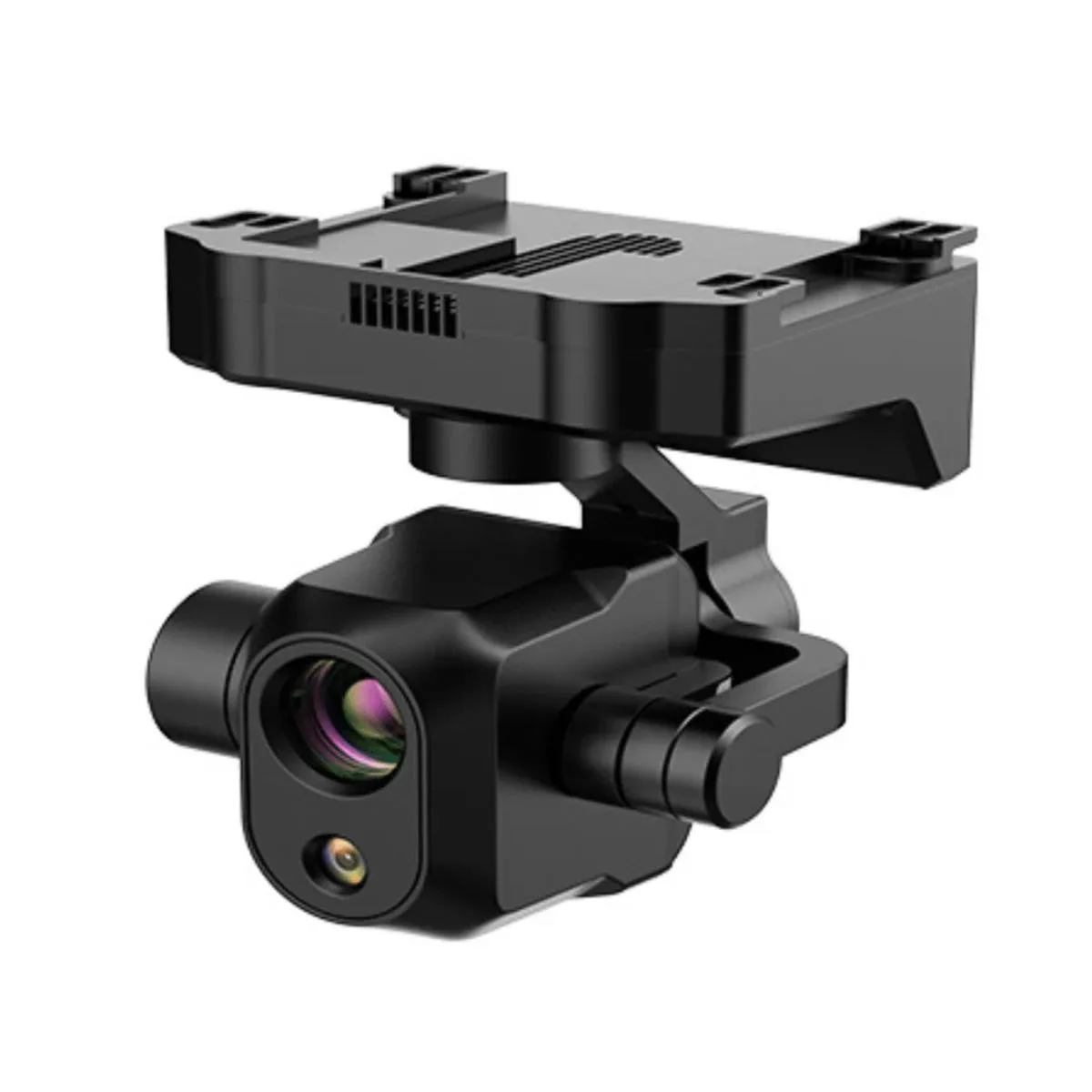

SAMO Thermal Camera
• Thermal Camera: Teledyne FLIR Boson® 640×512 (radiometric), 12 µm
• Visible Camera: 64 MP, 67° HFOV wide, 20× optical zoom
• Fusion: MSX® thermal-visible overlay
• IMU: ICM20602 (I²C/SPI selectable)
• Thermal Optics: 13.6 mm F/1.0, ≈32° HFOV
• Visible Optics: 4.8 mm, ≈67° HFOV
• Thermal Sensitivity (NETD): <20 mK typical, <40 mK max
• Temp Accuracy: ±5°C (0–100°C range)
• Frame Rate: 60/30 Hz full resolution (export limits may apply)
• Data I/O: MIPI CSI (Thermal: 2-lane; Visible: 4-lane), I²C
• Software: FLIR Prism™ libraries (enhancement, detection, etc.)
• Integration: ACSL SOTEN, TAKEOFF GCS, TAITEN controller
• Power: 5V input, ~1.8W typical, ≤2.9W max
• Ingress Protection: IP54 (sealed module)
• Temp Range: −20°C to +60°C (operation and storage)
• Dimensions: ≈50 × 36 × 43 mm
• Weight: ≈56 g
• Compliance: NDAA, ITAR-free, FCC Part 15 Class B

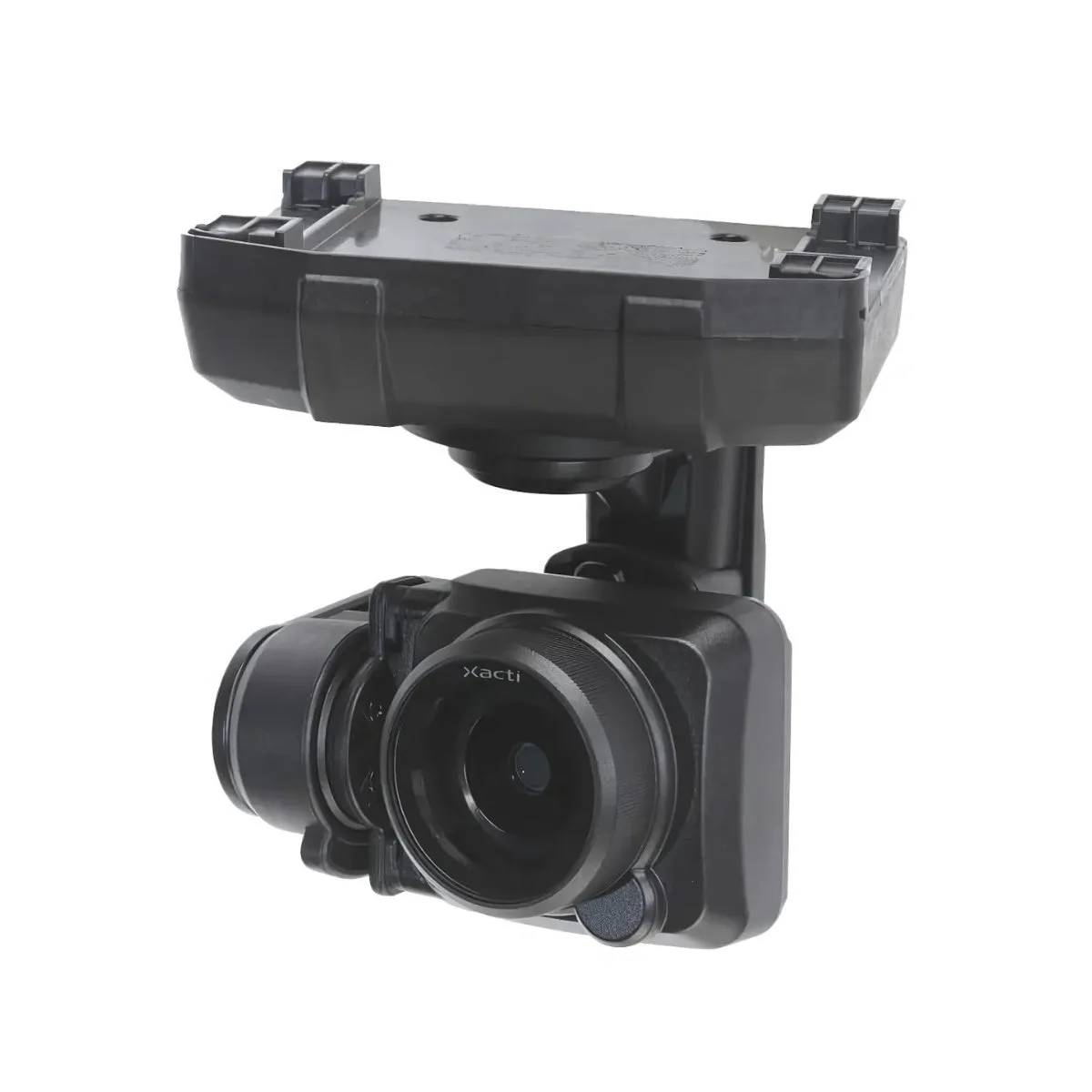

Standard Visible Camera
• Effective Pixels: 20 MP
• Image Format: JPEG / DNG / JPEG+DNG
• Image Quality: Superfine / Fine / Normal
• Resolution Options: 20 MP / 15 MP / 10 MP
• Video Format: MOV / H.264
• Video Quality: 4K: 30 fps 2.7K: 60 / 30 fps Full HD: 120 / 60 / 30 fps HD: 60 / 30 fps nHD: 240 / 120 / 60 / 30 fps
• Video Recording Time: 60 min; Auto-split OFF / 1 / 3 / 5 / 10 min (FAT32: 4 GB limit)
• Sensor Size: 1 inch
• Shutter: Mechanical
• Focus: Single AF / Continuous AF / MF (Multi AF / Spot AF)
• Exposure Compensation: −2 EV to +2 EV (1/3 EV steps)
• Media: microSD (UHS ≥ U3 or V30, Video class ≥ V30)
• Security: On-media encryption toggle
Camera Gimbal
• Mechanism: 3-axis
• Operable Range: Pan ±85°, Tilt −115° to 45°
• Max Speed: Pan 60°/s, Tilt & Roll 100°/s
• Control Accuracy: ±0.02°
• Switching Method: One-touch camera switching
Optional EO/IR Camera Accessory
• Visible Camera: 12 MP
• Infrared Camera: 81,920 pixels
• Temperature Resolution: <60 mK
• Dynamic Range: Up to +140°C (high gain)
• Still Image Quality: Superfine / Fine / Normal
• Video Format: MOV / H.264
• Video Quality: Full HD / HD
• Video Recording Time: 60 min; Auto-split OFF / 1 / 3 / 5 / 10 min
• Media: microSD (UHS ≥ U3 or V30, Video class ≥ V30)
• Security: Encrypted recording supported; toggle enable/disable
