ACSL SOTEN Mission Package

Description

ACSL SOTEN Mission Bundle: All-Day Power, Field-Tested Performance
The ACSL SOTEN Mission Bundle delivers a secure, dependable, and efficient aerial platform for operations where timing, endurance, and clarity matter.

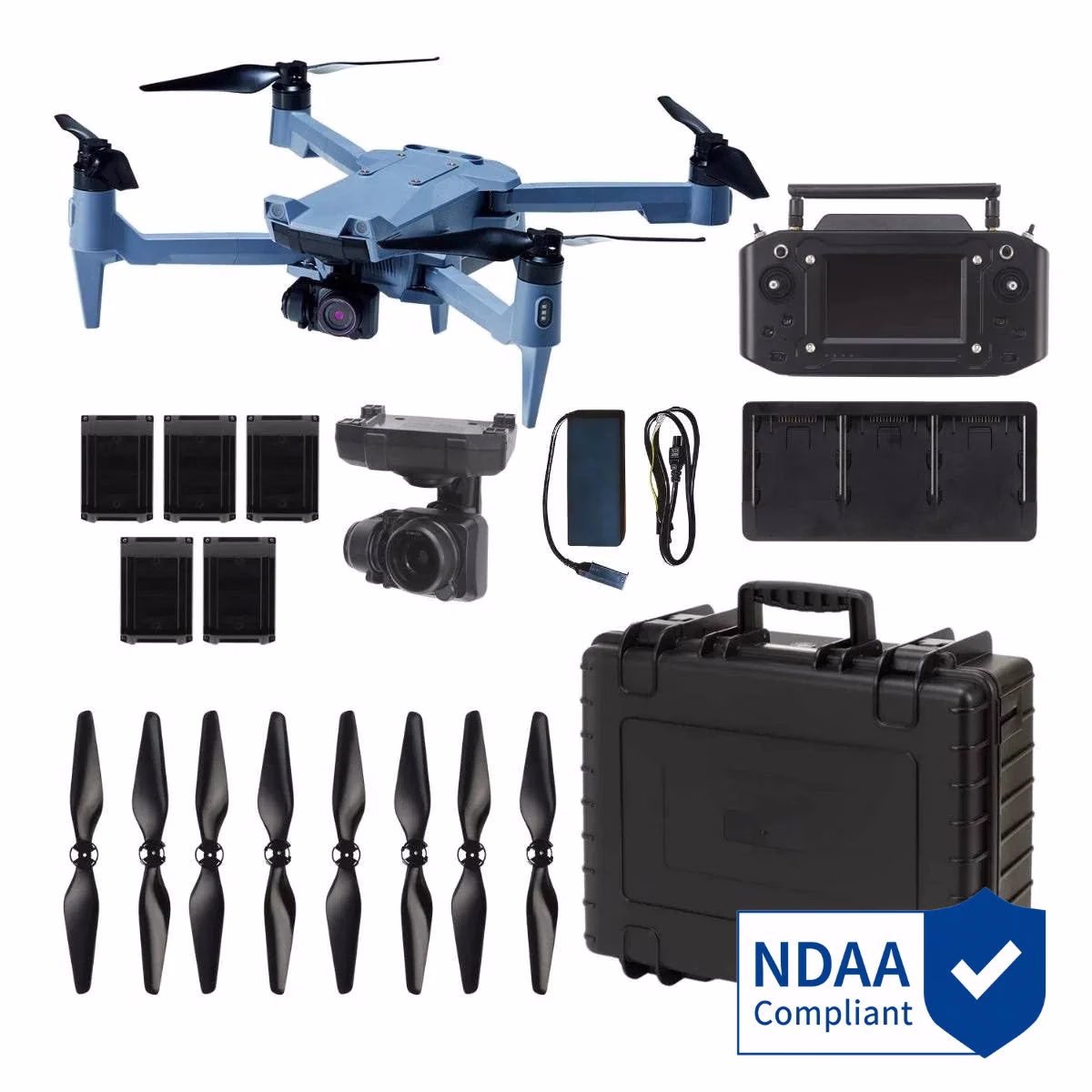

With a rugged, NDAA-compliant SOTEN drone, the precise TENSO Smart Controller, a 20MP Standard Camera, and five smart batteries, this package is built to keep you in the air and on task.
Key Features
Every element in the Mission Bundle supports uptime, control, and data integrity in demanding scenarios.

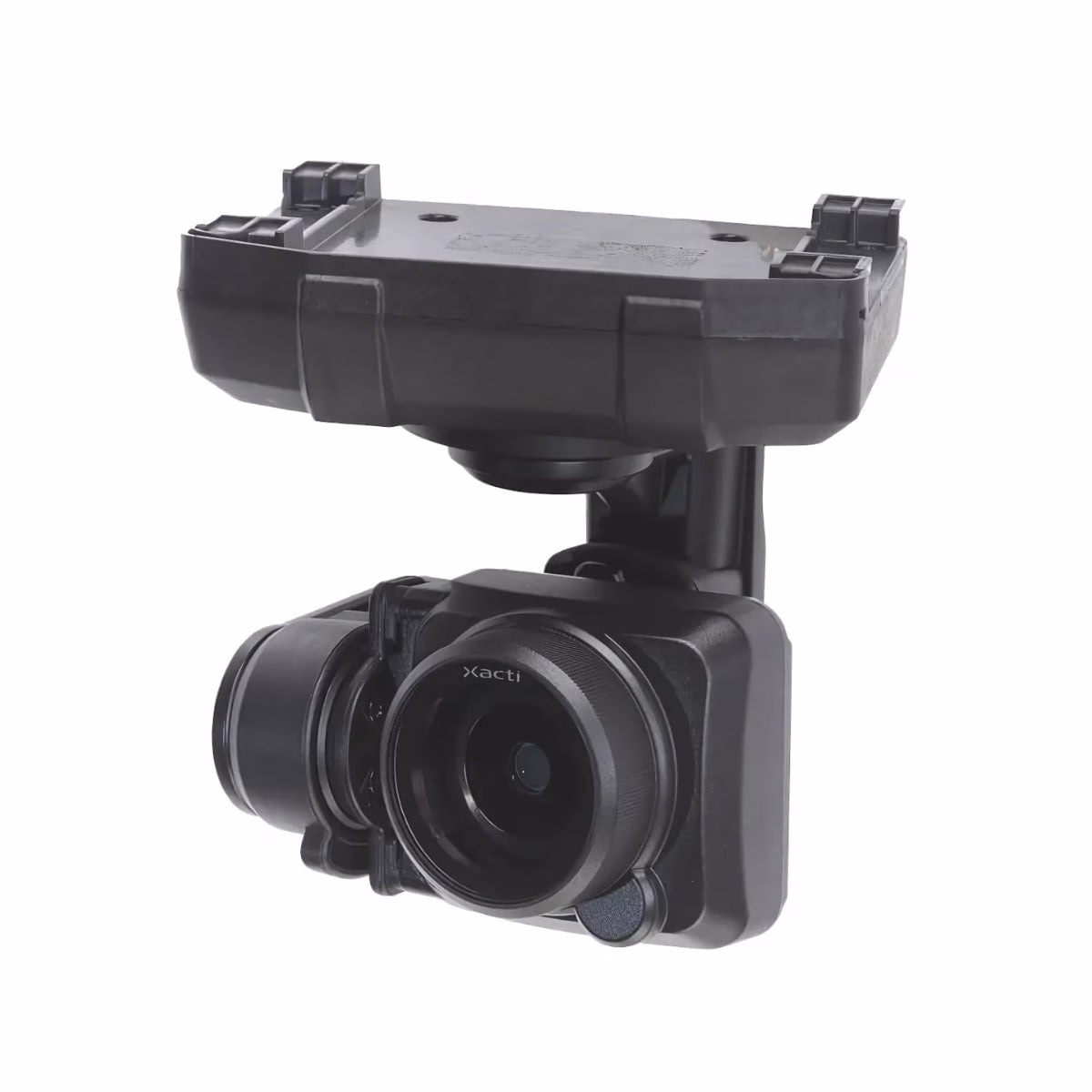

• Includes 20MP Standard Camera with 1″ sensor and mechanical shutter

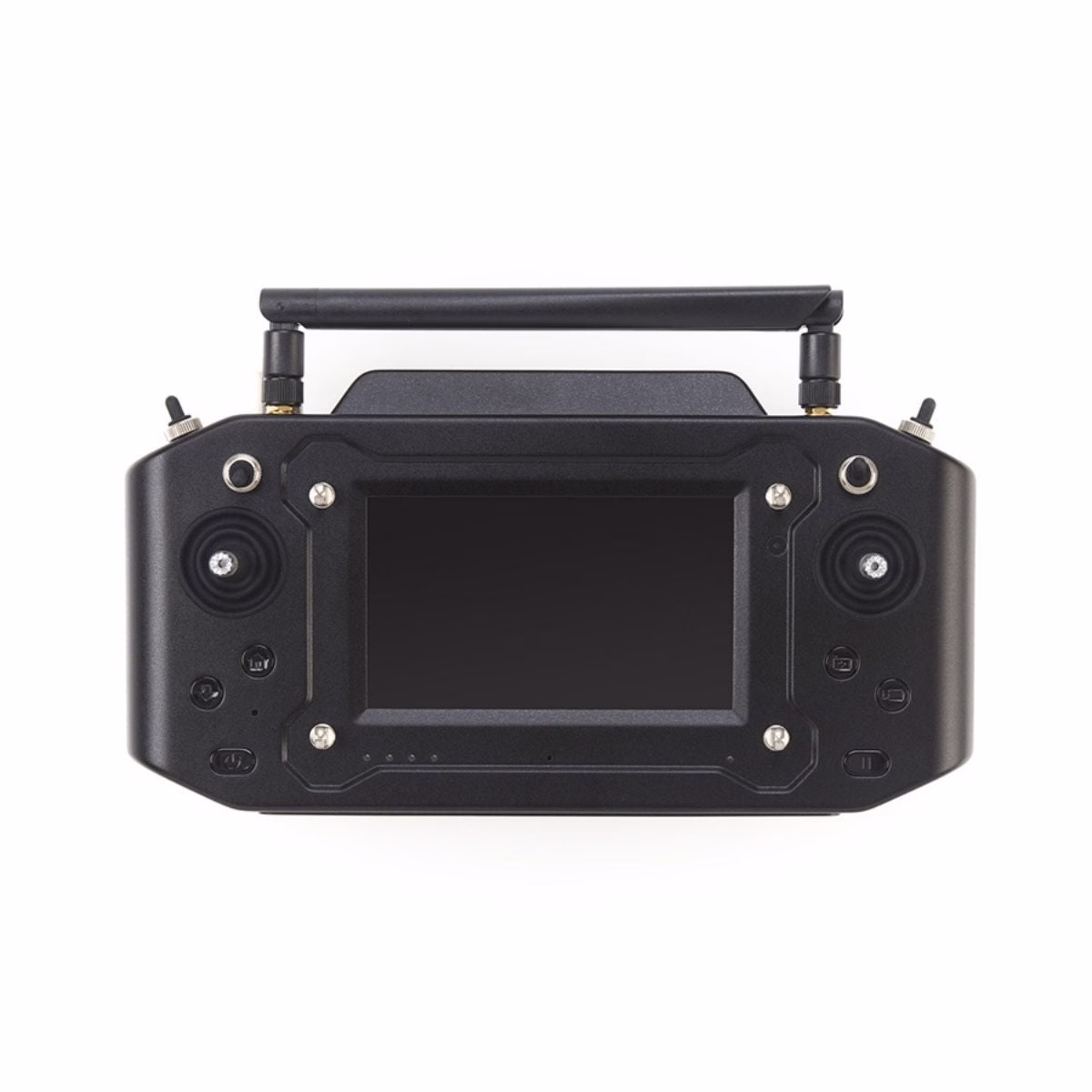

• ACSL TENSO Smart Controller: 1920×1080 resolution, IP43-rated, secure AES256 encryption
• 5x ACSL SOTEN Smart Batteries with up to 28 minutes of flight each

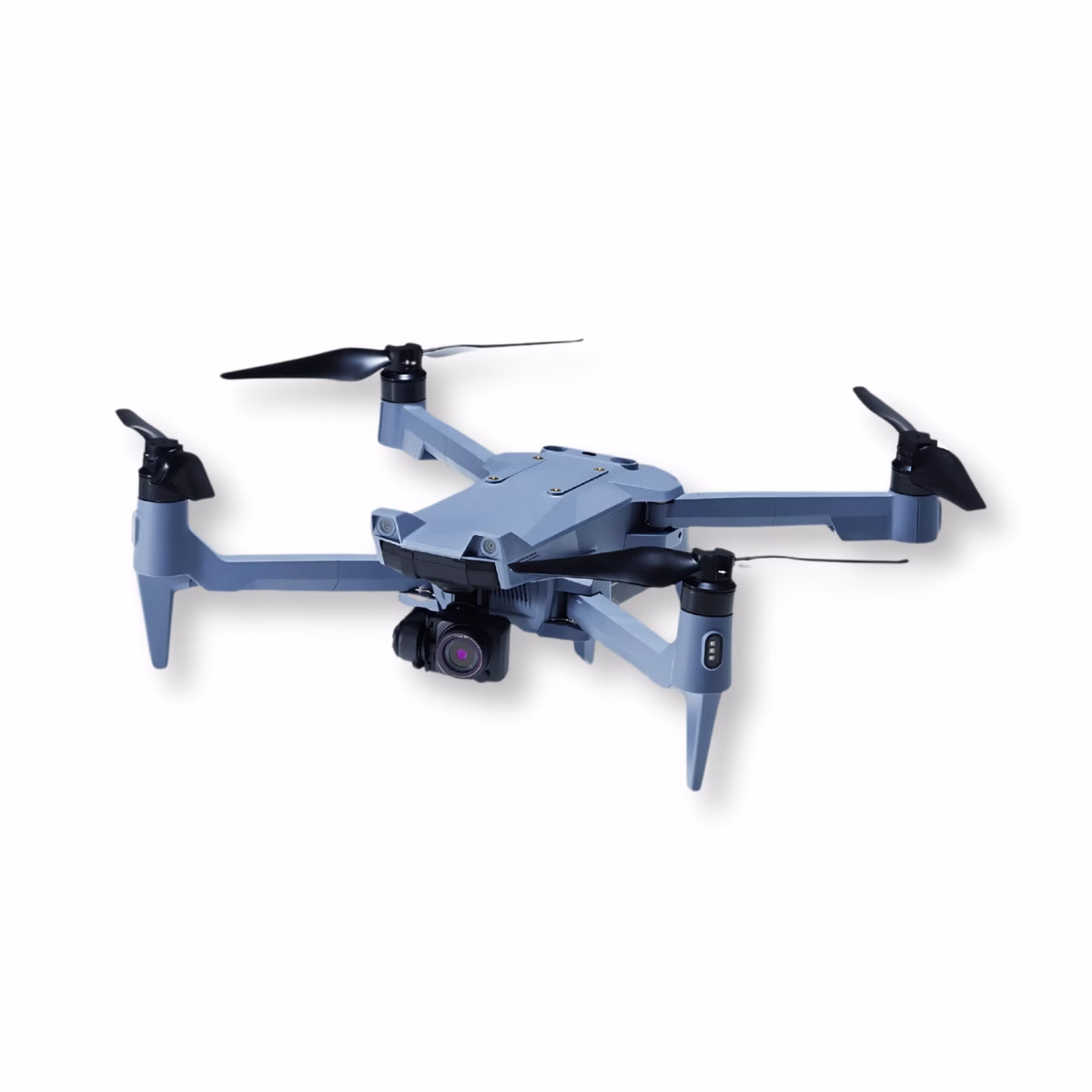

• Foldable 1.7 kg airframe for rapid deployment and portability
• Hot-swappable camera bay supports future upgrades
• FAA Remote ID ready
• LTE-capable control via smartphone for BVLOS operations
• Multi-directional obstacle sensors for operational safety
• Secure, ISO15408-certified data architecture
• Durable drone and controller construction rated for outdoor conditions
Designed for Demanding Field Use
The ACSL Standard Controller features a 1920×1080-resolution display, intuitive flight control, AES256 encrypted communication, and IP43-rated dust and splash resistance—engineered for challenging conditions.
The drone’s Standard Camera provides 20MP high-resolution imaging with a mechanical shutter for clear documentation. The inclusion of five ACSL SOTEN Smart Batteries means you can execute back-to-back flights with minimal delays.
Applications
For professionals who need secure, high-uptime performance in the field, the Mission Bundle is ideal for:
• Search and rescue and first response
• Infrastructure, utility, and bridge inspections
• Environmental surveying and remote monitoring
• Construction site documentation
• Emergency event and disaster zone assessments
• Public safety and tactical oversight
From gear to guidance, we make sure your ACSL SOTEN Mission Bundle is ready for every flight. You’ll get U.S.-based support, direct answers, and flight-ready advice from day one.
Deploy the ACSL SOTEN Mission Bundle with Dronefly—because the mission matters.

• Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
• Height: Unfolded 153mm (including propellers)
• Weight: 1,720g (including standard camera and battery)
• Number of rotor blades: 4
• Intelligent battery: Lithium-ion battery 94Wh, 1 pc
• Operating frequency: 2.412 – 2.477 GHz
• Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
• Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
• Maximum pitch angle: 30°
• Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
• Maximum ascent speed: 3m/s
• Maximum descent speed: 2m/s
• Maximum takeoff weight: 2,000g
• Maximum speed (no wind): 15m/s
• Operational limit altitude: 2000m
• Maximum airspeed: 15m/s
• Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
• Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
• Ingress protection: IP43 (with camera, gimbal, and battery)
• GNSS: GPS + QZSS + GLONASS + SLAS
• Operating temperature: 0°C to 40°C
• Optional items: LTE Comms Module, Spare Battery
• Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
• Obstacle detection angle: 70° horizontal, 40° vertical
• Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
• Operating environment: Adequate lighting and clear texture
• Infrared Sensor – Obstacle detection range: Up: 2m, Down: 12m
• Infrared Sensor – Obstacle detection angle: Up: 27°, Down: 2°
• Infrared Sensor – Obstacle detection freq.: Up: 50Hz, Down: 50Hz
• Infrared Sensor – Operating environment: Large, diffuse or reflective obstacles
• Remote Controller – Operating frequency: 2.412 to 2.477 GHz
• Remote Controller – Maximum distance: 4km (without obstructions or radio interference)
• Remote Controller – Battery life: Up to 4 hours
• Remote Controller – Operating temperature: 0°C to 40°C
• Remote Controller – Security: AES encryption method
• Remote Controller – Multiple operations: Control can be transferred between two radio controllers
• Supported Mobile Devices – OS: Android™ 4.1 or higher
• Supported Mobile Devices – Terminal: USB Type-C
• Supported Mobile Devices – Confirmed models: Sony Xperia™ 5, 10 III
• Visible Camera – Effective pixels: 20 megapixels
• Visible Camera – Still image shooting method: JPEG / DNG / JPEG+DNG
• Visible Camera – Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
• Visible Camera – Video method: MOV / H.264
• Visible Camera – Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
• Visible Camera – Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Visible Camera – Sensor size: 1 inch
• Visible Camera – Shutter system: Mechanical
• Visible Camera – Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
• Visible Camera – Exposure compensation: -2EV to +2EV (step of 1/3EV)
• Visible Camera – Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Visible Camera – Security: Data encryption can be enabled/disabled
• Camera Gimbal – Mechanism: 3-axis
• Camera Gimbal – Operable range: Pan: ±85°; Tilt: -115° to 45°
• Camera Gimbal – Max speed: Pan: 60°/s; Tilt and roll: 100°/s
• Camera Gimbal – Control accuracy: ±0.02°
• Camera Gimbal – Switching method: One-touch camera switching
• Infrared + Visible Camera – Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
• Infrared + Visible Camera – Temperature resolution: <60mK
• Infrared + Visible Camera – Dynamic range: Up to +140°C (high gain)
• Infrared + Visible Camera – Image quality: Superfine / Fine / Normal
• Infrared + Visible Camera – Video method: MOV / H.264
• Infrared + Visible Camera – Video quality: Full HD / HD
• Infrared + Visible Camera – Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
• Infrared + Visible Camera – Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
• Infrared + Visible Camera – Security: Encrypted data can be recorded; Encryption can be enabled/disabled
