Autel Alpha DT60S+DH1E Loudspeaker & Spotlight

Description

Autel Alpha DT60S+DH1E Loudspeaker & Spotlight: Dual spotlight illumination and aerial broadcast payload

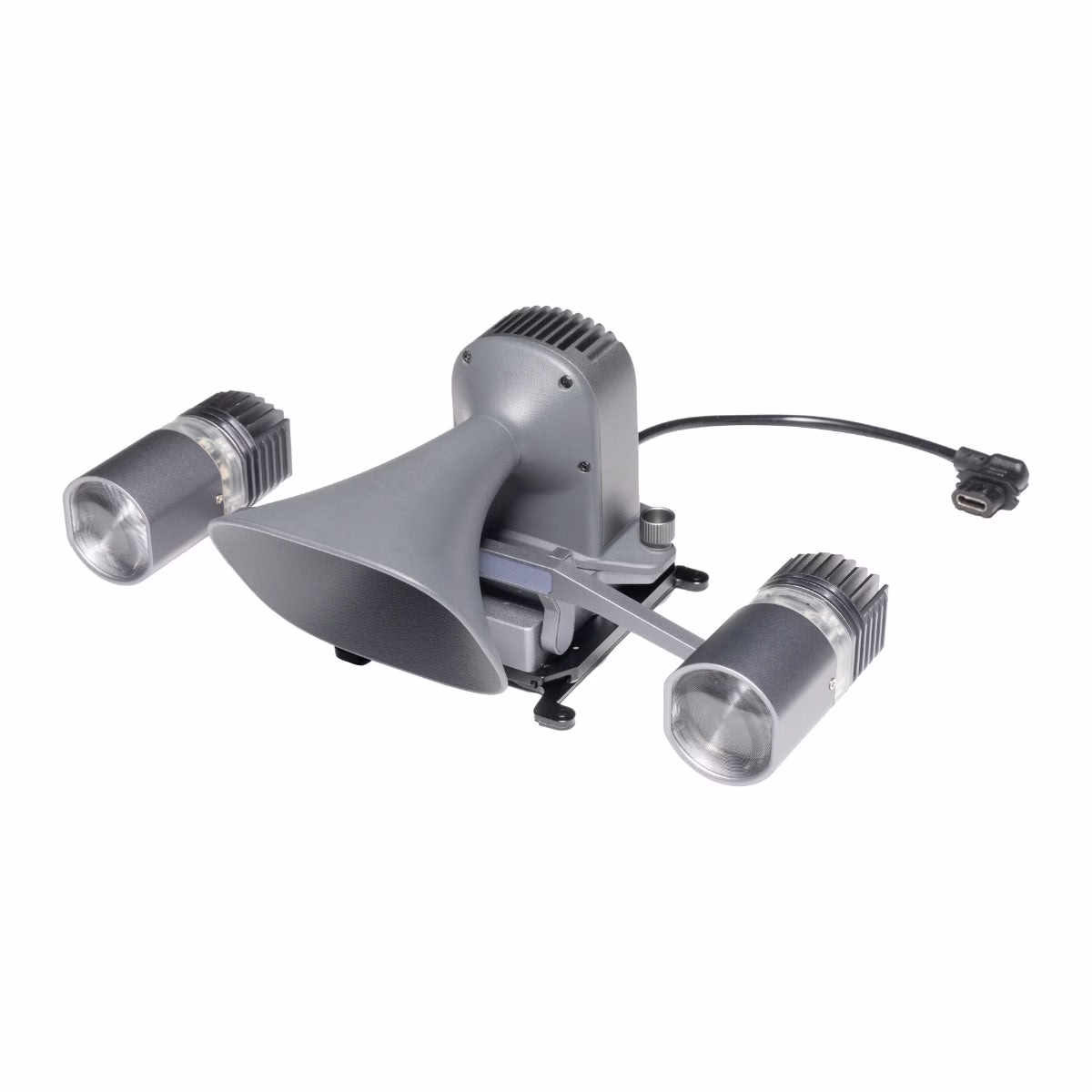

The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight is a dual-function payload designed for the Autel Alpha drone platform, combining high-intensity illumination with long-range aerial broadcasting. Built for public safety, search and rescue, and industrial operations, the payload integrates a 10W loudspeaker with a powerful dual-spotlight system.
The lights automatically follow the drone’s gimbal pitch to maintain illumination aligned with the camera view. With adjustable brightness, focused beam optics, and a quick-release payload interface, the DT60S+DH1E enables operators to illuminate targets while delivering clear voice communication from the air.
Autel Alpha DT60S+DH1E spotlight illumination and aerial broadcast capabilities
• I ntegrated loudspeaker system: Broadcasts aerial messages during emergency response and safety missions
• High-output audio projection: Produces up to 114 dB sound pressure at 3.3 ft
• Long-range broadcasting capability: Delivers voice communication up to 984 ft (300 m)
• Dual spotlight power output: Provides 60W high-intensity illumination for nighttime missions
• Central illuminance performance: Produces up to 36 lux focused lighting output
• Wide illumination coverage: Lights ground areas up to approximately 200 square meters
• Narrow 14° beam angle: Focuses spotlight for long-distance target illumination
• 120° controllable tilt range: Adjusts lighting from +30° upward to −90° downward
• Gimbal pitch synchronization: Automatically aligns spotlights with camera viewing direction
The Autel Alpha DT60S+DH1E Loudspeaker & Spotlight expands the Alpha platform’s operational capability by combining illumination and communication in a single payload. Operators can illuminate ground targets while broadcasting instructions, improving coordination during emergency response and nighttime field operations.
DSLRPros supports enterprise UAV teams with mission-ready payload systems and expert integration guidance. Order the Autel Alpha DT60S+DH1E Loudspeaker & Spotlight from DSLRPros to enhance the operational capability of your Autel Alpha drone.

• Total Power: 60W (Spotlight) + 10W (Speaker).
• Weight: 250g (approximately 8.8 oz).
• Dimensions: 196 x 129 x 78 mm.
• Spotlight Brightness: 36 Lux central illuminance.
• Lighting Coverage: Illuminates an area of approximately 200 square meters.
• Beam Angle: 14° (focused beam).
• Tilt Range: +30° to -90° (can follow the drone camera’s pitch).
• Speaker Volume: 114dB at 1 meter.
• Broadcast Range: Effective audio up to 300 meters (approx. 984 feet).
• Connection: Quick-release via the Autel PSDK interface.
• Operating Temperature: -10°C to 50°C (14°F to 122°F).
