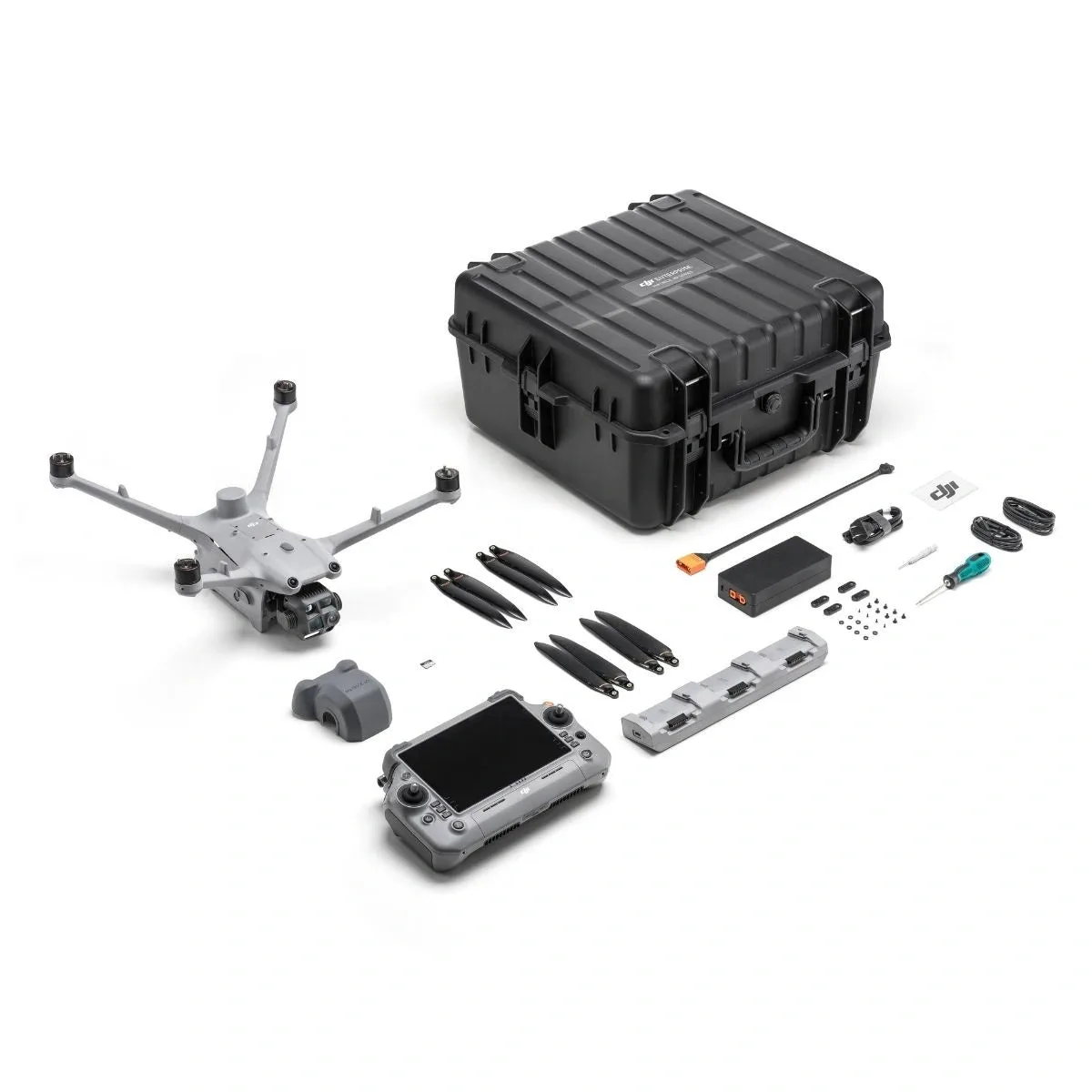

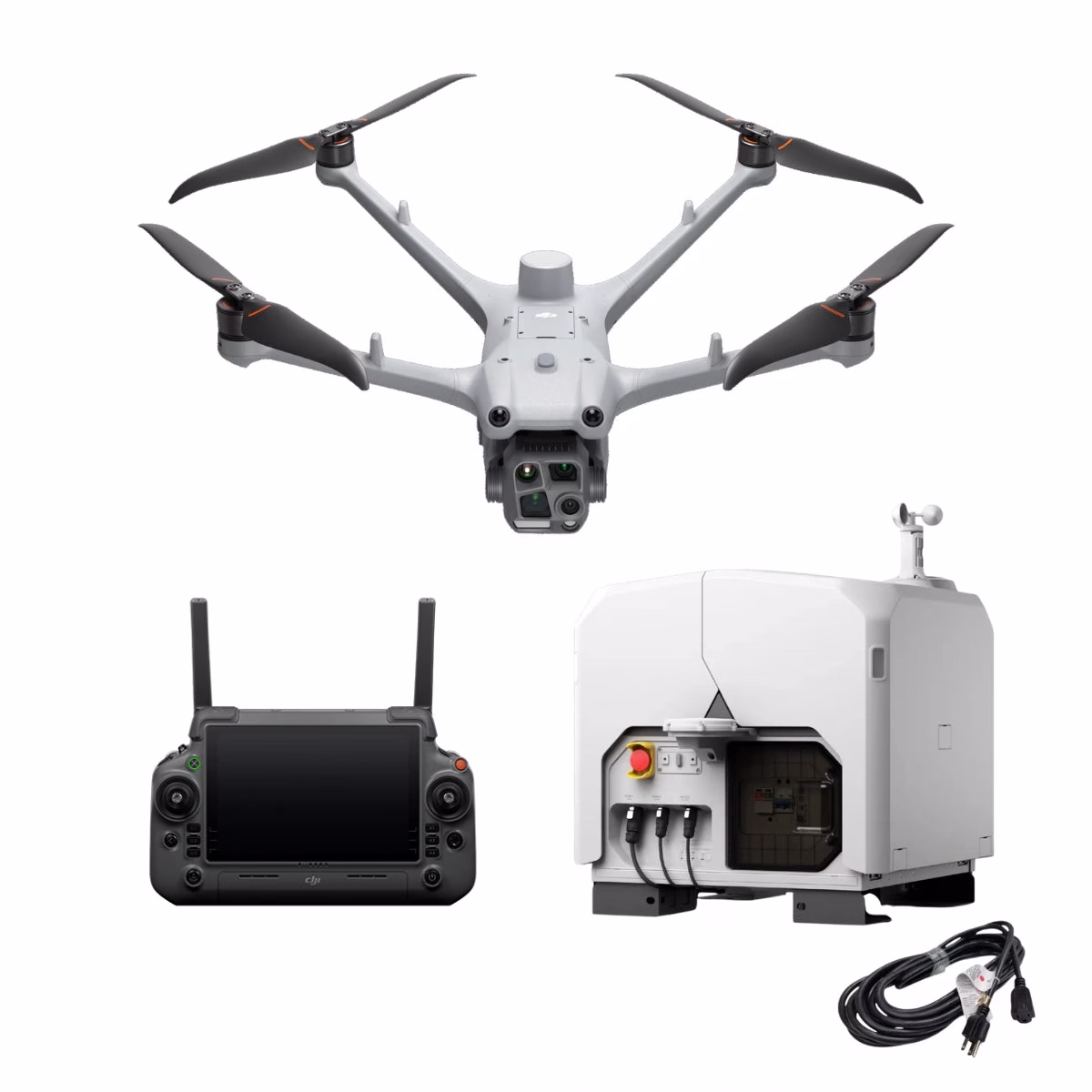

DJI Dock 3 + Matrice 4TD (Standalone Unit) Bundle

Description

DJI Dock 3 + Matrice 4TD Bundle: Automated aerial coverage with long-flight thermal capability
The DJI Dock 3 + Matrice 4TD Bundle provides enterprise operators with a remote-ready automated mission platform built for extended coverage and 24/7 readiness. Matrice 4TD delivers up to 54 minutes of flight time and operates from –20 °C to 50 °C, while Dock 3 automates launch, landing, and charging within an IP56-rated enclosure. With rapid 27-minute charging and reliable recovery in 12 m/s winds, the system supports high-uptime inspection, monitoring, and emergency response. DJI Care Enterprise is not included.
Bundle highlights
• Extended flight time: Up to 54 minutes supports extended mission coverage.
• Rugged dock housing: IP56 enclosure protects aircraft during outdoor deployment.
• Fast battery charging: Dock restores 15 to 95 percent in 27 minutes.
• Wide temperature tolerance: System operates reliably from –30 °C to 50 °C.
• Wind-resistant recovery: Supports automated landing in winds up to 12 m/s.
• Integrated controller: RC Plus 2 enables direct pilot intervention when necessary.
• Flexible power placement: Included 25 ft 14/3 cable assists dock installation.
• Multi-sensor payload: Matrice 4TD supports imaging for inspection and monitoring.
Reliable automated deployment for complex field operations
Dock 3 maintains the drone in a controlled environment, enabling rapid launch and dependable recovery in challenging weather. Its charging system restores battery levels quickly, ensuring minimal downtime between missions. When paired with Matrice 4TD’s long-duration flight capability, the system provides remote teams with consistent, repeatable access to aerial data without requiring on-site flight personnel.
Built for inspections, security, and enterprise monitoring
The Matrice 4TD’s multi-sensor design and up to 54-minute flight duration allow operators to cover larger areas, inspect assets more thoroughly, or maintain persistent watch over critical facilities. Dock 3 supports scheduled missions and on-demand deployment, enabling fast response and continuous monitoring from centralized command centers.
Ecosystem integration
• Matrice 4 Series compatibility: Designed for dock-enabled autonomous operation workflows.
• Dock environmental management: Stabilizes aircraft and batteries for reliable charging.
• Remote mission scheduling: Supports planning, launch, and recovery from central locations.
• Controller integration: RC Plus 2 aligns with enterprise flight operations and training.
• Power infrastructure flexibility: Extension cable supports installation away from outlets.
Industry applications
• Perimeter security monitoring: Automates recurring daily patrols around large facilities.
• Infrastructure inspection: Supports detailed assessments of remote industrial assets safely.
• Emergency response support: Provides rapid thermal assessment of active incident scenes.
• Utility corridor patrols: Covers extended pipeline or powerline routes per mission.
• Industrial site oversight: Monitors operations across large facilities with minimal staff.
• Environmental monitoring flights: Conduct recurring observation over sensitive natural areas.
• Construction progress tracking: Documents site changes and verifies field work completion.
• Transportation observation missions: Supports roadway monitoring and public safety coordination.
Optimized for field operations
This bundle enables high-uptime automated missions with strong environmental performance. Dock 3 ensures the aircraft stays charged and protected, while Matrice 4TD provides the imaging and flight endurance needed for enterprise workflows. Together, they form a remote-ready platform for real-time situational awareness and efficient field operations.
Order from Dronefly today — the West Coast’s trusted enterprise UAV source.

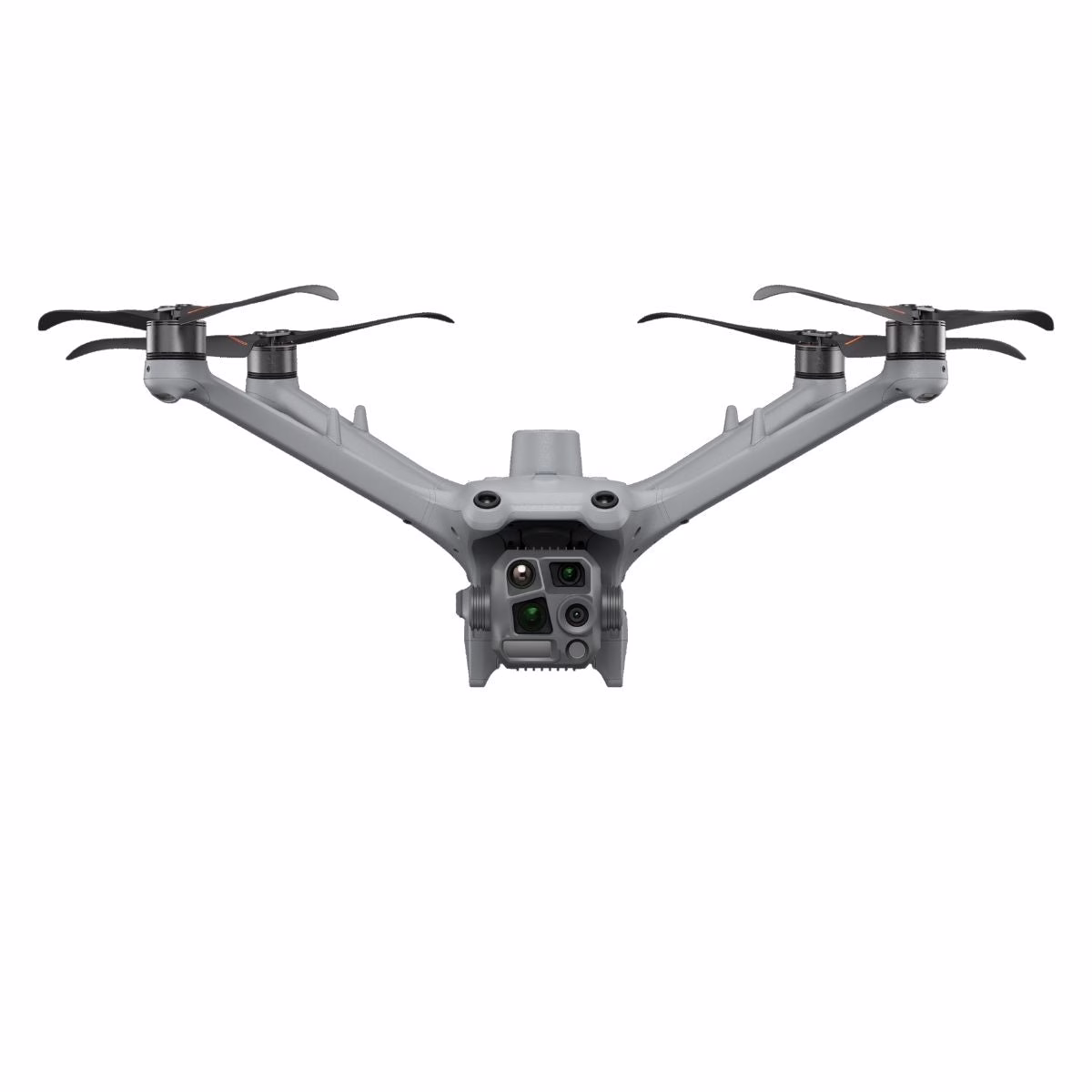

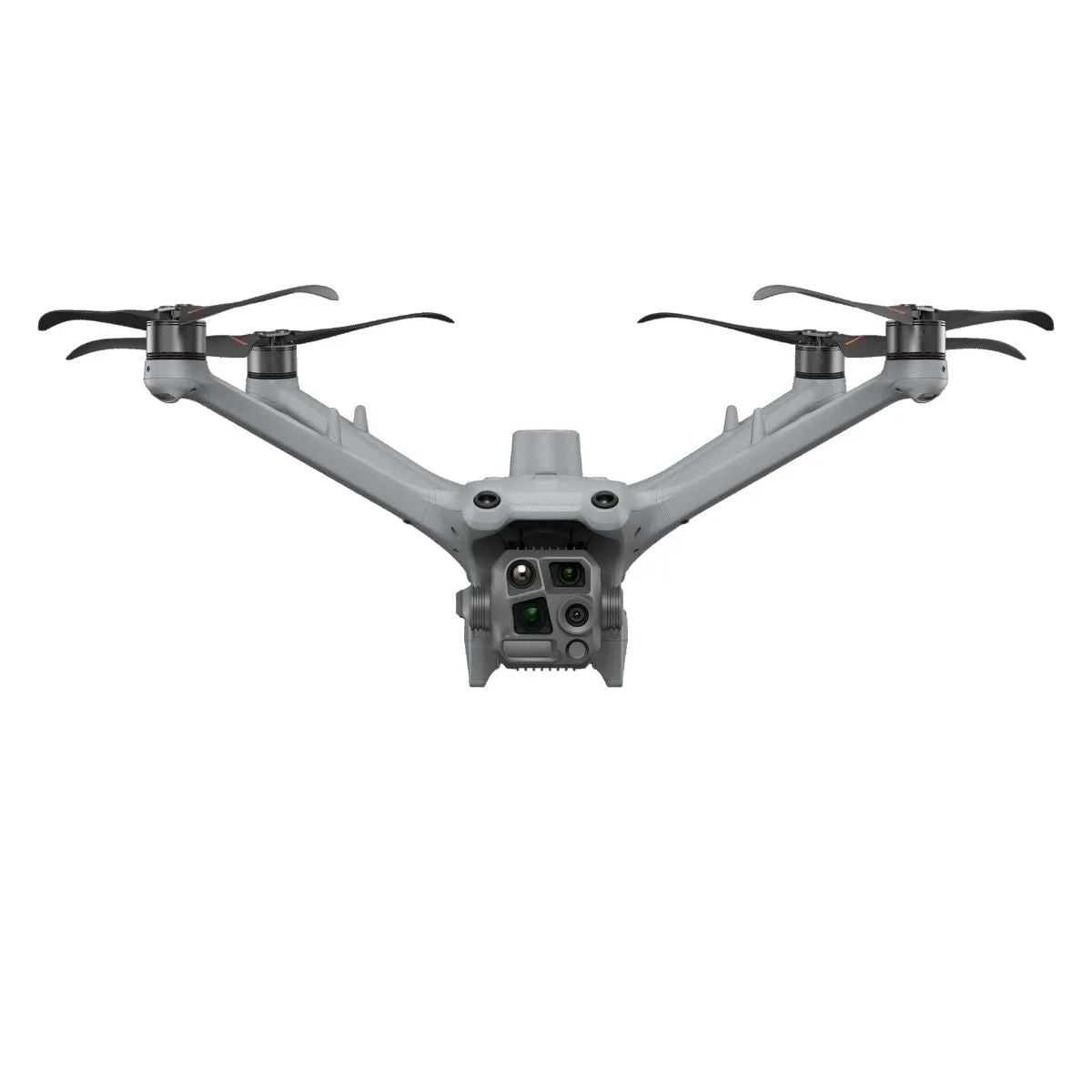

Matrice 4TD
General
• Model: Matrice 4TD
• Number of rotors: 4
• Configuration: Drone with camera
• Edition: Standard
• FAA registration: Required for non-commercial use
• Features: Camera included
• Kit style: Base
• Skill level: Enterprise
• Color: White
Flight Performance
• Maximum flight time: 54 minutes
• Takeoff weight: Up to 4.6 lbs (2.0 kg)
• Max ascent speed: 6 m/s (Normal), 10 m/s (Sport)
• Max descent speed: 6 m/s (Normal), 8 m/s (Sport)
• Max horizontal speed (Normal): 15 m/s forward, 12 m/s backward, 10 m/s sideways
• Max horizontal speed (Sport): 21 m/s forward, 19 m/s backward, 15 m/s sideways
• Max wind resistance: 12 m/s
• Max takeoff altitude: 21325 ft (6500 m)
• Max hover time: 47 minutes
• Max pitch angle: 25° (Normal), 30° (Sport)
• Max flight distance: 43 km
• Max angular velocity: 200°/s
• Operating temperature: −4°F to 122°F (−20°C to 50°C)
• Ingress protection: IP55
GNSS
• Systems: GPS, BeiDou, Galileo, QZSS, GLONASS
• Hovering accuracy (Vertical): ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
• Hovering accuracy (Horizontal): ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
Storage
• Recommended microSD cards: U3/Class 10/V30 or above
• Supported capacities: Lexar 1066x (64–512GB); Kingston Canvas Go! Plus (64–512GB)
• File system: exFAT
Remote Controller
• Model: RC Plus 2 Enterprise
• Operating temperature: −4°F to 122°F (−20°C to 50°C)
Camera System
• Still resolution (Wide): 20 MP
• Still resolution (Medium Tele): 12/48 MP
• Still resolution (Tele): 12/48 MP
• Video resolution: 4K 3840×2160 @30fps; FHD 1920×1080 @30fps
Image Sensors
• Wide: 1/1.3″ CMOS, 48 MP
• Medium Tele: 1/1.3″ CMOS, 48 MP
• Tele: 1/1.5″ CMOS, 48 MP
Lenses
• Wide: 82° FOV, 24 mm, f/1.7, focus 1 m–∞
• Medium Tele: 35° FOV, 70 mm, f/2.8, focus 3 m–∞
• Tele: 15° FOV, 168 mm, f/2.8, focus 3 m–∞
Imaging Performance
• Digital zoom (Tele): 16× (112× hybrid)
• ISO range: Up to 409600 (Tele up to 819200)
• Shutter speed: 2 – 1/8000 s
• Still photo modes: Single, Timed, Smart Capture, Panorama
• Photo format: JPEG
• Video format: MP4 (H.264)
• Max video bitrate: H.264: 60 Mbps; H.265: 40 Mbps
Gimbal
• Type: 3-axis mechanical (tilt, roll, pan)
• Controllable tilt: −90° to +90°
• Angular vibration: ±0.005°
Sensing System
• Sensors: Omnidirectional binocular vision + 3D infrared
Obstacle Detection Ranges
• Forward/Backward: 0.5–20 m
• Lateral: 0.5–16 m
• Upward: 0.5–20 m
• Downward: 0.5–16 m
Video Transmission
• System: DJI O4+ Enterprise
• Live view: 720p/30fps or 1080p/30fps
• Frequencies: 2.4 GHz, 5.1 GHz, 5.8 GHz
• Max transmission distance: 25 km (FCC); 12 km (CE/SRRC/MIC)
• With interference: 1.5–25 km
• Latency: ~100 ms (aircraft to dock)
Battery
• Capacity: 6768 mAh
• Voltage: 22.14 V
• Type: LiNiMnCoO₂
• Energy: 149.9 Wh
• Quantity: 1
Dimensions & Weight
• Dimensions (no propellers): 37.77 × 41.62 × 21.25 cm
• Weight: ~1.85 kg (4.07 lbs)

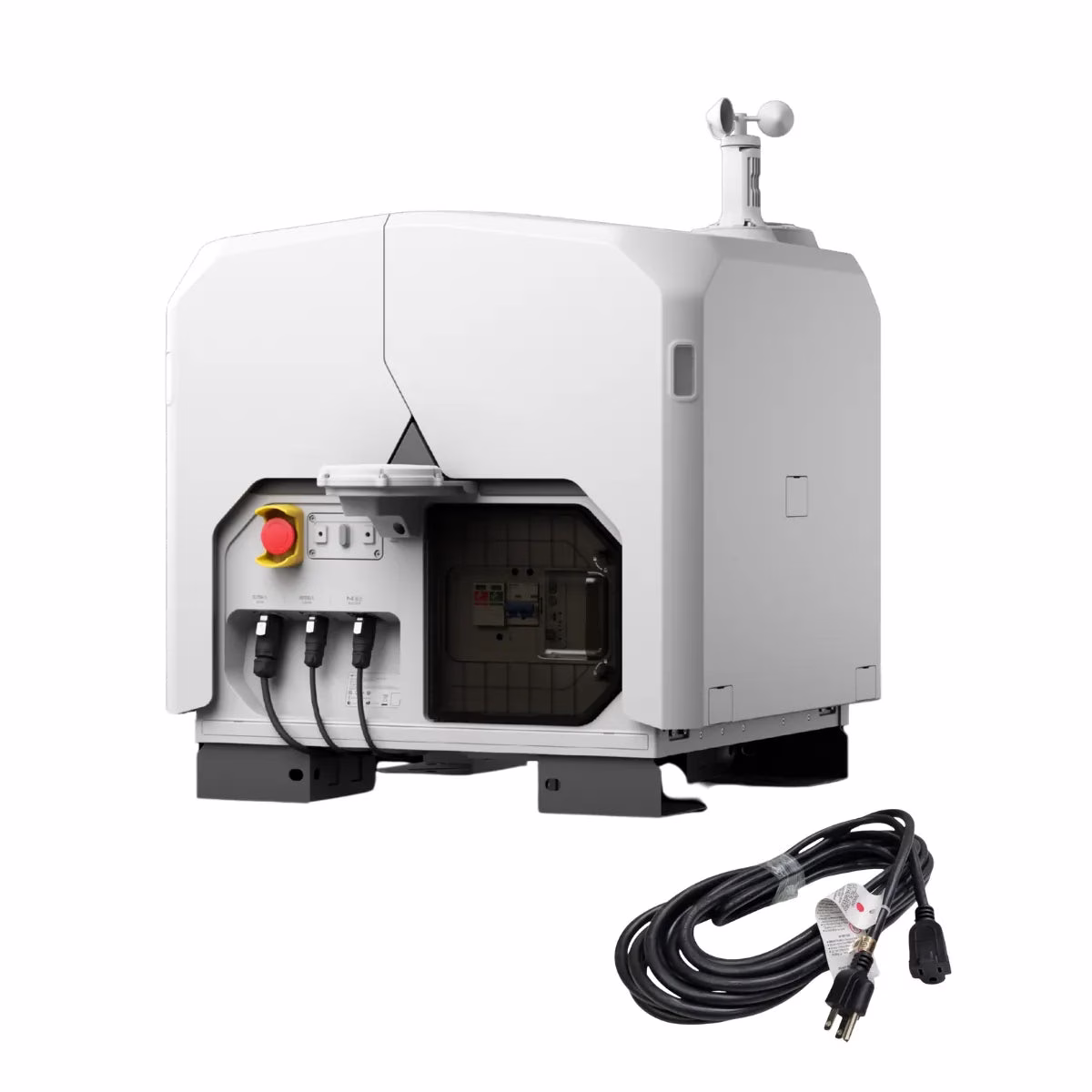

Dock 3
General
• Product name: DJI Dock 3
• Total weight: 55 kg (without aircraft)
• The actual product weight may vary due to material and environmental factors.
• Dimensions (dock cover opened): 1760 × 745 × 485 mm
• Dimensions (dock cover closed): 640 × 745 × 770 mm
• Measurements include RTK module width (160 mm), wind gauge height (145 mm), and base bracket height (58 mm).
• Input voltage: 100–240 V AC, 50/60 Hz
• Input power: Max 800 W
• Operating temperature: −30° to 50° C (−22° to 122° F)
• Ingress protection rating: IP56
• Drone capacity: 1 aircraft
• Max allowable landing wind speed: 12 m/s
• Max operating altitude: 4500 m
RTK Base Station
• GPS: L1 C/A, L2, L5
• BeiDou: B1I, B2I, B3I, B2a, B2b, B1C
• GLONASS: F1, F2
• Galileo: E1, E5a, E5b, E6
• QZSS: L1, L2, L5
• Positioning accuracy (horizontal): 1 cm + 1 ppm (RMS)
• Positioning accuracy (vertical): 2 cm + 1 ppm (RMS)
Charging Performance
• Output voltage: 35 V DC
• Charging time: 27 minutes (15% → 95% at 25° C)
Video Transmission
• Operating frequencies: 2.400–2.4835 GHz 5.150–5.250 GHz (CE: 5.170–5.250 GHz) 5.725–5.850 GHz
• Antenna: Built-in (9 antennas), 2T4R, intelligent switching
• Transmitter power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.2 GHz: <23 dBm (FCC/CE) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), 4 hours at 25° C
• During power outages, aircraft charging, AC cooling, cover heating, and wind gauge heating are unavailable.
Network Access
• Ethernet: 10/100/1000 Mbps adaptive port
• 4G access: Requires DJI Cellular Dongle 2 (sold separately)
• 4G availability varies by region — consult local regulations.
Sensors
• Wind speed sensor
• Rainfall sensor
• Ambient temperature sensor
• Water immersion sensor
• In-cabin temperature sensor
• In-cabin humidity sensor
Security Camera (External)
• Resolution: 1920×1080
• Field of view: 151°
• Auxiliary light: White light
Security Camera (Internal)
• Resolution: 1920×1080
• Field of view: 151°
• Auxiliary light: White light
Lightning Protection
• AC power port: 20 kA, meets EN 61643-11 Type 2 / IEC 61643-1 Class II
• Ethernet port: 10 kA, meets EN/IEC 61643-21 Category C
Supported Software
• Applications: DJI Enterprise app (deployment & commissioning)
• Cloud platforms: FlightHub 2 FlightHub 2 On-Premises FlightHub 2 FlightHub Sync DJI Cloud API
Expansion Capability
• Edge computing: Supports data communication with external switches
