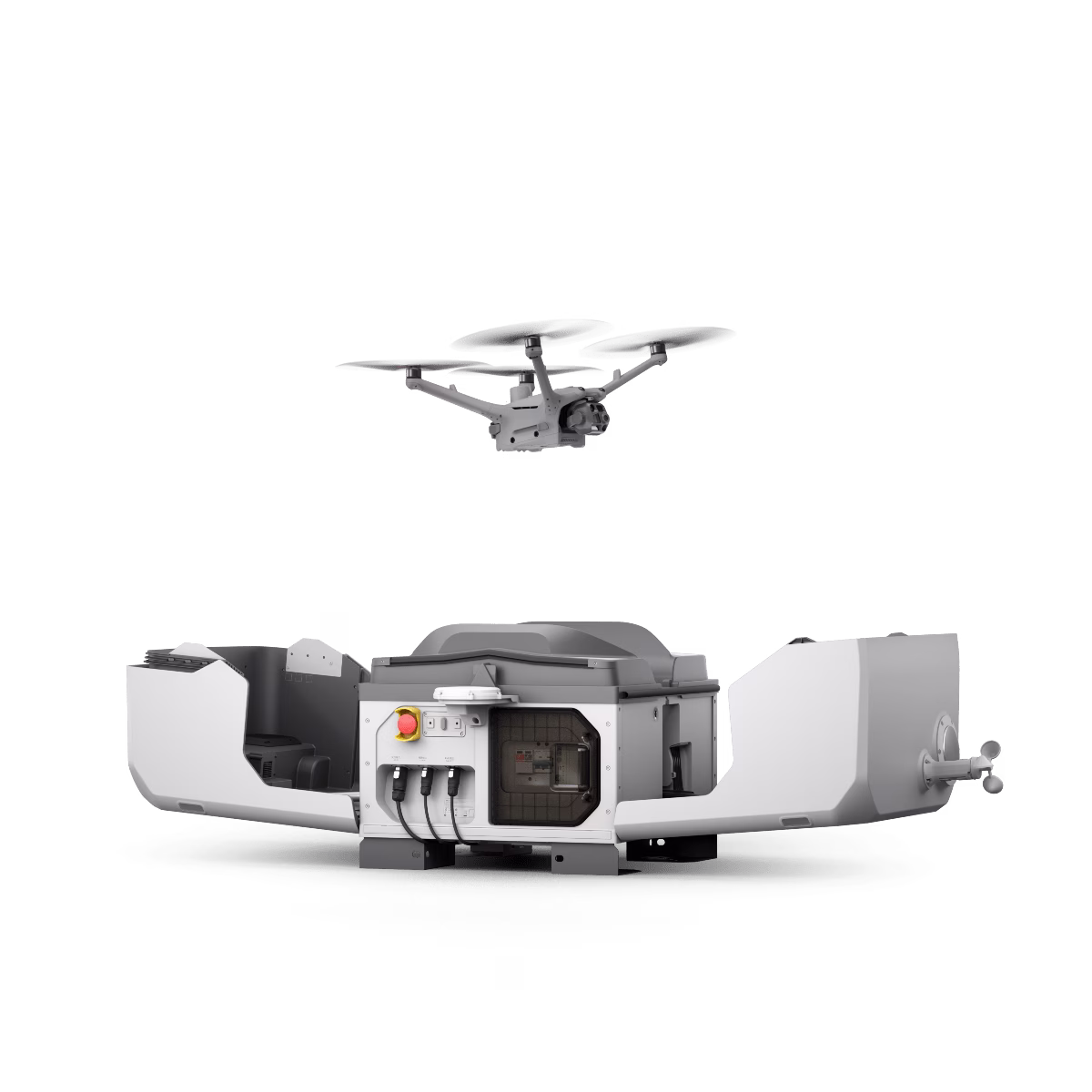

DJI Dock 3 + Matrice 4TD

Description

Precision, Power, and Autonomy with DJI Dock 3 + Matrice 4TD
Take your enterprise operations to new heights with the DJI Dock 3 and Matrice 4TD.
Designed for advanced inspections, emergency response, and large-scale monitoring, this system features high-resolution imaging, AI-assisted automation, and rugged durability for reliable performance in any environment.
Bundle Highlights
Thermal and Visual Camera Capabilities
The Matrice 4TD features a dual-camera system, combining a high-resolution visual camera with an advanced thermal imaging sensor.
This allows for enhanced situational awareness, making it ideal for search and rescue, infrastructure inspections, and environmental monitoring.
AI-Driven Automation for Smarter Operations
The Matrice 4TD leverages AI-based analytics to detect and track objects, recognize anomalies, and optimize flight paths.
This enhances efficiency in tasks such as automated perimeter patrols, structural inspections, and wildlife tracking.
All-Weather Reliability with Extended Flight Time
With an IP55-rated weatherproof design and up to 54 minutes of flight time, the Matrice 4TD is built for all-weather operation. Whether navigating extreme cold or intense heat, this drone maintains stable and reliable performance.
Dock 3 vs Dock 2—Key Upgrades
Feature | DJI Dock 2 | DJI Dock 3 | Benefit
IP Rating | IP55 | IP56 | Greater weather protection
Operating Temperature | -25 °C to +45 °C | -30 °C to +50 °C | Wider environmental tolerance
Drone Charging Time | 32 min | 27 min | 15% faster turnaround
Drone Endurance | — | +10 min | Longer flight per mission
Mobility | Fixed-site only | Vehicle-mounted capable | Flexible deployment
Compatible Drones | Matrice 3D / 3TD | Matrice 4D / 4TD | Higher performance drones
Ideal for Enterprise Applications
Emergency Response and Search & Rescue
Rapidly deploy the Matrice 4TD to locate missing persons, assess disaster zones, and provide aerial support to emergency teams with real-time thermal imaging and object tracking.
Infrastructure and Asset Monitoring
Automate routine inspections of bridges, roads, and industrial sites, reducing operational costs while improving safety through AI-driven analytics and remote monitoring.
Agriculture and Wildlife Management
Monitor crop health, track wildlife movement, and assess environmental conditions with precision multispectral imaging for data-driven decision-making in conservation and farming.
Order Now and Elevate Your Operations
Dronefly provides tailored drone solutions with expert customer support and fast, reliable service. Our team specializes in helping businesses integrate DJI technology seamlessly into their operations. We offer competitive pricing, comprehensive training, and post-purchase assistance to ensure you get the most from your investment.
Upgrade your enterprise capabilities with the DJI Dock 3 + Matrice 4TD. Contact Dronefly today to place your order and experience industry-leading autonomous drone solutions.

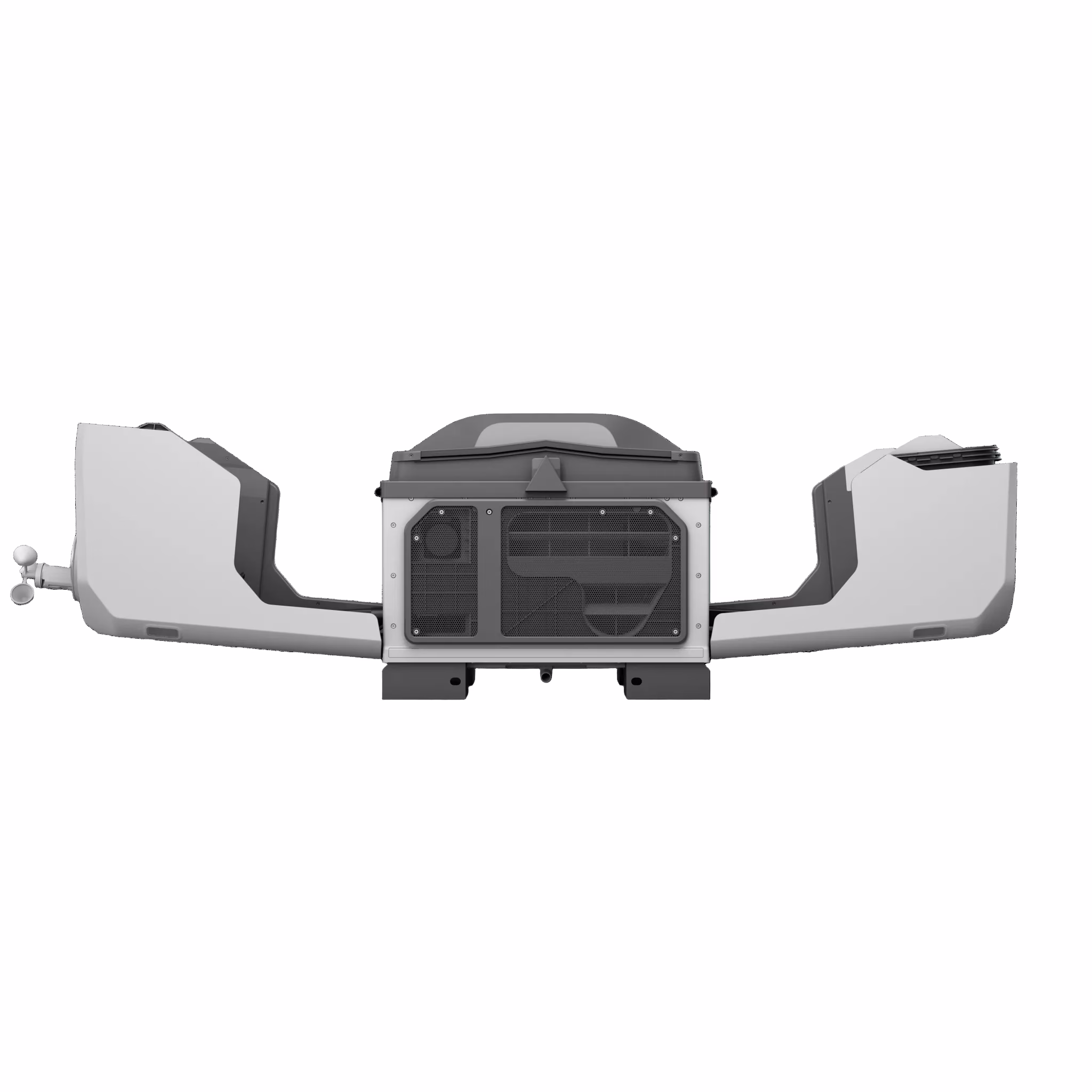

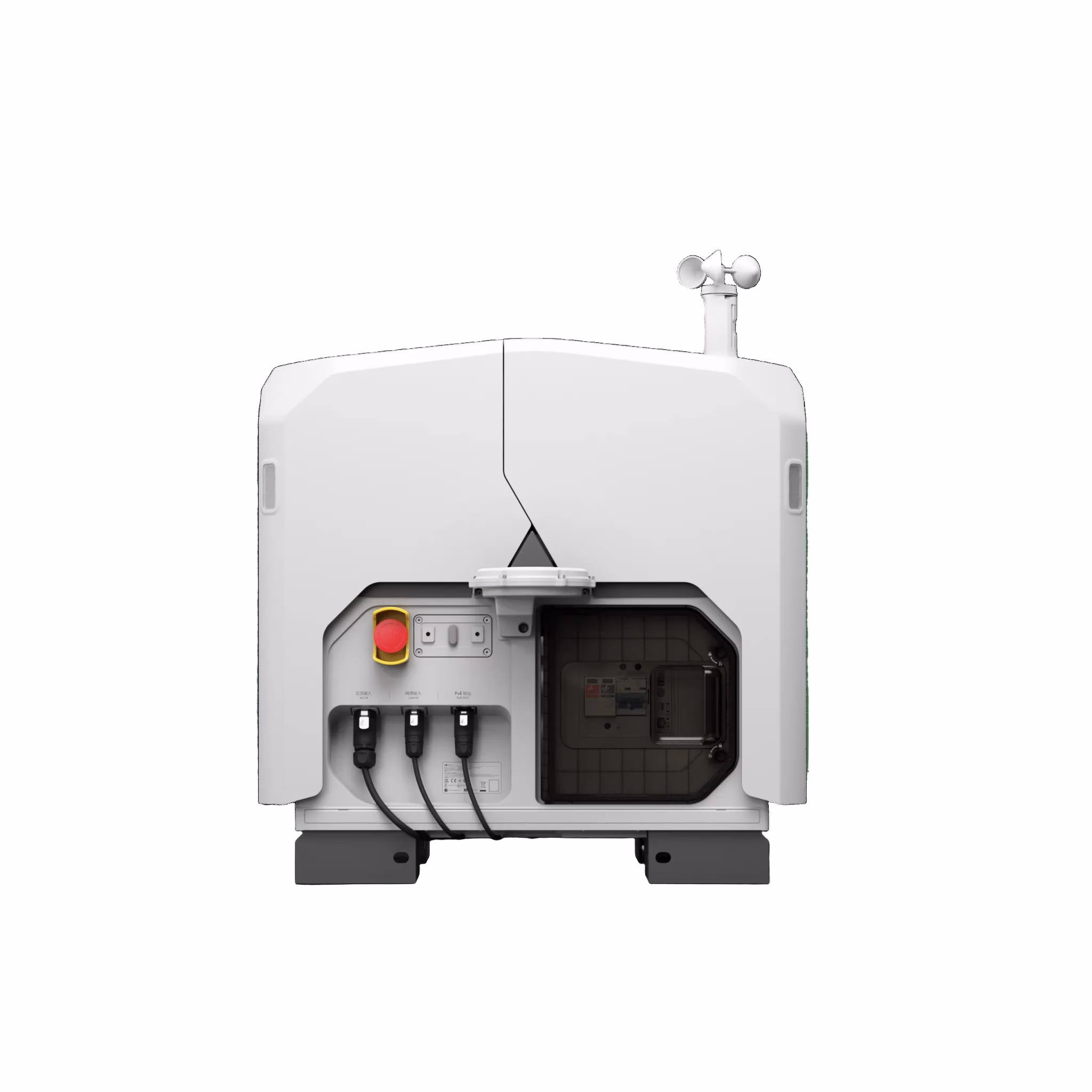

DJI Dock 3
• Dock – General Product Name: DJI Dock 3 Total Weight: 55 kg (without aircraft) The actual product weight may vary due to differences in batch materials and external factors. Dimensions: Dock Cover Opened: 1760×745×485 mm (L×W×H) Dock Cover Closed: 640×745×770 mm (L×W×H) All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm). Input Voltage: 100-240 V (AC), 50/60 Hz Input Power: Max 800 W Operating Temperature: -30° to 50° C (-22° to 122° F) Ingress Protection Rating: IP56 Number of Drones Accommodated: 1 Max Allowable Landing Wind Speed: 12 m/s Max Operating Altitude: 4500 m Receiving Frequency of RTK Base Station Satellite: GPS: L1 C/A, L2, L5 BeiDou: B1l, B2l, B3l, B2a, B2b, B1C GLONASS: F1, F2 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5 Positioning Accuracy of RTK Base Station: Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS)
• Dock – Charging Performance Output Voltage: 35 V DC Charging Time: 27 minutes The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
• Dock – Video Transmission Operating Frequency: 2.400-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. Antenna: Built-in 9 antennas, 2T4R, supports intelligent switching Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); 4 hours Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
• Dock – Network Access Ethernet Access: 10/100/1000Mbps adaptive Ethernet port 4G Access: Requires DJI Cellular Dongle 2 Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
• Dock – Sensor Wind Speed Sensor: Supported Rainfall Sensor: Supported Ambient Temperature Sensor: Supported Water Immersion Sensor: Supported In-Cabin Temperature Sensor: Supported In-Cabin Humidity Sensor: Supported
• Dock – Security Camera (External) Resolution: 1920×1080 Field of View (FOV): 151° Auxiliary Light: Auxiliary White Light
• Dock – Security Camera (Internal) Resolution: 1920×1080 FOV: 151° Auxiliary Light: Auxiliary White Light
• Dock – Lightning Protection AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements Ethernet Port: 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements
• Dock – Supported Software Applications: DJI Enterprise app (used with Android phones for deployment and commissioning) Cloud Platform: FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync DJI Cloud API
• Dock – Expansion Capability Edge Computing: Supports data communication with external switches

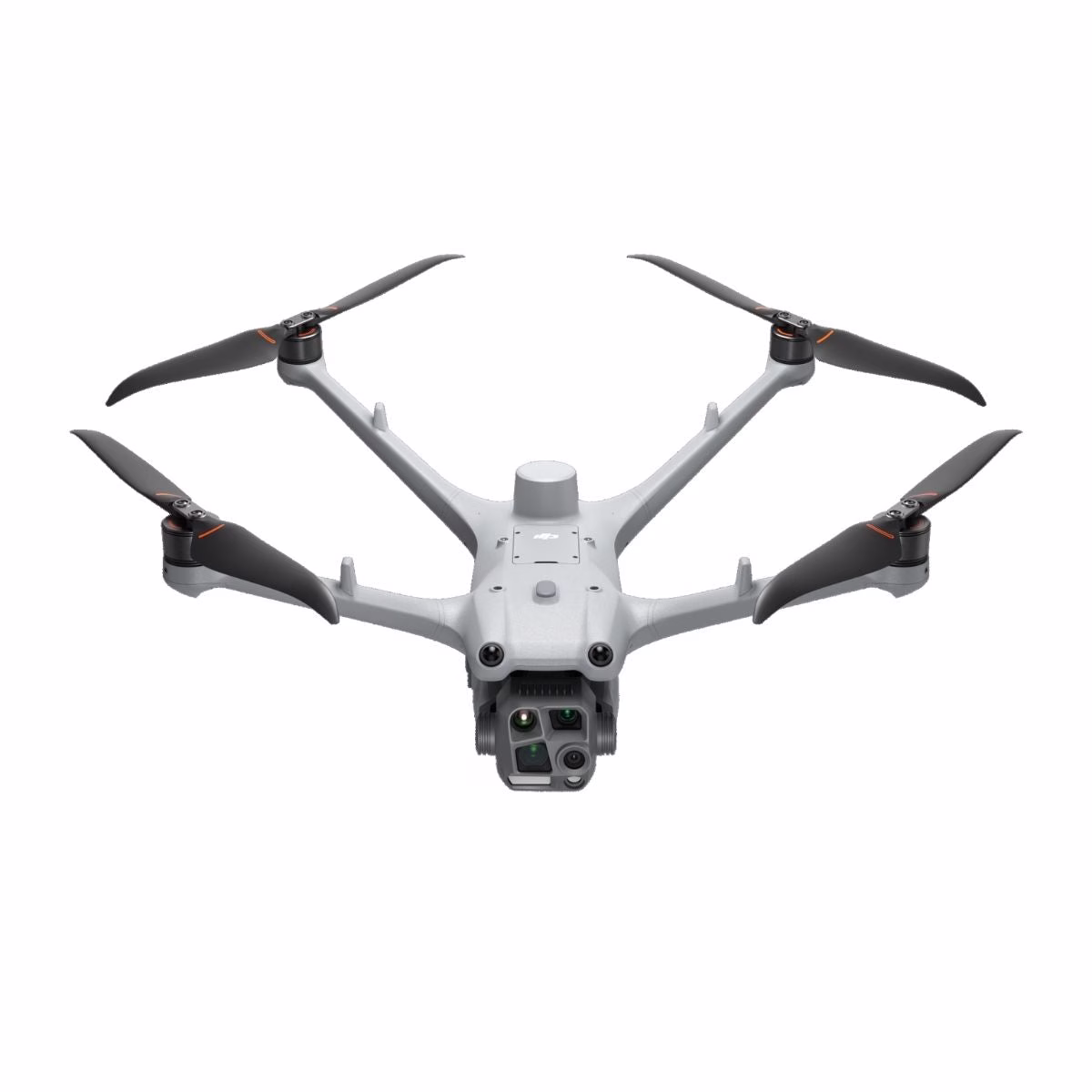

DJI Matrice 4TD
• Model: Matrice 4TD
• Number of Rotors: 4
• Configuration: Drone with Camera
• Edition: Standard
• FAA Registration: Required for Non-Commercial Use
• Features: Camera Included
• Kit Style: Base
• Skill Level: Enterprise
• Color: White
• Maximum Flight Time: 54 minutes
• Takeoff Weight: Up to 4.6 lbs (2.0 kg)
• Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
• Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
• Max Horizontal Speed: Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways
• Max Wind Resistance: 12 m/s
• Max Takeoff Altitude: 21325 ft (6500 m)
• Max Hover Time: 47 minutes
• Max Pitch Angle: 25° (Normal), 30° (Sport)
• Max Flight Distance: 43 km
• Max Angular Velocity: 200°/s
• GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
• Hovering Accuracy: Vertical: ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK) Horizontal: ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Ingress Protection Rating: IP55
• Recommended microSD Cards: U3/Class 10/V30 or above (exFAT format) Lexar 1066x: 64GB to 512GB Kingston Canvas Go! Plus: 64GB to 512GB
• Remote Controller: RC Plus 2 Enterprise
• RC Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Camera Still Resolution: Wide-Angle: 20 MP Medium Tele: 12/48 MP Tele: 12/48 MP
• Video Resolution: 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
• Image Sensor: Wide: 1/1.3″ CMOS, 48 MP Medium Tele: 1/1.3″ CMOS, 48 MP Tele: 1/1.5″ CMOS, 48 MP
• Lens: Wide: 82° FOV, 24 mm, f/1.7, Focus: 1 m-∞ Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m-∞ Tele: 15° FOV, 168 mm, f/2.8, Focus: 3 m-∞
• Digital Zoom: Tele Camera: 16x (112x hybrid)
• ISO Range: Up to 409600 (Tele: 819200)
• Shutter Speed: 2 – 1/8000 s
• Still Photo Modes: Single, Timed, Smart Capture, Panorama
• Photo Format: JPEG
• Video Format: MP4 (H.264)
• Max Video Bitrate: H.264: 60 Mbps, H.265: 40 Mbps
• File System: exFAT
• Gimbal: 3-axis mechanical (tilt, roll, pan) Controllable Tilt: -90° to +90° Angular Vibration: ±0.005°
• Sensing System: Omnidirectional binocular vision + 3D infrared
• Obstacle Detection: Forward/Backward: 0.5-20 m Lateral: 0.5-16 m Upward: 0.5-20 m Downward: 0.5-16 m
• Video Transmission: DJI O4+ Enterprise
• Live View: 720p/30fps or 1080p/30fps
• Frequencies: 2.4GHz / 5.1GHz / 5.8GHz
• Max Transmission Distance: FCC: 25 km CE/SRRC/MIC: 12 km With interference: 1.5-25 km
• Latency: 100 ms (aircraft to dock, dependent on network)
• Battery: Capacity: 6768 mAh Voltage: 22.14 V Type: LiNiMnCoO2 Energy: 149.9 Wh Quantity: 1
• Dimensions: 37.77 × 41.62 × 21.25 cm (no propellers)
• Weight: Approx. 1.85 kg (4.07 lbs)
