WISPR MicaSense RedEdge-P

Description

MicaSense RedEdge-P: High-Resolution Panchromatic Multispectral Payload for Precision Agriculture and Vegetation Mapping on the SkyScout Series

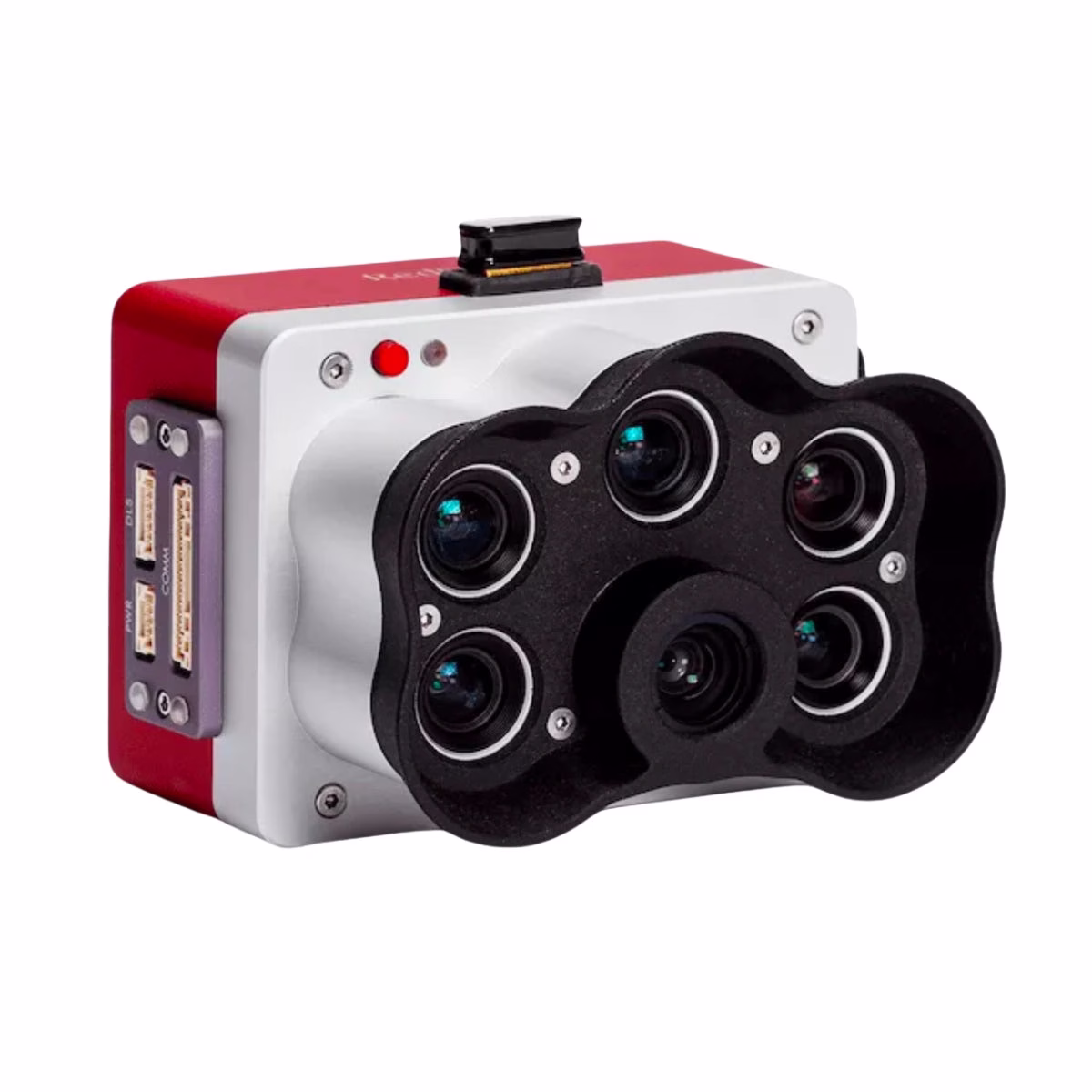

The MicaSense RedEdge-P is a professional single-sensor multispectral payload built by AgEagle in the USA, designed for drone-based precision agriculture, plant health mapping, and vegetation analysis on the WISPR SkyScout Series.
It captures five spectral bands simultaneously across the blue through near-infrared spectrum, paired with a high-resolution panchromatic band that enables pan-sharpened output resolutions of 2 cm / 0.8 in per pixel at 60 m — twice the ground resolution of the industry-standard RedEdge-MX.
Purpose-built optics, narrowband scientific-grade filters, and a rigorous factory calibration process give field operators a repeatable, calibrated multispectral tool for season-long crop canopy analysis at all growth stages.
The RedEdge-P captures 1.6 MP per multispectral band at a ground sample distance of 7.7 cm per pixel at 120 m / 400 ft AGL, with the 5.1 MP panchromatic band achieving 3.98 cm per pixel at the same altitude. A global shutter aligned with all bands eliminates motion distortion during flight, while the included DLS 2 light sensor and calibrated reflectance panel provide consistent radiometric calibration across changing light conditions.
CFexpress storage supports up to 3 captures per second raw DNG, enabling faster flight speeds and reducing the time required to cover large survey areas without returning to the field computer between flights.
MicaSense RedEdge-P Core Features and Advantages
• Panchromatic band: pan-sharpened output reaches 2 cm / 0.8 in per pixel at 60 m.
• Five spectral bands: blue, green, red, red edge, and near-IR captured simultaneously per flight.
• Global shutter: all bands capture simultaneously for distortion-free, pixel-aligned imagery.
• DLS 2 light sensor: continuous ambient light monitoring ensures consistent radiometric data.
• Calibrated reflectance panel: ground-based calibration baseline for repeatable data quality.
• Fast capture rate: up to 3 raw DNG images per second supports efficient large-area coverage.
• CFexpress storage: removable card enables immediate multi-flight turnaround in the field.
• 5.1 MP panchromatic band: 3.98 cm GSD at 120 m / 400 ft AGL for high-detail mapping output.
• Multiple index outputs: generates RGB, NDVI, NDRE, CIR, and other vegetation composites.
• American-made: designed and built in the USA by AgEagle for professional field deployment.
The MicaSense RedEdge-P exists for operators who need a reliable, calibrated multispectral sensor that produces actionable vegetation data flight after flight without requiring a field computer between runs.
Its combination of five spectral bands, a high-resolution panchromatic channel, and CFexpress-based removable storage makes it a practical primary sensor for plant health mapping, disease identification, weed detection, phenotyping, and advanced crop scouting programs on the SkyScout Series.

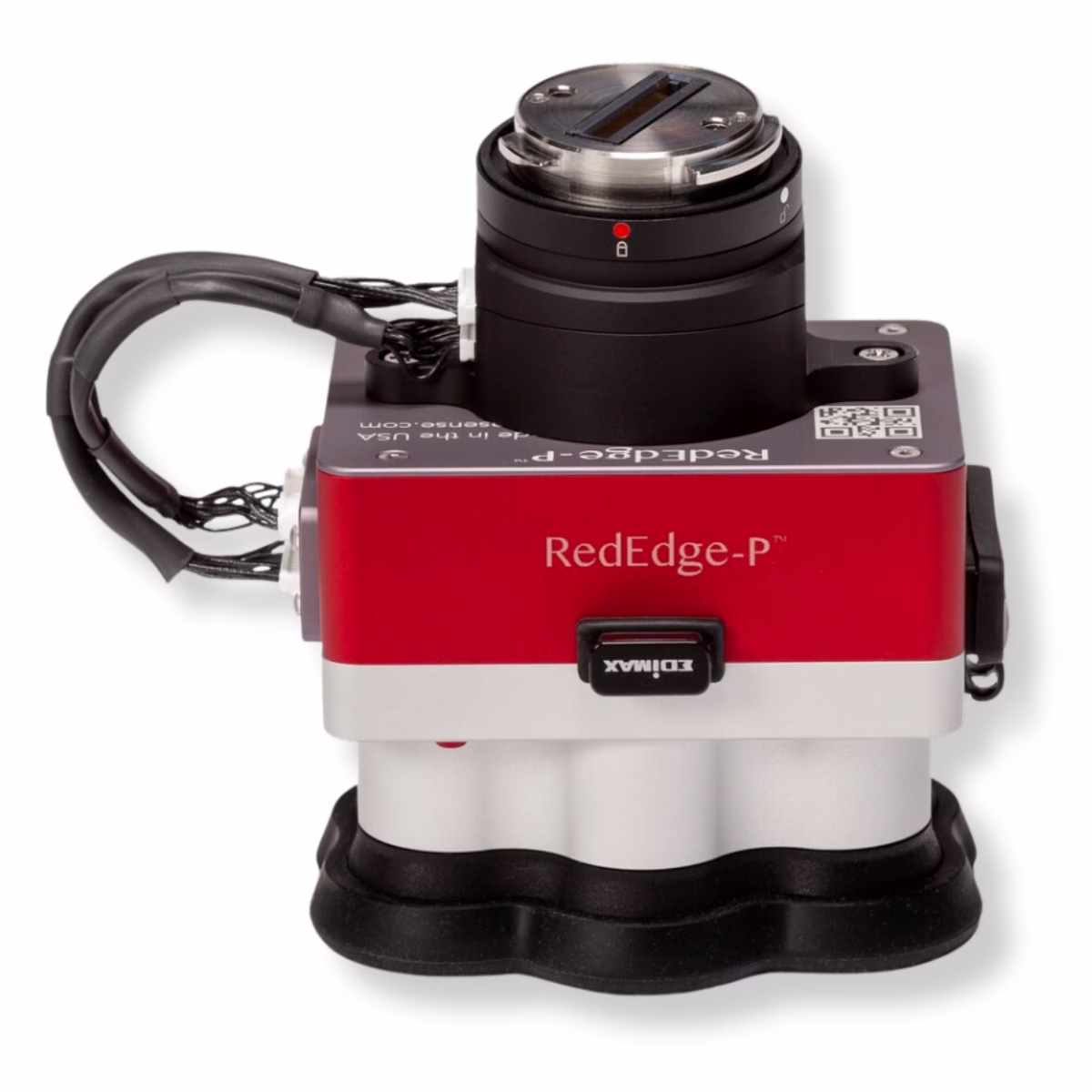

DSLRPros stocks the MicaSense RedEdge-P for the WISPR SkyScout Series, including the full kit with DLS 2 light sensor, calibrated reflectance panel, CFexpress card reader, hard carrying case, and all supporting hardware.
Our team can help you determine whether the single RedEdge-P or the dual configuration best fits your program requirements. Order the MicaSense RedEdge-P at DSLRPros today.

General Specifications
• Weight: 350 g (12.3 oz.) with RedEdge-P and DLS 2
• Dimensions: 8.9 × 7.0 × 6.7 cm (3.5 × 2.8 × 2.6 in)
• RGB output: 5.1 MP (global shutter, aligned with all bands)
• Sensor resolution: 1456 × 1088 (1.6 MP per multispectral band)
• Sensor resolution: 2464 × 2056 (5.1 MP panchromatic band)
• Ground sample distance: 7.7 cm per pixel at 120 m AGL (multispectral)
• Ground sample distance: 3.98 cm per pixel at 120 m AGL (panchromatic)
• Field of view (multispectral): 50° HFOV × 38° VFOV
• Field of view (panchromatic): 44° HFOV × 38° VFOV
• External power: 7.0–25.2 V
• Power input: 5.5 W standby, 7.0 W average, 10 W peak
• IP rating: IP4X
• Capture rate: Up to 3 raw DNG captures per second
• Storage: CFexpress card
Spectral Bands
• Blue: 475 nm center, 32 nm bandwidth
• Green: 560 nm center, 27 nm bandwidth
• Red: 668 nm center, 14 nm bandwidth
• Red Edge: 717 nm center, 12 nm bandwidth
• Near-IR: 842 nm center, 57 nm bandwidth
Interfaces
• Three configurable GPIO ports (trigger input, PPS input, PPS output, top-of-frame signals)
• Host virtual button
• USB 2.0 port for Wi-Fi
• Serial interface
• 10/100/1000 Ethernet
• CFexpress storage support
In the Box

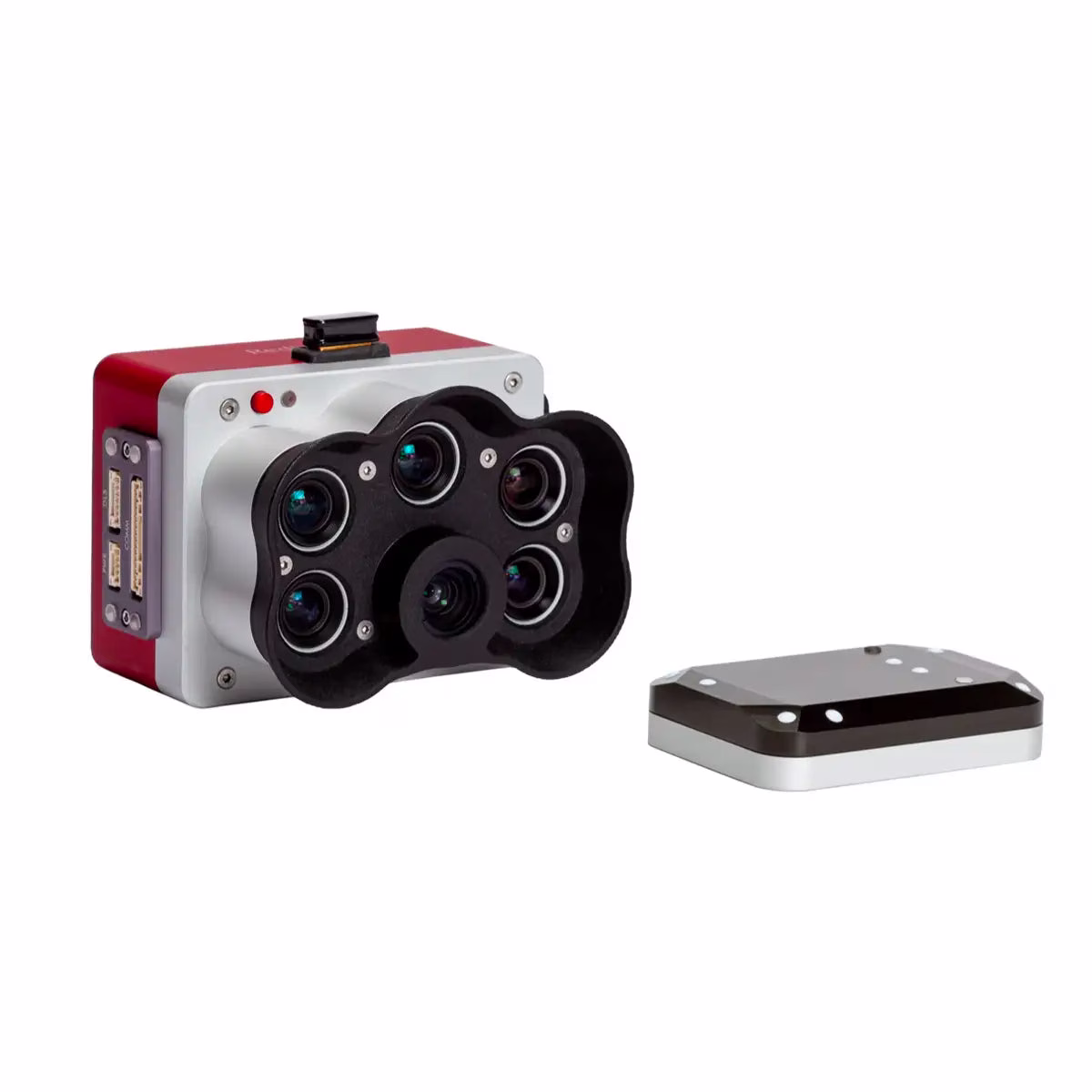

• RedEdge-P sensor
• Lens cover
• Calibrated reflectance panel
• DLS 2 light sensor with integrated GPS
• RedEdge-P and DLS 2 cables
• Mounting screws
• Hard carrying case
• CFexpress card reader
